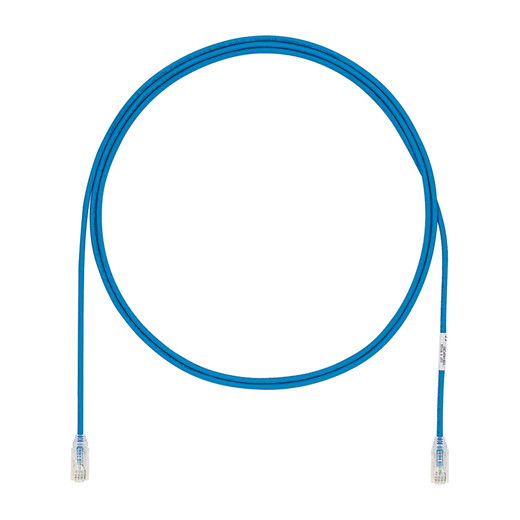

Panduit UTP28X8INOR Cat6A 28AWG UTP Patch Cord

High-density data center and network closet deployments demand cables that deliver 10GBASE-T performance without choking airflow or creating management nightmares. The Panduit TX6A-28 UTP28X8INOR solves both problems with a 28AWG slim-profile design that's 36% smaller in diameter than standard 24AWG patch cords, paired with an 8-inch length optimized for patch panel to top-of-rack switch runs. Every cord ships with RapidID barcodes pre-installed, eliminating manual labeling and enabling instant port mapping via Panduit's asset management software—critical when you're managing hundreds of connections across virtualized server environments.

Key Features

28AWG solid copper conductors deliver 10GBASE-T performance in a 0.185" diameter form factor for improved airflow and bend radius

Patented tangle-free latch design prevents snags during installation and ensures fast release in densely populated patch fields

RapidID barcode integration provides instant asset tracking and port mapping without manual labeling

CM/LSZH jacket rating meets fire safety requirements for data centers and plenum-adjacent installations

Supports IEEE 802.3af/at PoE (48 cables per bundle) and 802.3bt Type 3/4 PoE (24 cables per bundle) for powered device deployments

100% factory tested for wire map, NEXT, and return loss—ships with performance verification

8-inch length eliminates cable slack in short-run patch panel and switch interconnects

The UTP28X8INOR uses a centered de-embedded plug design with an integral pair manager that maintains consistent twist geometry right up to the termination point, a critical factor in achieving Cat6A channel performance at 500 MHz. Panduit tests every cord for near-end crosstalk (NEXT) and return loss before it leaves the factory, so you're not gambling on field performance when you're provisioning a 10G backbone or aggregating virtualized server traffic. The 28AWG solid conductors support the same transmission distances as 24AWG cords (100 meters for 10GBASE-T) while cutting cable bundle diameter by more than a third—on a 48U rack with dual switches, that difference translates to measurably better airflow and lower cooling costs. The orange jacket provides instant visual identification in mixed-network environments where color coding separates production, storage, and management VLANs.

Data center operators deploying server virtualization or I/O consolidation architectures need cords that don't fight back when you're making adds, moves, and changes under time pressure. The tangle-free latch design eliminates the snagging and binding that plagues standard RJ45 boots in high-density patch fields—you can pull a cord from a 48-port panel without disturbing adjacent connections, and the latch releases cleanly every time without requiring fingernail leverage or a screwdriver. The RapidID barcode ties into Panduit's asset management ecosystem, so when you're documenting a new VLAN or troubleshooting a failed link, you scan the cord instead of squinting at handwritten labels or chasing cables through a bundle. The 8-inch length is purpose-built for the patch panel-to-switch run in modern racks where switches mount directly above or below the panel—no 3-foot cord coiled up and zip-tied behind the cabinet, just a clean, direct connection that improves airflow and simplifies troubleshooting.

The UTP28X8INOR meets ANSI/TIA-1096-A (formerly FCC Part 68) and IEC 60603-7 standards for modular plug performance, and it's fully compliant with IEEE 802.3af, 802.3at, and 802.3bt PoE standards when bundled per spec (48 cords for Type 1/2, 24 cords for Type 3/4). That means you can use these cords to provision PoE++ access points, IP cameras, or VoIP phones without derating or worrying about thermal limits—Panduit engineers the pair geometry and jacket materials to handle the heat dissipation. For integrators managing multi-vendor data centers or completing TIA-942 builds, the TX6A-28 line delivers the performance and documentation you need to close out inspections and hand off a network that actually works at the rated speed on day one.
