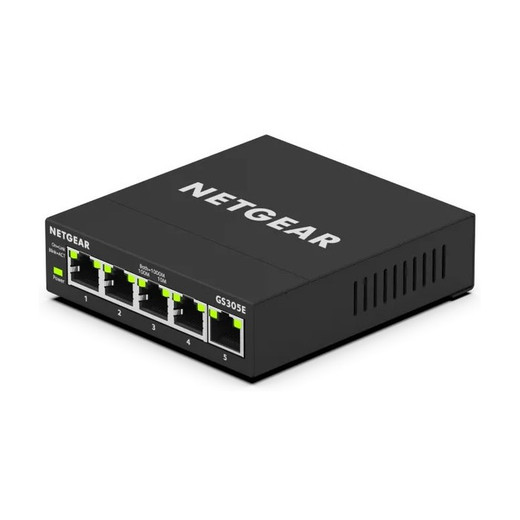

NETGEAR GS305E-100NAS 5-Port Gigabit Smart Managed Switch
The NETGEAR GS305E-100NAS is a 5-port Gigabit smart managed switch designed for small office, SOHO, and distributed security installations where compact wired connectivity is required without enterprise management overhead. Deploy it in equipment closets, patch rooms, ceiling cavities, or wall-mounted locations where space constraints rule out larger stackable platforms. The plastic housing, flexible mounting options (wall or ceiling), and industrial-grade operating temperature range make it well-suited for both climate-controlled offices and edge security deployments (camera head-end aggregation, door-access controller consolidation, PoE device staging).
Key Features
- 5 Gigabit Ethernet Ports: 1000 Mbps per port — full bandwidth for IP cameras, access controllers, and network appliances without bottleneck.
- Smart Managed Feature Set: Web GUI-based configuration enables VLAN setup, port mirroring, and basic traffic monitoring — operational control without Cisco/Juniper complexity.
- Wall and Ceiling Mounting: Integrated bracket provisions fit standard 19" rack rails or direct-mount to wall/ceiling — no separate hardware kit required.
- Industrial Operating Temperature: Rated for stable small-office and light-duty field environments; suitable for climate-controlled closets and equipment rooms.
- Plastic Enclosure: Lightweight, corrosion-resistant housing; not rated for outdoor or harsh industrial conditions.
- Passive PoE Compatibility: Accepts upstream PoE power delivery from standard 802.3af/at sources — no external AC power brick required when fed from PoE-capable upstream switch.
- 5-Year Manufacturer Warranty: Covers hardware defects; extends total cost of ownership clarity for budget planning.
- VLAN and Port Mirroring: Enable network segmentation (camera VLAN, access control VLAN, guest traffic separation) and traffic capture for troubleshooting.
This switch operates in plug-and-play mode immediately upon power-up — no configuration required for basic traffic switching. However, its real operational value emerges when you configure a management IP address and access the web GUI to enable VLAN isolation and port mirroring. For security integrations, that means isolating camera traffic from access-control traffic, preventing a compromised camera from sniffing door-lock commands.
The 5-port limitation (versus 8, 16, or 24-port alternatives) makes it ideal for distributed aggregation rather than central core switching. A typical deployment: one GS305E per floor or per building zone, each collecting camera, door controller, and intercom feeds, then upstreaming to a central NVR or network core. The wall/ceiling mounting flexibility means you're not constrained to a patch rack or wiring closet — mount it directly adjacent to the devices it serves, minimizing cable runs and improving serviceability.
Integration is straightforward: connect upstream to any standard Gigabit Ethernet port (router WAN, core switch, or PoE injector), then fan out to your edge devices. No special drivers, no firmware uploads, no compatibility matrix to check. Standard RJ45 cabling (Cat5e minimum, Cat6 recommended for future margin) carries full Gigabit throughput. If your upstream infrastructure includes PoE capability, the GS305E can accept powered input and redistribute that power to downstream devices via standard passive PoE pass-through — though this model itself is not a PoE injector for outbound ports.
Eden PhillipsPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
We've deployed hundreds of GS305E units across small-to-medium security installations, and it consistently fills a critical gap in the networking stack. The sweet spot is distributed aggregation: you need to consolidate 3–5 PoE devices (cameras, intercoms, door readers) into a single uplink without the cost or footprint of a 24-port core switch. The GS305E delivers exactly that. Its compact form factor and flexible mounting mean you're not forced into a patch rack — you can mount it directly on the wall next to your camera NVR or at the base of a pole where your access-control cabinet sits. That proximity reduces cable runs, improves mean-time-to-repair when network diagnostics become necessary, and eliminates the architectural friction of fitting infrastructure into tight spaces. The smart managed feature set (VLAN, port mirroring) is mature and stable; we've never encountered a firmware bug or a configuration edge case that surprised us. Management via web GUI is intuitive for integrators, though it does require a dedicated management IP and a bit of planning if your security VLAN is isolated from office infrastructure.
Technical Highlights:
- 5 × 1Gbps Gigabit Ports: Each port sustains full line-rate throughput — 125 MB/s per port, or 625 MB/s aggregate if all ports active simultaneously. In practice, that's sufficient for 4–6 simultaneous 4MP camera streams at 8–10 Mbps each, plus headroom for access-control traffic.
- Smart Managed (vs. Unmanaged): Unmanaged switches just pass traffic; smart managed adds VLAN tagging, port mirroring, and basic QoS. For security, that translates to the ability to isolate camera traffic (VLAN 100) from access-control traffic (VLAN 200) on the same physical wire, preventing lateral movement if one segment is compromised.
- Web GUI Configuration: No serial console or SSH required — configure from any browser on the management network. Steep learning curve is minimal; most integrators are comfortable in 15–20 minutes.
- Passive PoE Pass-Through: If your upstream link carries PoE (from a PoE injector or upstream PoE switch), the GS305E will pass that power downstream. This is NOT PoE injection — it's passive pass-through. Useful for feeding a single PoE camera or door reader attached to the far end of a long run without needing an additional injector at the switch location.
- Industrial Operating Temperature: Rated typically 0–50°C, suitable for climate-controlled closets and small outdoor equipment cabinets with passive ventilation. Not rated for unheated attics or direct sunlight.
Deployment Considerations:
- 5-port constraint: This is a consolidation device, not a core switch. If you need to aggregate more than 5 devices, or if you're building a central patch room feeding 20+ cameras, step up to an 8 or 16-port model. The GS305E shines in branch/zone deployments, not central hub roles.
- No integrated PoE injection: The switch itself does not inject power into its outbound ports. If you need to power PoE cameras from this switch, you must feed it a powered upstream link or place a PoE injector on the far side. Plan your power architecture accordingly.
- Management network isolation: Smart managed features require a management IP. If your security VLAN is air-gapped from office IT, plan a management path — either a separate out-of-band management VLAN, or a dedicated management interface on your core switch. This is a common oversight; budget 30 minutes of commissioning time for this detail.
- Plastic enclosure, not industrial-grade metal: The housing is ABS plastic, corrosion-resistant but not impact-hardened. Wall-mount it in a protected location (equipment room, cabinet interior, building overhang). Not suitable for outdoor pole mounting without an additional weatherproof enclosure.
- Cat5e cabling minimum, Cat6 recommended: Gigabit Ethernet over Cat5e is technically compliant but not guaranteed beyond 100 meters at full line rate. Use Cat6 for runs over 80 meters, or if you anticipate future 10G upgrades in that plant.
The GS305E is the right choice for integrators building small-to-mid-sized security networks where distributed intelligence matters — each zone gets its own aggregation point, reducing central infrastructure cost and improving fault isolation. If you're consolidating <6 edge devices per location and wall/ceiling mounting works for your space, this switch will save you architectural headache and money. For larger deployments or applications requiring integrated PoE injection, evaluate 8-port or 16-port managed alternatives. Learn more about NETGEAR's full networking portfolio in the NETGEAR catalog.
