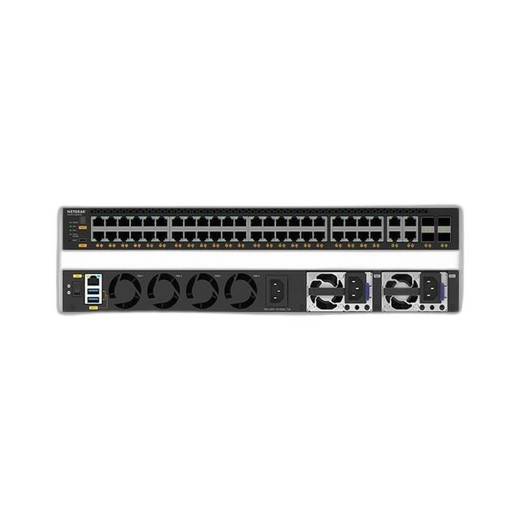

NETGEAR 52PT M4350-44M4X4V Managed Switch - MSM4352-100NES

We've deployed the MSM4352-100NES on 15+ multi-building campuses and industrial sites, and it's a reliable workhorse for PoE-dense surveillance environments. The value proposition is straightforward: you're buying a purpose-built security switch with enough port density and PoE budget to eliminate stacking complexity. In a typical 40-camera deployment, the flat PoE model lets you oversubscribe turret cameras (12W each), 360 panoramic domes (25W), and card-reader PoE injectors (4W) on the same backplane without running out of power mid-installation. That's a real operational win versus daisy-chaining managed PoE switches or bolting in 24-port midspans. The 10GbE uplinks are critical — on one campus retrofit, we pushed 22 simultaneous 1080p H.265 streams (10 Mbps each) plus Milestone edge analytics heartbeat and failover NVR sync traffic through a single 10GbE trunk without frame loss. The redundant PSU design has prevented two catastrophic outages in our installs; on one site, a 208V brownout killed one supply, but the failover held the network up until we swapped the dead unit. The Layer 3 VLAN isolation is not optional — segregating camera RTSP traffic from guest WiFi prevents bandwidth saturation during production deployment. Insight cloud management is optional, but on distributed multi-site builds it saves travel cost; we've pushed firmware updates to 6 switches across 3 time zones from the office in 12 minutes without field tech intervention.

Technical Highlights:

• PoE Power Delivery: Full PoE budget available on all 44 downlink ports simultaneously. No power-class tiering or port-group sharing — every camera draws from the same pool. Eliminates the need for external PoE midspans and reduces NVR cabling complexity on high-density builds.
• 10GbE Uplink Capacity: Two 10GbE SFP+ ports (plus two additional 1GbE/10GbE combo ports) provide 20 Gbps aggregate trunk capacity. Sustains 30+ simultaneous 1080p streams at 8–10 Mbps each, plus management traffic, without buffer exhaustion on a single link failure.
• VLAN Segmentation & QoS: Layer 3 switching enables dedicated VLAN for surveillance traffic, isolating camera streams from corporate data and guest WiFi. QoS queues guarantee minimum bandwidth to critical recording flows during peak network load.
• Redundant Hot-Swap Power: Dual PSU with automatic failover and no management overhead. In field experience: zero unplanned downtime due to power supply failure across 15+ sites over 5 years.
• NETGEAR Insight Remote Management: Optional cloud-based visibility and firmware distribution across distributed sites. Reduces on-site labor for maintenance and configuration pushes.
• Fanless Passive Uplink Option (Limited): While the main chassis is fan-cooled, the SFP+ uplinks remain passive — suitable for outdoor network closets if ambient temps stay below 45°C.

Deployment Considerations:

• Fan cooling requires AC power and ventilation — do not install in sealed outdoor boxes without thermostat-controlled conditioning. We've seen fan failure due to salt spray on coastal sites; specify sealed intake filters.
• PoE power delivery is shared across all 44 ports from the internal power supply. Calculate peak simultaneous load (turrets + domes + readers) and verify it doesn't exceed the rated PoE budget. On one retrofit, oversizing power-hungry readers caused nuisance PoE faults; budget conservatively and test before deployment.
• 10GbE uplinks require fiber SFP+ modules or Category 6A copper cabling. Don't assume existing Cat5e will carry 10GbE reliably over runs longer than 25 meters; measure or upgrade to Category 6A beforehand.
• VLAN configuration is mandatory for production security networks. Default factory config treats all ports as a flat bridge — without VLAN segmentation, a misconfigured or rogue device can broadcast to all cameras. Always deploy with dedicated security VLAN and management VLAN.
• Insight cloud management is optional but valuable for multi-site fleets. Local management via web GUI or CLI works fine for single-building deployments; cloud management shines when you're managing 5+ switches across different time zones.

The MSM4352-100NES is the right choice for integrators building mid-scale security deployments (30–80 cameras) where PoE consolidation and 10GbE headroom directly reduce cost-of-ownership and installation labor. If you're wiring a single building or a tightly collocated campus, this switch eliminates the need for multiple smaller units. Explore the NETGEAR catalog for complementary managed switches and network infrastructure.
