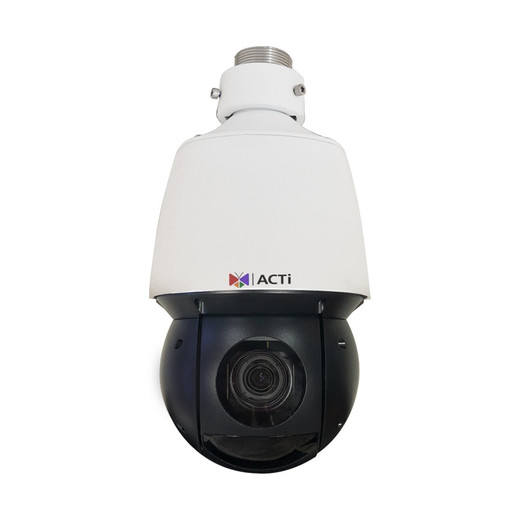

ACTi Z952 4MP Outdoor Speed Dome Camera
Overview
The ACTi Z952 is a 4MP motorized speed dome built for outdoor perimeter and campus surveillance where you need coverage across large areas without sacrificing detail. The Z952 combines a 25x motorized zoom lens (4.8–120mm), IP66 weatherproofing, and IK10 impact resistance into a single compact dome—designed to withstand harsh environments while delivering forensic-grade image quality. This camera solves the classic outdoor surveillance problem: wide-area monitoring with the ability to zoom into distant subjects without interpolation artifacts. Deploy it on building perimeters, loading docks, parking structures, or multi-building campuses where a single fixed camera cannot cover the required distance.
Key Performance Specs
Optical reach and zoom: The 4.8–120mm motorized lens delivers 25x optical zoom with 52.2° to 2.74° horizontal field of view, meaning you capture wide context one moment and license-plate-grade detail the next—all without pixel loss. This is the spec that justifies speed dome deployment over fixed cameras in large outdoor spaces.
Image quality in mixed lighting: WDR (Wide Dynamic Range) balances exposure in scenes with both bright sky and deep shadow—critical on building facades, parking lot entrances, and sun-blasted loading docks. Infrared night vision with adaptive IR lets you maintain usable frames after dark without external lighting.
Encoding efficiency: Dual H.265/H.264 codec support cuts storage footprint roughly in half with H.265 compared to H.264 when recording 24/7 across multiple cameras. Choose H.264 for older VMS platforms or H.265 for storage-constrained installations.
Durability and power: IP66 rating blocks dust and direct rain spray; IK10 impact rating survives vandalism attempts. PoE (802.3af) power keeps installation simple—no separate 12V supply runs required.
Integration Considerations
The Z952 integrates via standard IP protocols (ONVIF) into any ONVIF-compatible video management system. Audio input and MicroSD recording support local edge storage for backup. Adaptive 2D/3D noise reduction maintains detail while reducing bitrate in grainy low-light scenes.
PoE power draw is within 802.3af budget, but confirm your switch has sufficient available power if you are deploying multiple speed domes on the same network segment. The motorized pan-tilt function and 25x zoom demand predictable network latency—deploy on a dedicated VLAN if your network is congested.
