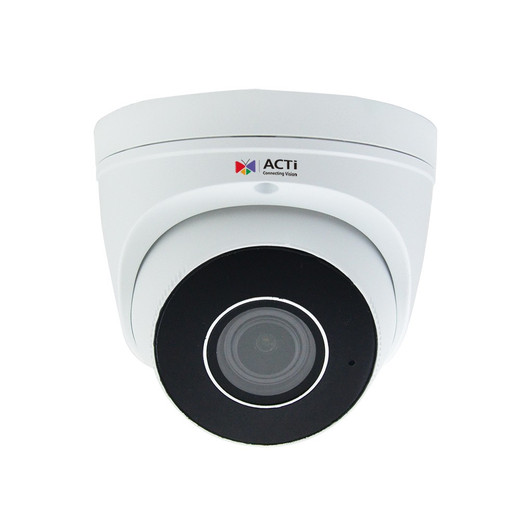

ACTi Z87 4MP Outdoor Zoom Dome Camera

ACTi Z87 4MP Outdoor Zoom Dome Camera

Overview

The ACTi Z87 is a 4MP outdoor dome camera built for mixed-lighting perimeters, retail facades, and industrial yards where you need motorized zoom without repositioning hardware. The 2.8–12mm lens delivers a 4.3x optical zoom range—wide coverage at 2.8mm (99.8° horizontal), tighter framing at 12mm (30.7°)—letting operators capture either situational context or zoomed-in detail from a single fixed mount. IP67 rating means dust and temporary submersion won't disable it; it's built for rooftop, exterior soffit, and loading dock duty. The Z87 deploys directly to standard PoE (802.3af) switches, eliminating separate power runs and simplifying retrofit installations.

Key Specs and Deployment Fit

Imaging and Optics: 4MP resolution paired with the motorized zoom lens captures fine enough detail for license-plate or facial recognition at close range, while the zoom range adapts to variable scene depth without camera reposition. Wide Dynamic Range (WDR) handles back-lit entrances and mixed sun/shadow zones without halo artifacts. Adaptive IR with a built-in array extends night coverage into complete darkness—no separate illuminator needed for low-light perimeters.

Compression and Bandwidth: H.265 reduces file size roughly 40–50% versus H.264, meaningful on continuous outdoor recording where storage scales with camera count. H.264 fallback ensures compatibility with older NVRs or VMS platforms that don't yet support H.265.

Audio and Situational Awareness: Built-in microphone adds event verification—voices, vehicle sounds, or alarms captured alongside video. Useful for loading docks, service gates, and facility entry points.

Storage and MicroSD: MicroSDHC card slot enables local clip backup or failsafe recording if the network link drops, protecting high-value evidence during connectivity gaps.

Environmental Durability

IP67 rating confirms sealed construction against rain, dust, and brief submersion—suitable for rooftop, exterior wall, and wet-environment mounting. Operating range and thermal management are built for North American and temperate climates. The compact dome form factor blends into modern facility aesthetics while the housing shields optics from vandalism and environmental debris.

Integration and Power

PoE (802.3af) draws under 13W, so standard enterprise switch ports power the camera without PoE+ upgrades. Auto-focus simplifies initial setup; focus once during installation, then lock. Standard ONVIF Profile S compatibility ensures connectivity to Milestone, Genetec, Axis Camera Station, and most managed VMS platforms without proprietary bridges.
