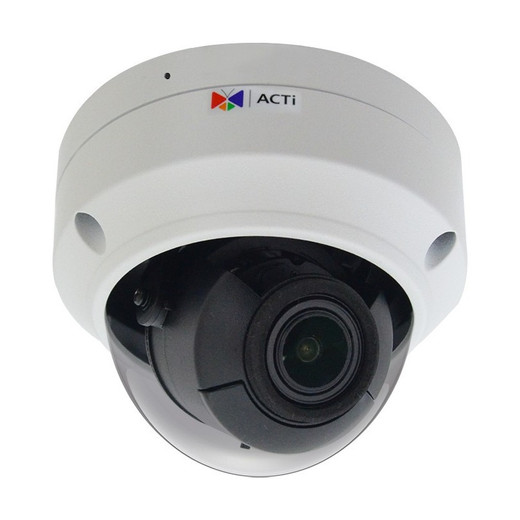

ACTi Z86 4MP Outdoor Zoom Dome Camera
ACTi Z86 4MP Outdoor Zoom Dome Camera Overview The ACTi Z86 is a 4MP outdoor zoom dome built for perimeter surveillance, parking lots, and facility mo…
ACTi Z86 4MP Outdoor Zoom Dome Camera
$1,137.00
$942.99
Your recommended setup
Review items below — quantities update pricing automatically.
Item
Qty
Status
Price
Optional Add-Ons recommended
Services optional
Bundle Summary
Bundle Subtotal:
$0.00
Optional Add-Ons:
$0.00
Services:
$0.00
Total:
$0.00
Overview
SKU:
Z86
Condition:
New
No Bots, Just Experts
Questions about this product? Free pre-sales support from a senior specialist — product questions, compatibility checks, BOM quotes, price confirmation — typically answered within one business day. Need camera placement or system design work? Engineering time is $175 per hour (qty 1 = 1 hour). Hardware buyers get up to one hour ($175) credited back on their order.
Send Laura a Message
Senior Specialist · Typically replies within 1 business day
Description
ACTi Z86 4MP Outdoor Zoom Dome Camera
Overview
The ACTi Z86 is a 4MP outdoor zoom dome built for perimeter surveillance, parking lots, and facility monitoring where you need both wide overview and zoom-in detail from a single camera position. The motorized 2.8–12mm lens (4.3x zoom, f1.6) lets you adjust framing remotely without climbing a ladder or accessing the camera directly — critical when mounting on tall poles or building edges. IP67 sealing blocks dust and direct rain; IK10 impact rating (metal casing) resists vandalism and physical stress. H.265 compression cuts storage roughly in half versus H.264, a real factor when running 24/7 on modest bandwidth. IR night vision extends usable monitoring into complete darkness. PoE (802.3af, under 13W) means one cable handles power and video — no separate supply runs.
Compatibility
The Z86 integrates into any standard IP surveillance system supporting ONVIF or vendor-specific management platforms. Works with enterprise NVRs, VMS software (Milestone, Genetec, AXIS Camera Station), and IP-based recording appliances. Network switches with 802.3af PoE ports power the camera directly; no additional PoE injectors needed if your switch has budget. The built-in microphone integrates with systems supporting audio capture over IP. MicroSDHC card slot enables local failover recording if network outage occurs.
Installation Notes
Mount on ceilings, walls, or pendant fixtures using the dome base — verify mounting surface can support 1.55 lbs plus fixture hardware. Network cable run should not exceed 328 feet (100m) for standard Cat5e/Cat6 and 802.3af PoE. Position dome to minimize direct sun into the lens during peak hours to avoid WDR overload. Auto-focus feature activates during installation for quick commissioning; lock focus once dialed in. Operating temperature range –40°C to 60°C (–40°F to 140°F) — confirm installation site falls within this window, especially for cold climates without heated housings.
What's in the Box
- 1x ACTi Z86 dome camera
- 1x mounting base and hardware
- 1x installation manual (digital or print per order)
Specifications
Resolution:
4 MP
Ip Rating:
IP67
Ik Rating:
IK10
Poe Power:
PoE (802.3af)
WDR:
WDR
Ir Lowlight:
IR
Compression:
H.265; H.264
Audio:
Built-in microphone
Lens Focal Length:
2.8-12 mm
Brand:
ACTi
MPN:
Z86
Type:
4MP Outdoor Zoom Dome Camera
Connectivity:
PoE
Power:
PoE
ip_rating:
IP67
ik_rating:
IK10
poe_power:
PoE (802.3af)
ir_lowlight:
IR
lens_focal_length:
2.8-12 mm
Compatible With:
comprehensive
PoE:
PoE
Lens:
Motorized varifocal 2.8–12mm (f1.6, 4.3x zoom)
Mount_Type:
Ceiling; Wall; Pendant
Form_Factor:
Dome
Max_FPS:
30 fps @ 1440p
Storage:
MicroSDHC card slot
Operating_Temp:
-40°C to 60°C (-40°F to 140°F)
VMS_Compatibility:
ONVIF-compatible; vendor-specific integrations
PoE_Wattage:
Under 13W
