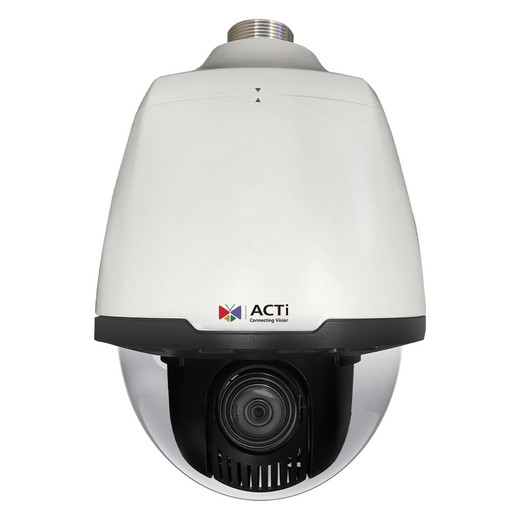

ACTi Z956 4MP Outdoor Speed Dome Camera

ACTi Z956 4MP Outdoor Speed Dome Camera

Overview

The ACTi Z956 is a 4MP outdoor speed dome engineered for perimeter monitoring, parking lots, and high-traffic commercial zones where you need robust zoom capability and environmental durability in a single compact unit. The Z956 combines a 33x motorized zoom lens (4.5–148.5mm) with H.265 codec efficiency, meaning you can capture both wide-area context and close-detail evidence without burning bandwidth on every frame. IP67 and IK10 ratings make this camera suitable for washdown environments and vandal-prone installations—it won't fail under direct rain, dust, or intentional impact.

Key Specifications and Benefits

• 4MP resolution with 33x optical zoom (4.5–148.5mm lens): Shift from 51.4° wide field to 2.5° narrow field without moving hardware. Critical for operators who need to monitor a parking lot perimeter at 30 feet, then zoom into a license plate at 200 feet without repositioning.
• H.265 compression: Cuts bandwidth and storage footprint roughly in half versus H.264. On 24/7 outdoor speed domes where zoom creates high frame complexity, this codec efficiency prevents network bottlenecks on standard gigabit connections.
• WDR (Wide Dynamic Range): Balances exposure in mixed lighting—sunlit edges and shaded alcoves in the same frame. Outdoor entrances and loading docks benefit immediately; you avoid the washed-out or crushed shadows that make analytics unreliable.
• IP67 rating: Sealed against dust and water ingress. No performance loss in heavy rain, car washes, or dock spray. Outdoor deployment doesn't require an external shroud or gutter protection.
• IK10 impact resistance: Withstands deliberate strikes and high-velocity impacts. Parking garage camera or busy retail entrance? This spec means the dome optics stay aligned and the pan-tilt mechanics don't jam after a thrown object or attempted theft.
• PoE (802.3af) power: Standard 12.95W maximum draw. Plug into any managed PoE switch without straining your power budget. No separate 24V power supply at the camera location—one cable handles both network and power.
• MicroSD storage and 3D DNR: Onboard card slot for local backup or edge buffering during network interruptions. 3D noise reduction keeps low-light footage clean without destroying motion trails or fine detail.

Deployment Context

Speed domes excel where pan-tilt-zoom tracking matters more than fixed wide-angle coverage. If your scene is a long horizontal corridor (shipping yard, perimeter fence line, or parking lot), the Z956's zoom range lets operators follow subjects across distance without losing detail. The compact dome form factor resists weather and tampering better than exposed bullet or turret designs.
