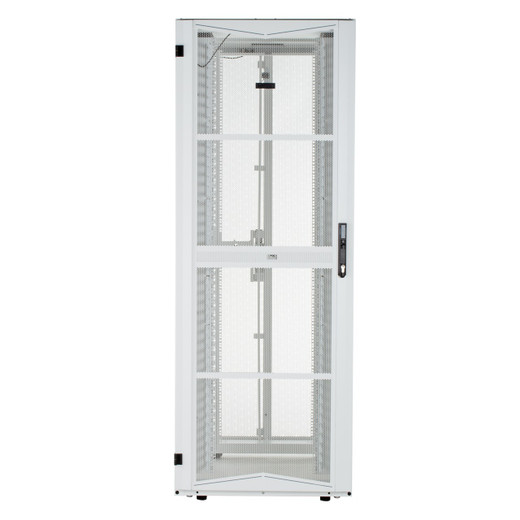

Panduit XG84522WS0005 45U FlexFusion Server Cabinet

Panduit XG84522WS0005 FlexFusion 45U Server Cabinet

The Panduit XG84522WS0005 FlexFusion cabinet delivers a complete enclosure system for high-density data center and server room deployments where thermal management, cable discipline, and equipment accessibility determine uptime. This 45-rack-unit steel enclosure ships with integrated perforated doors for front-to-back airflow, a full complement of cable management hardware, dual PDU mounting rails, and casters for precise positioning during installation—eliminating the need for separate accessory orders that delay rack commissioning and introduce compatibility risk.

Key Features

• 45U rack height (84" / 2133mm) accommodates full-height server, storage, and network switch stacks in standard data center footprints
• 800mm width × 1200mm depth provides clearance for deep enterprise servers and rear cable management without aisle-space penalties
• Perforated front door and split perforated rear doors enable hot-aisle/cold-aisle containment strategies and reduce HVAC load in high-density rows
• Top cover with integrated brush seal prevents recirculation of heated exhaust air while allowing cable entry without cutting or drilling
• Factory-installed left and right PDU mounting brackets accept standard vertical power distribution units without consuming rack-mount U-space
• Long cable management fingers and left-side vertical cable management panel route copper and fiber bundles outside the equipment airflow path
• EIA-310-E compliant rail mounting elements guarantee compatibility with 19" rack-mount servers, switches, patch panels, and KVM hardware across all manufacturers
• TIA/EIA-942 data center infrastructure standard compliance for enterprise-class installations requiring documented space, power, and cooling architecture
• UL 2416 listed for cabinet and rack safety in commercial occupancies
• RoHS-compliant powder-coated white steel construction for clean-room and corporate IT environments where aesthetics matter
• Standard keyed locks on front and rear doors prevent unauthorized physical access in multi-tenant or compliance-regulated facilities
• Heavy-duty casters allow one-person cabinet repositioning during initial layout and future reconfigurations without forklift rental or rigging crew

Thermal management determines whether a 45U cabinet supports full equipment load or forces derating due to hotspot formation. The XG84522WS0005 addresses this through a three-layer airflow design: perforated steel front door (typ. 65% open area) draws conditioned air from the cold aisle, the 1200mm cabinet depth provides sufficient front-to-back airflow path length for proper heat exchange across server heat sinks, and the split perforated rear doors (independently hinged left and right sections) exhaust heated air into the hot aisle while allowing technician access to rear I/O and cabling without removing equipment. The top cover's brush seal assembly permits Category 6A/fiber trunk cables to enter from overhead ladder rack or cable tray while blocking the chimney effect that would otherwise pull hot air back down into the cabinet. This design supports rack-level power densities up to the thermal limit of the installed equipment rather than being constrained by enclosure airflow bottlenecks—critical when populating a cabinet with blade servers, high-wattage storage arrays, or fully loaded top-of-rack switches that exceed 3 kW total draw.

Cable management failures create three costly problems: airflow obstruction (cables blocking server intake fans), troubleshooting delays (inability to trace a circuit without removing equipment), and safety violations (unsecured bundles creating snag hazards during maintenance). Panduit's FlexFusion design embeds the cable discipline infrastructure directly into the cabinet structure. The left-side vertical cable management panel runs the full 45U height and accepts Velcro wraps or cable ties to route patch cords and fiber jumpers in a dedicated channel outside the equipment mounting rails—servers and switches install without interference from existing cabling, and technicians can add or remove patch cords without reaching behind installed equipment. Long cable management fingers (extended depth horizontal organizers) mount between rack units to dress power cords and network cables horizontally before they drop into the vertical channel, preventing cable weight from pulling on equipment ports and maintaining the bend-radius specifications required for 10GBASE-T and OM4 fiber. The factory-installed left and right PDU brackets position vertical power strips in the rear corners of the cabinet where they're accessible for circuit tracing but outside the equipment airflow path and cable routing zones—a typical 45U cabinet houses 35-40U of active equipment, and rear-mounted PDUs consume zero rack units while keeping AC power distribution separate from low-voltage signal cabling per TIA-569 physical-layer standards.

Physical security and service accessibility requirements often conflict—locks prevent tampering, but they also slow emergency troubleshooting and complicate after-hours maintenance when key control becomes a procedural bottleneck. The XG84522WS0005 uses standard keyed locks (same key operates front door, rear doors, and side panels) to enable rapid access by authorized staff without requiring specialized tools, while the split rear-door design allows a technician to open only the left or right half of the rear enclosure when working on equipment in one vertical channel. This minimizes airflow disruption (the unopened door half continues to channel exhaust into the hot aisle) and reduces the physical space required behind the cabinet row—a single rear door requires 800mm+ of swing clearance, but split doors only need 400mm per side and can be opened independently in tight aisles. The included casters install on the cabinet base and lock via foot-actuated brakes; during initial installation, a single technician can position the empty cabinet precisely against floor-mounted seismic brackets or alignment guides, then lock the casters before loading equipment. When the rack requires relocation (office expansion, data center migration, or row reconfiguration), unlocking the casters and rolling the loaded cabinet is faster and safer than unracking 2 tons of servers onto a cart, moving an empty cabinet, then re-installing and re-cabling all equipment.

Compliance with EIA-310-E (the 19-inch rack standard), TIA/EIA-942 (data center telecommunications infrastructure), and UL 2416 (cabinet electrical safety) is not about checking boxes—it's about ensuring that every component you install in this cabinet will physically fit, that your facility's structured cabling system will meet audit requirements, and that your liability insurer and local AHJ will accept the installation without expensive re-work. EIA-310-E compliance guarantees that the vertical mounting rails are spaced at exactly 450mm (17.72") center-to-center and that the rack-unit hole pattern follows the universal 0.625" vertical pitch, so Dell servers, Cisco switches, APC UPS units, and CyberPower PDUs all mount without adapters or custom brackets. TIA/EIA-942 compliance means the cabinet's dimensions, airflow design, and cable management features align with the Tier II/III/IV data center topology standards that enterprise IT audits and SOC 2 reviews reference when evaluating physical infrastructure. UL 2416 listing confirms the cabinet structure, door hinges, and locking mechanisms meet the safety requirements for commercial electrical equipment enclosures, which matters during building-code inspections and insurance underwriting reviews. The 1200mm depth is specifically sized to handle deep modern servers (HP ProLiant Gen10/11 and Dell PowerEdge 16G chassis run 700-750mm deep) while leaving 300-400mm of rear space for cable dressing and PDU mounting—shallower cabinets force cables to bend sharply at the rear of equipment, violating bend-radius specs and causing 10GbE link errors, while excessive depth wastes data center floor space and increases HVAC costs.

The white powder-coated finish differentiates this cabinet for corporate IT environments, medical facilities, and clean manufacturing settings where exposed steel or black enclosures don't meet the aesthetic or contamination-control standards of the surrounding space. Where a black cabinet in a hospital server room or pharmaceutical clean room draws attention as industrial equipment, the XG84522WS0005 integrates visually with white walls and ceiling systems—small detail, but it eliminates the variance requests and finish-change orders that delay projects when facility managers see the rack mockup and reject the color. The FlexFusion system's included component set (top cover, cable management hardware, PDU brackets, side panels, casters, locks) ships as a complete unit rather than requiring separate line items for each accessory, which reduces procurement paperwork, eliminates the risk of ordering incompatible third-party parts, and ensures the cabinet arrives ready for equipment installation the same day it's uncrated.
