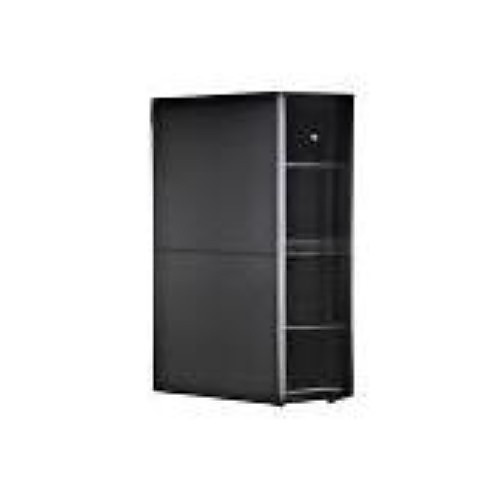

Panduit XG84522WS00R1 FlexFusion 45U Network Cabinet
The Panduit XG84522WS00R1 is a 45U FlexFusion network cabinet engineered for high-density data center and telecommunications deployments where equipment load, thermal management, and physical access patterns drive infrastructure decisions. This 800mm-wide, 1200mm-deep enclosure supports 2,250 pounds of active equipment (dynamic load) and 3,000 pounds static, with a white powder-coat finish, brush-seal top cap for controlled airflow, single-hinge front door for fast maintenance access, and split rear doors for independent cable-side and equipment-side service. Built to EIA-310-E, IEC 60297, and UL 2416 standards, this cabinet handles modern blade servers, high-wattage switches, and dense fiber patching without thermal throttling or access bottlenecks.
Key Features
- 45U Vertical Capacity: 78.75" usable rack height accommodates full-height blade chassis, multi-RU storage arrays, redundant top-of-rack switches, and KVM/PDU infrastructure in a single enclosure
- 2,250 lb Dynamic Load Rating: Supports populated server racks under seismic/vibration conditions without structural deflection; 3,000 lb static rating handles fully-loaded configurations during installation
- 800mm Width × 1200mm Depth: Standard 19" EIA-310 mounting with 47.2" front-to-back depth clears extended server rails, rear cable managers, and hot-aisle containment door clearances
- Brush Seal Top Cap: Factory-installed top panel with brush grommets channels conditioned air through equipment intakes while blocking bypass airflow that degrades cooling efficiency and raises PUE
- Single-Hinge Front Door: Full-width perforated steel door with 180° swing range and removable hinge pins for tool-free removal during equipment staging or forklift loading
- Split Rear Doors: Independently-opening left and right rear doors isolate hot-aisle access from cable-side work, reducing cooling loss during MAC operations and enabling single-technician rear access in narrow aisles
- FlexFusion Modular Platform: Field-configurable mounting depths, accessory rails, and door hinging accommodate evolving equipment profiles without forklift moves or cabinet swaps
- EIA-310-E / IEC 60297 Compliant: Universal hole pattern and RU indexing ensures compatibility with enterprise servers, telco switches, broadcast routers, and OEM-specific mounting hardware across vendors
The XG84522WS00R1's 1200mm depth solves the rear-clearance problem endemic to modern x86 servers with 800mm+ rail extensions, redundant PSU service loops, and hot-swap backplane cabling. The cabinet's front vertical rails mount 25" forward of the rear plane, leaving 22" of rear working space for horizontal cable managers, fiber radius trays, and AC whip service loops without door interference. The split rear door design means you can open the cable-side door to dress structured cabling while the equipment-side door stays closed and locked, maintaining physical security during after-hours low-voltage work. The brush-seal top cap creates a soft pressure boundary that adapts to conduit entry angles and varying cable bundle diameters while blocking the 15-20% bypass airflow typical of open-top or rigid-grommet designs—this matters in hot-aisle containment systems where every CFM of unconditioned air that bypasses the load dilutes supply temperature and forces CRAC unit overcapacity.
Load capacity drives cabinet selection in consolidated virtualization environments and converged infrastructure stacks. The 2,250-pound dynamic rating (tested per ANSI/EIA-310-E seismic Zone 4 criteria) handles twelve 2U servers at 85 pounds each, four top-of-rack switches at 60 pounds, dual redundant 3U UPS modules at 120 pounds, plus cable weight and accessory load without the floor-point-load concerns that arise when mixing lightweight server rails with an under-rated enclosure. Static capacity of 3,000 pounds covers fully-populated blade chassis (14-16 blades at 600+ watts and 25-30 pounds per blade) plus redundant fabric switches and management modules. The cabinet ships with adjustable square-hole mounting rails, M6 cage nuts, and grounding studs; front and rear rails adjust on 1/4" increments to match equipment ear spacing without drilling. The single-hinge front door uses a three-point latch with keyed lock; the door swings 180° and lifts off via removable hinge pins for zero-clearance forklift loading in staging areas or when pre-racking equipment before final placement.
The FlexFusion platform's field modularity addresses the 3-5 year refresh cycle reality in enterprise data centers: you install the cabinet today for 1U pizza-box servers, then two years later the architecture shifts to 2U dual-socket nodes with deeper GPU risers and rear NVMe expansion. The adjustable rail system and accessory mounting channels let you reconfigure the enclosure without swapping the entire cabinet or fabricating custom brackets. Split rear doors mean you can run structured cabling (copper LAG bundles, fiber trunk breakouts, out-of-band management drops) on one side while keeping the equipment hot-swap side accessible for drive replacements and PSU service without exposing the cable plant to accidental snags. White powder-coat finish maintains a clean appearance in customer-facing colocation environments and reflects overhead lighting in low-ceiling equipment rooms, improving visibility during after-hours troubleshooting without requiring task lighting.
This cabinet meets EIA-310-E dimensional and load standards, IEC 60297 international rack framework compatibility, and UL 2416 enclosure safety requirements—the compliance trifecta for multi-vendor environments where you're integrating Cisco UCS, Dell PowerEdge, HPE ProLiant, and NetApp storage under one roof and need guaranteed mounting-hole alignment and third-party-tested load integrity. The brush-seal top, split rear access, and 1200mm depth make this the right enclosure for high-wattage racks (8-12 kW per cabinet) in contained hot-aisle designs where airflow control and service access determine whether you hit target PUE or end up throttling compute to stay within cooling capacity.
