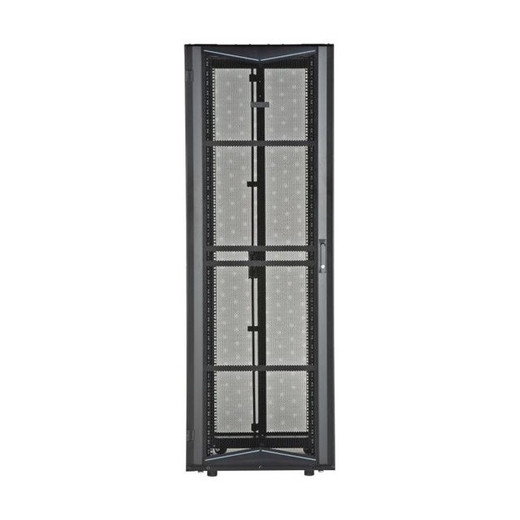

Panduit XG84521BS00A5 FlexFusion 45U Network Cabinet

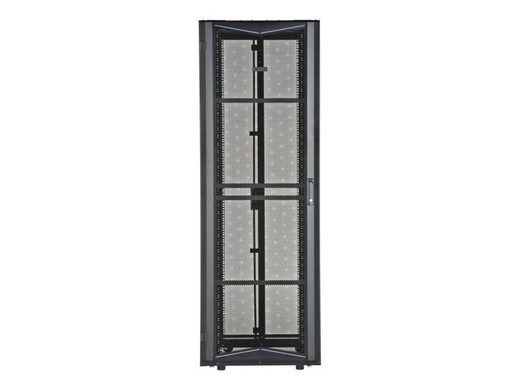

The Panduit XG84521BS00A5 is a heavy-duty 45U network cabinet engineered for high-density data center and telecommunications deployments where equipment load, airflow management, and structured cabling discipline are non-negotiable. Built on the FlexFusion platform, this 800mm wide by 1200mm deep steel enclosure ships with integrated side panels, dual sets of toolless long-finger cable management brackets (left and right), pre-installed PDU mounting rails, and industrial-grade casters for pre-deployment positioning—eliminating the accessory chase that stalls most rack builds. Rated for 3,000 lbs static load and 2,250 lbs dynamic, it handles fully-populated blade chassis, storage arrays, and switch stacks without frame flex or bolt-pattern drift.

Key Features

• 45U mounting height (EIA-310-E / IEC 60297 compliant) provides vertical capacity for 10+ 1U-4U appliances plus cable management overhead
• 3,000 lb static / 2,250 lb dynamic load rating supports fully-loaded blade enclosures, SAN arrays, and redundant UPS/PDU infrastructure
• 800mm width × 1200mm depth footprint balances front-to-back airflow depth with aisle-space economy in ASHRAE thermal zones
• Integrated left side panel with keyed locks isolates cabling runs from conditioned airflow paths—critical for hot-aisle/cold-aisle containment
• Dual sets of toolless long-finger cable management brackets (left and right vertical rails) organize 100+ Cat6A/fiber drops without zip-ties or adhesive velcro
• Pre-installed vertical PDU mounting rails (both sides) accept 0U PDUs without drilling—common-stud spacing fits APC, Eaton, Raritan, Server Technology
• Heavy-duty locking casters enable solo pre-wire and staging in the loading dock, then lock rigid once positioned on raised-floor tiles or slab
• Steel construction with black powder-coat finish resists corrosion in humid telco vaults and provides >20-year frame life under continuous load cycling
• UL 2416 seismic certification for Zone 4 installations—required for California/Pacific Northwest colocation and government SOWs

Every rack deployment starts with three non-negotiable constraints: load capacity, airflow predictability, and cable-path discipline. The XG84521BS00A5 addresses all three at the enclosure level. The 3,000 lb static rating isn't marketing—it's the tested limit before frame distortion under ANSI/BIFMA load protocol, meaning fully-loaded 80 lb switches at every 2U position plus 200 lb UPS modules at the base won't bow the 19" vertical rails or pull mounting studs out of spec. Dynamic rating (2,250 lbs) covers the caster-mobility phase: you can load it to 90% capacity in the staging area, roll it 200 feet down a corridor, and lock it onto the slab without re-leveling or bracket sag. Competitors spec static-only or conflate "shipping weight" with load capacity—this distinction breaks procurement when blade chassis hit 400+ lbs per 10U and finance asks why racks are failing inspection.

The 1200mm depth is the ASHRAE-recommended minimum for equipment that pulls >5kW and exhausts rear-to-front. Shallower enclosures (600mm, 800mm) create recirculation: hot exhaust wraps around vertical rails and gets pulled back into server intakes, spiking CPU thermals and triggering P-state throttling even when CRAC units are oversized. The FlexFusion frame extends the front-to-back path to 47 inches (1200mm), establishing a 12-inch buffer behind the deepest appliance. That buffer is where you mount 0U PDUs, run vertical fiber trunks, and install rear-door heat exchangers without compressing airflow. The integrated side panel isolates this vertical cabling zone from the hot aisle, so cable bundles don't act as thermal blankets around exhaust plenums. Lock the side panel and your rack becomes a closed system—conditioned air enters the front, heated air exits the rear, and cable mass stays out of the fluid path. This is the difference between calculated PUE and real PUE.

Cable management is where 80% of deployments fail spec. Engineers design for 48-port switches; installers terminate 96-port with 6-inch service loops; three months later nobody can trace a link without pulling 40 cables out of a rats-nest. The dual long-finger brackets pre-installed on left and right vertical rails are toolless plastic D-rings spaced every 2U: you drape cables into the fingers during termination, snap the retaining clip, and the bundle is captured with 1-inch radius bends and zero tension on the RJ45 boot. Each finger holds 12-15 Cat6A cables or 24 LC duplex fibers without stacking. Over 45U you get 20+ fingers per side—enough to segregate by function (copper access, fiber uplinks, IPMI out-of-band, iDRAC) and color-code per VLAN. Because they're toolless, adds/moves/changes don't require a screwdriver or wire-cutter: pop the clip, reroute the cable, snap it back. This is how Crutchfield-grade AV integrators and carrier-hotel operators maintain sub-15-minute MACD times.

PDU mounting is the other day-two surprise. Most enclosures ship bare or with generic threaded-hole rails that don't align with Eaton, APC, or Raritan stud spacing. You end up drilling new holes (voiding UL listing), using sheet-metal adapters that rattle, or surface-mounting PDUs with zip-ties and hope. The XG84521BS00A5 ships with factory-installed vertical zero-U PDU rails on both left and right interior walls, pre-punched with the EIA-310 hole pattern that 90% of rack PDUs use. Drop in your APC AP8xxx, Eaton ePDU, or Server Technology Sentry, hand-tighten four cage nuts, and you're done. No custom brackets, no field-drilled holes, no argument with the fire marshal about whether modified enclosures still carry UL 2416 seismic certification (they do here—the PDU rails are part of the tested assembly).

Casters are often an afterthought until you're trying to move 1,800 lbs of loaded rack across a tile floor solo. The XG84521BS00A5 ships with four heavy-duty locking casters rated for the dynamic load (2,250 lbs)—meaning they won't shear bolts or crack mounts under full weight in motion. Casters are 4-inch industrial swivels with foot-pedal locks: step on the lever and the wheel freezes in both rotation and swivel. This lets one tech pre-wire the cabinet in a staging area (install switches, run vertical fiber, dress cables, mount PDUs), then roll the entire assembly to its floor position and lock it rigid. Once locked, the frame sits as stable as a welded-foot enclosure—no creep during seismic events, no millimeter drift that misaligns hot-aisle containment curtains. For raised-floor installs, you can roll it over tiles until it's positioned, lock it down, then swap casters for fixed feet if building code requires it (though UL 2416 cert covers locked casters in seismic zones, so most inspectors pass it as-is).

Built to EIA-310-E, IEC 60297, and UL 2416 standards with seismic certification for Zone 4 installations—required for California state contracts, federal SOWs, and carrier-neutral colocation facilities where building inspectors red-tag anything that isn't formally tested. The FlexFusion cabinet is proof-load-tested per ANSI/BIFMA X5.9 (the commercial furniture seismic standard adapted for IT enclosures), meaning it's been shake-table validated to survive 1.0g lateral acceleration without bolt failure or door latch release. If you're bidding GSA work, VA data centers, or AWS/Equinix colo builds, this certification closes the compliance box without variance requests. The black powder-coat finish is salt-spray tested to 500 hours (ASTM B117), so it holds up in humid coastal telco COs and underground vaults where steel oxidation writes off cheaper enclosures in 36 months.
