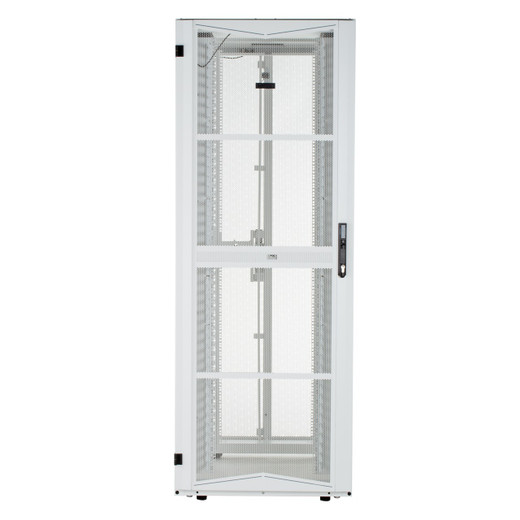

Panduit XG84212WS0003 FlexFusion 42U Rack Enclosure
Data center managers and IT infrastructure teams face mounting thermal-density challenges as blade servers, top-of-rack switches, and high-wattage storage arrays concentrate heat in confined footprints. The Panduit XG84212WS0003 FlexFusion rack enclosure addresses these demands with a perforated airflow design, hot-aisle containment preparation, and 42U of EIA-310-E compliant mounting space in an 800mm-wide frame. The 1070mm depth accommodates deep blade chassis, modular UPS units, and rear cable management without equipment overhang, while the white powder-coated steel finish supports cleanroom-adjacent deployments, healthcare IT closets, and facilities where rack aesthetics align with room finishes. Integrated casters enable two-person positioning on raised floors before final anchoring, and the left-side PDU bracket mounts vertical power distribution units without consuming U-space or blocking airflow paths.
Key Features
- 42U rack units deliver 73.5 inches of usable vertical mounting space (78.7-inch installed height including frame)
- 800mm (32-inch) width accommodates standard 19-inch EIA equipment plus side-mounted accessories
- 1070mm depth supports deep blade enclosures, SAN storage arrays, and rear-mounted PDUs with cable clearance
- Perforated front door with single-hinge design maximizes CFM throughput while maintaining physical security
- Split perforated rear doors provide independent left/right access for hot maintenance without exposing full equipment plane
- Top cover pre-configured for CoolBoot chimney integration supports hot-aisle containment retrofits
- Left-side PDU bracket accepts Panduit vertical power strips and third-party C13/C19 distribution units
- Powder-coated steel construction in white finish reduces static buildup and meets cleanroom adjacency requirements
- Heavy-duty casters enable in-room positioning on raised floors before leveling and anchor-bolt installation
- EIA-310-E rail mounting elements with square and threaded round holes support universal equipment compatibility
- Standard key-locks on front and rear doors (replaceable cores for master-key integration)
- Left and right removable side panels with tool-free latches for internal cable routing and equipment service
The perforated door design balances airflow and security for installations where physical access control and thermal management intersect. The front door uses a single-hinge configuration with a continuous perforation pattern across the full door width, eliminating the center mullion found in double-door designs that can create airflow dead zones in front of blade server intake fans. Perforation open-area ratio exceeds 60 percent, allowing unimpeded cold-aisle air to reach equipment intakes without backpressure that would force servers into thermal throttling. The split rear doors divide the enclosure into left and right halves, so technicians can access one vertical equipment column for cable changes or hot-swap drive replacements without exposing the full rear plane — critical in live environments where adjacent equipment cannot tolerate accidental contact. Door removal is tool-free via lift-off hinges when full rear access is required for initial rack population or decommissioning.
The top cover includes factory-installed mounting points and knockout panels for Panduit CoolBoot chimney systems, which extend the hot-aisle containment barrier upward to prevent exhaust air from recirculating into cold-aisle supply. This preparation eliminates the field modifications (drilling, cutting, sealing) typically required to retrofit containment after initial rack deployment, reducing installation labor and maintaining the enclosure's UL2416 listing. The 800mm width aligns with standard 24-inch raised-floor tile layouts common in Tier II and Tier III data centers, allowing racks to center on tile grids without spanning tile edges that complicate cable entry and floor-anchor placement. At 1070mm depth, the enclosure supports equipment up to 950mm deep (measured from front rail to rear rail), leaving 60mm of rear clearance for cable bend radius and 60mm of front clearance for door swing — sufficient for Cisco UCS 5108 blade chassis (788mm deep), Dell PowerEdge VRTX (769mm deep), and NetApp FAS2750 storage controllers (686mm deep) without rear overhang that would interfere with hot-aisle walking clearances.
The left-side PDU bracket mounts vertically along the interior left wall, accepting Panduit vertical power strips (PH and LU series) and third-party C13/C19 distribution units up to 2 inches wide. This location keeps power outlets within 24 inches of most equipment horizontally while preserving the full 42U of mounting space on the front rails — unlike zero-U PDU designs that consume vertical rail real estate and force equipment repositioning when PDU capacity needs expansion. The bracket uses slotted mounting holes on 1-inch vertical spacing, allowing height adjustment to align outlets with equipment power-inlet groups and avoid cable droop that can obstruct airflow. Power cables route from the PDU directly to equipment inlets without crossing the rear door swing path, so door operation during live maintenance does not require disconnecting power. The enclosure ships with rail mounting elements (vertical rails with square mounting holes on EIA-310-E spacing plus cage nuts and screws), casters, and front/rear doors fully assembled. Installation teams position the enclosure on casters, level using adjustable feet (casters retract when feet extend), then anchor to the raised floor using floor-mount brackets (sold separately, specify Panduit FMTKIT or equivalent based on floor type). Side panels lift off after releasing tool-free latches, exposing internal vertical cable management channels and horizontal cross-braces that accept Panduit WMPV vertical managers and WMPH horizontal cable troughs.
Compliance with EIA-310-E ensures mounting-hole spacing matches all standard 19-inch rackmount equipment, eliminating adapter brackets and shims that add weight and complexity. TIA/EIA-942 data-center-infrastructure standard compliance addresses structural load ratings, seismic bracing attachment points, and grounding-stud placement for facilities pursuing Rated-1 through Rated-4 classifications. UL2416 listing for rack enclosures covers structural integrity under load, door-latch reliability, and material flammability ratings required by most commercial property insurers and building inspectors. RoHS material compliance enables deployment in federal government facilities, healthcare environments subject to medical-device adjacency rules, and European Union sites where non-compliant equipment triggers disposal liability. The white powder-coated finish distinguishes this enclosure from the commodity black racks common in most data centers — a functional advantage in healthcare imaging-equipment rooms, pharmaceutical cleanroom-adjacent IT spaces, and university research-computing environments where white finishes reduce visual intrusion and align with room aesthetics while maintaining the same corrosion resistance and EMI shielding as black powder coat.
