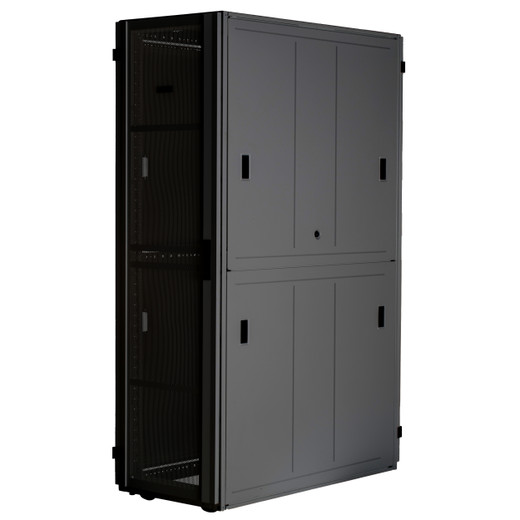

Panduit XGL84222B FlexFusion™ 42U Server Rack Cabinet
The Panduit XGL84222B FlexFusion cabinet delivers 42U of vertical mounting capacity in an 800mm × 1200mm footprint optimized for high-density server, storage, and network equipment deployments. Perforated front and split rear doors maximize front-to-back airflow while powder-coated steel construction provides the structural rigidity required for loaded configurations exceeding 1,500 lbs. PDU mounting brackets, equipment rails with cage nuts, and factory-installed casters are included—eliminating the accessory hunt that stalls most rack buildouts.
Key Features
- 42U height supports full-height server chassis, blade enclosures, and stacked switch configurations without requiring external cable managers that consume additional rack units
- 1200mm depth accommodates deep servers (HP ProLiant DL380 Gen11, Dell PowerEdge R750) and rear-mounted PDUs without clearance conflicts
- Perforated front door and split perforated rear doors create unobstructed airflow paths—critical when intake temps exceed 75°F or when running high-wattage GPU servers
- Split rear door design allows independent left/right access for cable pulls and equipment servicing without blocking adjacent rack rows in tight datacenter aisles
- Included PDU mounting brackets accept vertical zero-U PDUs (APC AP8000 series, CyberPower PDU81xx) and horizontal rear-channel mounts without drilling
- Heavy-duty casters enable pre-staging: load and cable the rack in your staging area, then roll it into position and lock down
- Black powder-coated finish resists chipping during equipment installs and provides a professional appearance in customer-facing server rooms
- Equipment rails ship with cage nuts pre-installed at standard EIA spacing—mount your first device within minutes of uncrating
The 800mm width strikes the balance most IT and AV integrators need: wide enough to mount standard 19-inch rack-mount equipment with adequate cable bend radius on both sides, yet narrow enough to fit through 36-inch commercial doorways without removing doors or resorting to angled maneuvers. The 1200mm depth is where this cabinet separates from budget enclosures—modern 2U servers often run 750–850mm deep, and once you account for rear cable bend radius (minimum 2 inches per TIA-568 standards) and rear-mounted PDU thickness (typically 80–100mm), shallow 1000mm cabinets leave zero working clearance. The XGL84222B's extra 200mm means your fiber patch panels, Cat6A keystones, and power distribution sit cleanly behind the equipment plane without crowding switch exhaust fans or blocking hot-aisle airflow.
Thermal management starts with the perforated doors. The front door's perforation pattern covers approximately 65% of the door surface, allowing intake air to reach server fans without the static pressure drop you see with solid or low-perforation doors. The split rear door configuration is equally important: each half swings independently on its own hinge set, so you can open just the left or right side to service a specific device while keeping the opposite side closed to maintain hot-aisle containment. In environments without formal containment curtains, this split-door approach prevents the thermal mixing that occurs when you swing open a full-width rear door and pull cold air from the intake aisle into the exhaust path. If you're running legacy equipment without variable-speed fans, that intake temp rise can trigger thermal throttling within 90 seconds.
Cable management and power distribution are pre-planned. The included PDU bracket set mounts vertical zero-U PDUs to either the left or right rear channel, positioning outlets within 12–18 inches of device power inlets without requiring custom brackets or zip-tie bundles. For horizontal rear-mount PDUs (common in Cisco UCS and NetApp deployments), the same bracket holes accept M6 fasteners at standard horizontal spacing. Equipment rails ship with cage nuts already loaded at every RU position—no more sorting through bags of loose hardware or wondering whether you have enough spares when you're mounting device 37 of 42. The rails are welded to the cabinet frame (not bolted), eliminating the flexing you encounter with bolt-on rail kits when sliding a 90-lb server into position.
The factory-installed casters are rated for the cabinet's maximum load capacity and lock via foot-activated pedals on all four corners. Pre-stage and pre-cable your rack in a clean staging area with full lighting and bench access to tools, then unlock the casters and roll the loaded cabinet to its final position. Once locked, the caster's leveling feet extend to lift the cabinet frame off the wheel assemblies entirely, transferring the load to the floor and preventing any rolling movement during seismic events or accidental contact. For permanent installations requiring seismic compliance (California Title 24, IBC seismic zones D and above), remove the casters and bolt the cabinet directly to floor anchors using the threaded inserts built into the base frame.
The XGL84222B is built for datacenter, server room, and equipment closet installations where thermal performance, equipment compatibility, and installation efficiency determine whether your deployment finishes on schedule or turns into a multi-day retrofit. Meets ANSI/EIA-310-D rack standards and RoHS compliance for federal and state procurement.
