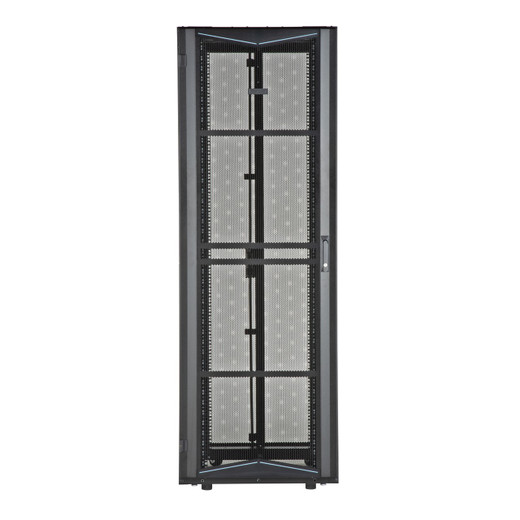

Panduit XG74222BS0001 FlexFusion 42U Server Cabinet
The Panduit XG74222BS0001 FlexFusion cabinet delivers 42U of EIA-310-E compliant rack space in a 700mm-wide, 1200mm-deep enclosure engineered for high-density datacenter deployments. Built for IT infrastructure teams managing colocation builds, enterprise server rooms, and TIA-942 compliant facilities, this steel cabinet combines full-perforated airflow optimization with split rear-door serviceability and integrated PDU mounting. The 1200mm depth accommodates deep blade servers, storage arrays, and modern networking gear while the narrow 700mm width maximizes floor-space efficiency in constrained hot-aisle/cold-aisle layouts. Ships with factory-installed casters, brush-seal top cover, left PDU bracket, and dual side panels—ready for immediate equipment installation.
Key Features
- 42U rack capacity in 700mm × 1200mm footprint—fits standard 19" EIA-310-E gear with 1200mm depth clearance for deep servers and blade chassis
- Full perforated front and split rear doors—maximize front-to-back airflow for active cooling in hot-aisle/cold-aisle containment architectures
- Factory-installed left PDU mounting bracket—eliminates field fabrication for vertical power distribution units, preserves 19" mounting space
- Brush-seal top cover—cable pass-through with containment seal for raised-floor or overhead cable drops, maintains aisle pressure differential
- Split rear doors with independent hinges—service rear equipment without blocking adjacent racks, supports A/B power feed routing
- Powder-coated steel construction with standard keyed locks—corrosion-resistant finish, physical security for colocation and multi-tenant environments
- Included heavy-duty casters—reposition loaded racks during initial build-out, remove after anchoring for seismic compliance
- TIA-942 and UL2416 certified—meets Telecommunications Infrastructure Standard and UL safety requirements for commercial datacenter installations
The XG74222BS0001's 700mm width and 1200mm depth strike the balance datacenter operators need: narrow enough to fit six cabinets across a standard 4-meter row (maximizing rack density per square foot), deep enough to handle modern 1U servers that run 900–1050mm deep with cable-management arms fully extended. The full-perforated front door (hinged single panel) and split perforated rear doors deliver the airflow path required for 5–10kW heat loads when paired with in-row cooling or rear-door heat exchangers. Perforations are sized to block FOD (foreign object debris) while maintaining >65% open area—critical when you're running high-static-pressure CRAC returns. The split rear-door design is where FlexFusion separates from budget enclosures: independent left and right panels mean you can service rear-mounted switches or access A-side power feeds without swinging a full-width door into the adjacent rack's service clearance. Each door uses three-point latching with keyed locks that share the same Panduit cabinet key code—one key for the entire row.
Compliance and mounting flexibility define this cabinet's datacenter fit. TIA-942 certification confirms the frame meets structural loading, grounding, and thermal-management specs laid out in the Telecommunications Infrastructure Standard—non-negotiable for BABA-compliant federal builds, financial-sector SOC 2 audits, and carrier-neutral colocation facilities. UL2416 listing covers the electrical safety side (grounding continuity, load ratings, flammability) so the cabinet clears most AHJ (Authority Having Jurisdiction) inspections without field modifications. The frame ships with square-hole vertical rails pre-installed and includes both rail-mount cage nuts and toolless clips in the accessory kit—you can mix and match mounting hardware as gear dictates (toolless for servers you swap frequently, cage nuts for switches and patch panels that stay put). The left-side PDU bracket is factory-welded, positioned to accept 0U vertical PDUs from Panduit, APC, or Server Technology without blocking the rear door swing. Casters are rated for 1500 kg (3300 lb) static load—roll the cabinet into position during rough-in, load your gear, then anchor with seismic floor-mount brackets (sold separately, Panduit P/N FRME-series) to meet IBC and CBC seismic Zone 4 requirements.
The brush-seal top cover is the detail that prevents the "where's my containment breach" hunt six months post-install: dense nylon bristles seal around cable bundles exiting to overhead ladder rack or raised-floor grommets, maintaining the pressure differential your hot-aisle containment system relies on. For operators migrating from APC NetShelter (the AR3350 competitor callout in Panduit's spec), the XG74222BS0001 is dimensionally compatible—same 42U height, same 700mm width, 50mm deeper—so you can drop it into existing rows without re-spacing anchors. Ships as a complete assembly (no field assembly of frame corners), clears standard 36" doorways when casters are installed, and pairs with Panduit's FRME-series blanking panels and CMVT-series vertical cable managers for a turnkey raceway solution.
