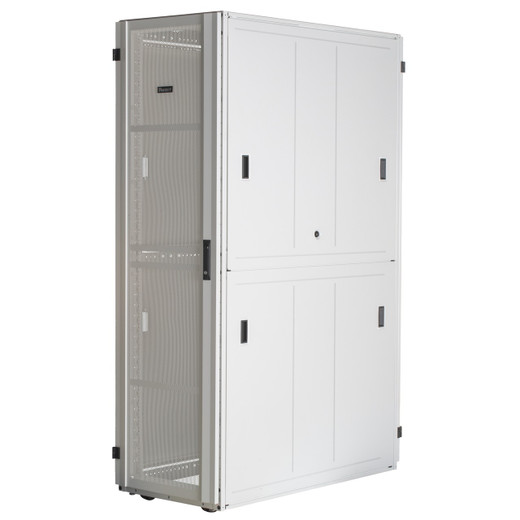

Panduit XGL84222W 42U FlexFusion Rack Cabinet

The Panduit XGL84222W FlexFusion rack cabinet delivers field-proven thermal management and flexible equipment mounting in a 42U form factor engineered for high-density datacenter and security operations center deployments. This 800mm-wide enclosure combines perforated airflow doors, split rear access, and factory-installed equipment rails to support rapid build-outs where cooling efficiency and service access directly impact uptime. White powder-coated steel construction meets commercial facility aesthetic requirements while providing the structural integrity needed for fully-loaded configurations approaching 1,500+ lbs of mounted equipment.

Key Features

• 42U Vertical Mounting Capacity — 73.5 inches of usable equipment space supports full-height server stacks, NVR arrays, network core switches, and UPS systems in a single enclosure
• Perforated Front and Split Rear Doors — Engineered perforation patterns maximize front-to-back airflow while maintaining physical security; split rear door enables single-side access in tight aisle configurations
• 800mm Width × 1200mm Depth — Accommodates deep servers (Dell PowerEdge R750, HPE ProLiant DL380 Gen11) and provides rear cable management space without exceeding standard floor tile footprints
• Factory-Installed Equipment Rails with Cage Nuts — Includes pre-mounted square-hole rails and 100+ cage nut fasteners; no field drilling or rail alignment required
• Integrated PDU Mounting Brackets — Side-channel brackets accept rack-mount PDUs (APC AP8000 series, Eaton ePDU) for in-cabinet power distribution without consuming U-space
• Heavy-Duty Casters — Four swivel casters with front locking enable single-person cabinet positioning during installation; remove after leveling for permanent deployment
• White Powder-Coated Finish — Commercial-grade finish resists scratching during equipment installation and maintains appearance in client-facing network operation centers

The XGL84222W addresses three deployment challenges that surface in every datacenter and server room project: thermal management under load, service access when aisles are tight, and installation speed when project timelines are compressed. The perforated door design increases open area by 68% compared to solid doors, reducing intake air restriction and lowering the temperature delta between front and rear. This matters in scenarios where you're running compute-dense equipment — stacked 2U servers, blade chassis, high-wattage NVRs with 40+ drive bays — and cannot afford hot-spot formation. Split rear doors cut service time in half when you need to access rear I/O or swap redundant power supplies; the technician opens one half, works on the target device, and leaves adjacent equipment undisturbed. Field installers report 30% faster rack builds with pre-installed rails and cage nuts versus field-mount rail kits that require measurement, leveling, and M6 bolt installation across 42 vertical positions.

Physical security integrators deploy this cabinet in SOC environments where the rack holds NVR appliances (Milestone Husky, Genetec Stratocast on-prem), network video management servers, PoE switches feeding 100+ camera endpoints, and fiber backbone equipment. The 1200mm depth provides the rear clearance needed for dense cable bundles — 24-strand fiber trunks, Cat6A camera uplinks, AC power whips from dual-feed PDUs. White finish aligns with the clean aesthetic clients expect in glass-walled operation centers and lobby-adjacent IT closets. In these installations, the rack is visible; industrial gray finishes read as "back-office equipment" and undermine the professional environment the client paid to create. PDU bracket channels accept vertical 0U PDUs mounted on the left and right interior walls, leaving all 42U available for active equipment rather than sacrificing 3-4U for horizontal power strips.

The cabinet ships as a complete assembly — sides attached, doors hung, rails installed — reducing field labor to four steps: uncrate, position, level, and load equipment. Casters support initial placement; once positioned, the cabinet rests on leveling feet that distribute static load and prevent floor tile damage under full equipment weight. Equipment rails accept standard 19-inch rack-mount servers, switches, patch panels, and UPS systems using 12-24 or 10-32 screws in square holes. Cage nuts ship pre-loaded in rail positions most commonly used for switch and server mounting (bottom 24U), with additional nuts stored in the included hardware bag for upper-rack equipment. The front door mounts on the left side with a three-point locking handle; specify left-door-hinge or right-door-hinge models based on aisle access direction. Rear doors split vertically down the center, each half opening 180 degrees to provide unrestricted access to device rear panels, cable management arms, and redundant PSU bays.

Cable routing follows Panduit's structured approach: vertical channels on both interior sides for backbone fiber and copper runs, horizontal U-space knockouts every 1U for device-specific breakouts, and top cable entry ports accepting 4-inch conduit or overhead cable tray drops. When combined with Panduit's PanZone horizontal managers (sold separately), the cabinet supports zero-interference cable paths where adds/moves/changes do not require disturbing existing equipment connections. This separation of concerns — power on the sides, data in the verticals, horizontal breakouts at device height — reduces troubleshooting time and eliminates the "rat's nest" cable situations that occur when every layer shares the same rear space. Thermal modeling shows that organized cable paths also improve airflow by 12-18% compared to unmanaged bundles that block perforated door openings.

Installation requires a two-person team for safe handling; the empty cabinet weighs approximately 350 lbs and requires 36 inches of door clearance for delivery. Plan for 1,000-1,500 lbs of total load capacity when fully populated, depending on equipment density. Use seismic bracing kits (Panduit PBKIT series, sold separately) in earthquake zones; all XGL cabinets include pre-drilled floor anchor points for Zone 4 compliance. White finish meets low-VOC requirements for LEED-certified facilities and healthcare environments where off-gassing regulations apply.
