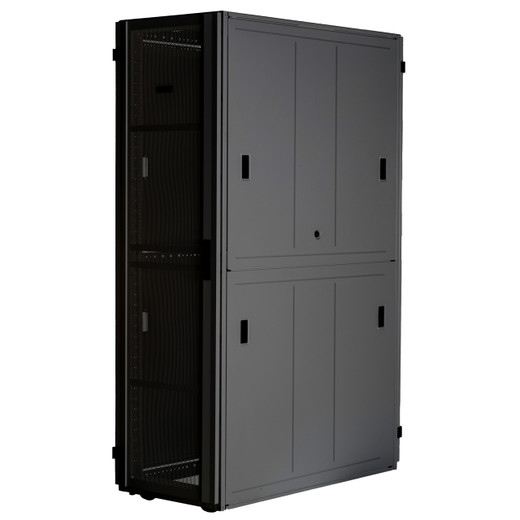

Panduit XGL64222B FlexFusion 42U Server Rack Cabinet

The Panduit XGL64222B is a 42U FlexFusion server rack engineered for high-density data center and network operations room deployments. With 600 mm width, 1200 mm depth, and full-height 42-rack-unit capacity, this steel enclosure delivers the thermal management, structural rigidity, and access flexibility that mission-critical infrastructure demands. Perforated front and split rear doors maximize airflow while maintaining physical security. Factory-installed equipment rails, PDU mounting provisions, and heavy-duty casters streamline deployment in colocation facilities, enterprise server rooms, and IP surveillance recording infrastructure.

Key Features

• 42U rack capacity supports high-density server, storage, and network switch installations
• 600 mm (23.6") width and 1200 mm (47.2") depth accommodate deep enterprise servers and cable management arms
• Perforated front door and split perforated rear doors optimize front-to-back airflow for active thermal management
• Powder-coated steel construction with removable side panels for secure access and maintenance
• Includes pre-installed equipment rails with cage nuts, eliminating field prep time
• Integrated PDU mounting brackets support vertical power distribution and out-of-band management
• Heavy-duty casters enable repositioning during initial deployment and data center reconfigurations

Data center thermal management begins at the enclosure. The XGL64222B's perforated door design delivers maximum ventilation surface area without compromising physical security—critical when rack power densities approach 8–12 kW. The front door ships with a secure hinge mount and latching mechanism that integrates with most data center access control systems. The split rear door configuration is a standout: each half swings independently, so technicians can access one vertical equipment column without exposing the entire rack interior. This cuts mean-time-to-repair during hot-swap drive replacements, network uplink troubleshooting, and SFP transceiver installations. Both rear door halves use the same perforated steel as the front, ensuring symmetrical exhaust flow that aligns with hot-aisle/cold-aisle containment strategies.

Depth matters in modern IP surveillance and IT infrastructure. The 1200 mm cabinet depth handles full-depth Dell PowerEdge, HP ProLiant, and Supermicro chassis with room for rear cable management arms and redundant power supply access. For IP video recorder deployments, this depth accommodates deep-chassis NVRs loaded with 60+ drives, plus the KVM and network switching layer. The factory-installed equipment rails ship with cage nuts already in position, so integrators bolt in servers and patch panels without the tedious cage-nut insertion step—on a 42U rack, that's 168 mounting points prepped and ready. PDU mounting brackets are included and position vertically along either interior side, keeping circuit-level power monitoring and remote reboot capability out of the equipment rails. The powder-coated black finish resists corrosion in temperature-controlled environments and maintains a professional appearance in customer-facing colocation suites.

Panduit's FlexFusion platform is engineered to meet data center infrastructure standards including TIA-942 and ANSI/BICSI 002. The welded steel frame supports fully-loaded configurations exceeding 1,500 lbs static weight—essential when a single rack houses blade servers, SAN storage arrays, and UPS battery modules. Removable side panels simplify cable routing during installation and provide technician access for MAC (moves, adds, changes) work without disrupting adjacent racks. This cabinet is the backbone of scalable, maintainable data center infrastructure—whether you're deploying a new enterprise storage cluster, consolidating virtualization hosts, or building out a regional IP surveillance recording platform with centralized retention and analytics.
