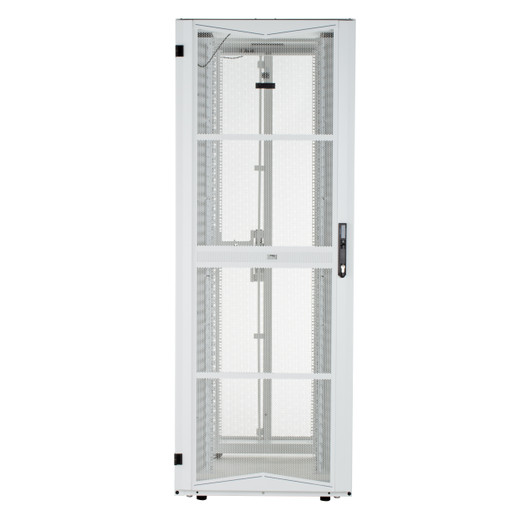

Panduit XG64212WS0001 FlexFusion 42U Server Rack Enclosure
The Panduit XG64212WS0001 FlexFusion cabinet delivers a turnkey 42U infrastructure frame for mid-density server, storage, and network equipment deployments in datacenter, IT closet, and colocation environments. Measuring 600 mm (23.6") wide by 1070 mm (42.1") deep with a standard 19" EIA-310-E mounting profile, this white powder-coated steel enclosure ships complete with perforated front and split rear doors for optimized front-to-back airflow, integrated PDU mounting, removable side panels, and heavy-duty casters for repositioning during staged builds. The competitor cross-reference to APC NetShelter AR3100W reflects Panduit's positioning as a drop-in alternative for integrators standardizing FlexFusion's tool-less accessory ecosystem across mixed-vendor racks.
Key Features
- 42U rack capacity in EIA-310-E compliant 19" mounting rails for universal equipment compatibility
- 600 mm width × 1070 mm depth × 1999 mm height (23.6" × 42.1" × 78.7") footprint optimized for standard datacenter tile layouts
- Perforated front door with single-hinge swing and split perforated rear doors for service access without equipment shutdown
- White powder-coated steel construction with integrated top cover featuring brush seal gasket for overhead cable entry
- Factory-installed left-side PDU bracket, removable left/right side panels, and standard keyed locks
- Heavy-duty casters included for relocation during installation; leveling feet recommended for production deployment
- UL2416 listed, TIA/EIA-942 datacenter-compliant, RoHS-conformant materials
FlexFusion racks address the recurring integrator pain point of accessory incompatibility across cabinet generations. Panduit's rail-mount system uses a continuous vertical channel that accepts cable managers, PDU brackets, blanking panels, and equipment shelves without requiring cage nuts or clip-on adapters — every accessory locks into place with a quarter-turn fastener. The XG64212WS0001 ships with rail elements pre-installed, so the first equipment cage nut threads in without field modification. The 1070 mm depth accommodates deep-chassis servers (Dell PowerEdge R750 at 737 mm, HPE ProLiant DL380 Gen11 at 720 mm) while leaving 150+ mm front clearance for horizontal cable managers and 200+ mm rear clearance for vertical PDU mounting and fiber patch panels. Unlike shallow 600 mm-depth network cabinets that force equipment installers to choose between front cable management or rear door clearance, this 42U frame provides both simultaneously.
The perforated door strategy directly impacts thermal management in racks running blade servers, high-density switches, or GPU compute nodes. Panduit specifies approximately 64% open area on both front and rear doors, which translates to <1.5 mm H₂O static pressure drop at 200 CFM — low enough that equipment with front-to-back cooling (Cisco Nexus 9000, Juniper QFX5000, Dell EMC PowerEdge) can pull adequate intake air without fighting door resistance. The split rear door design allows half-door opening for hot-aisle work without exposing the entire rack's rear plane, a safety requirement in occupied datacenter floors per NFPA 75. The single-hinge front door swings 180° and can be field-reversed for left or right-hand opening to match aisle orientation; the rear doors are non-reversible and open outward from center. Door removal requires a single M6 shoulder screw extraction per hinge — no tools beyond a 4 mm hex key — so you can strip doors for deep retrofits or cleaning without permanent hardware loss.
The included PDU bracket mounts on the left interior side rail and accepts Panduit's zero-U vertical PDUs or third-party units with standard keyhole mounting slots. The bracket's offset design positions the PDU body 25 mm inward from the rail face, preserving the full 482.6 mm (19") mounting width for equipment ears. This prevents the common installation failure where an oversized PDU forces the integrator to offset server rails outward, misaligning cage nut positions and creating a 3-5 mm gap that causes rack-mount ears to bend under load. The left/right side panels attach via captive quarter-turn fasteners — no loose screws to drop into live equipment — and can be removed independently for mid-rack service access. The top cover's brush seal gasket fits overhead cable trays or ladder rack without requiring field cutting; the brushes self-seal around cable bundles up to 100 mm diameter while blocking debris and maintaining ASHRAE A2-compliant cold aisle separation when the rack sits under a plenum return.
Casters are factory-installed and rated for the cabinet's gross weight plus typical 42U server load (verify individual equipment weight against Panduit's published load capacity specification). For permanent installations, integrators typically deploy the rack on casters during the staging phase — rolling it into position, loading equipment, dressing cables — then either remove casters and replace with leveling feet or lock casters and add seismic-anchor brackets per IBC Section 1621 and CBC Chapter 16 requirements in seismic zones. The white finish matches raised-floor datacenter aesthetics and increases visibility in low-light conditions, but be aware that powder coat is more prone to scuffing during transport than black textures; edge corners will show wear if the rack is dragged rather than rolled.
This cabinet meets EIA-310-E dimensional standards (482.6 mm width, 44.5 mm vertical spacing per U, tapped 12-24 or M6 mounting holes), ensuring compatibility with every manufacturer's rack-mount hardware. TIA/EIA-942 compliance confirms the enclosure's suitability for Tier I–III datacenter mechanical infrastructure, and UL2416 listing validates structural load ratings, grounding continuity, and door-interlock safety where required by local AHJ. RoHS conformance addresses lead-free materials procurement rules in federal contracts and California installations. The Panduit FlexFusion ecosystem extends beyond this base enclosure to include matching cable managers, roof-mount fan trays, 0U and 1U PDU options, and seismic-rated floor anchors — all using the same rail-mount attachment system, so accessory additions never require drilling, riveting, or custom brackets that void structural certifications.
