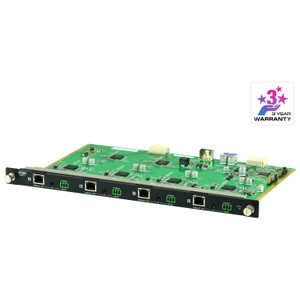

ATEN VM7514 4-Port HDBaseT Input Board
Overview
The ATEN VM7514 is a 4-port HDBaseT input board designed to integrate with ATEN modular matrix switchers. It allows for the extension of video and audio signals, along with IR and RS-232 control, over a single Cat 6a cable. This board is critical for large-scale AV deployments where signal distribution to remote locations is required, such as in corporate boardrooms, auditoriums, or digital signage networks. The VM7514 effectively consolidates multiple cable runs into one, simplifying installation and reducing clutter.
Compatibility
This input board is specifically designed for use with ATEN modular matrix switchers that support HDBaseT input modules. It is compatible with ATEN's VS194 series switchers. For specific model compatibility, consult the ATEN modular matrix switcher's documentation. The board supports 100 Ω impedance connections, standard for HDBaseT over twisted-pair cabling.
Installation Notes
The ATEN VM7514 supports signal extension up to 100 meters using Cat 6a cabling. For optimal performance and to achieve the maximum distance, shielded Cat 6a cable is recommended. The board features 4x Mini Stereo Jack Female connectors for IR signal transmission, enabling remote control of connected devices. Operating within a humidity range of 0-80% RH (non-condensing), it is suitable for standard indoor environments. Firmware can be upgraded to v1.2.114 for potential performance enhancements and bug fixes.
