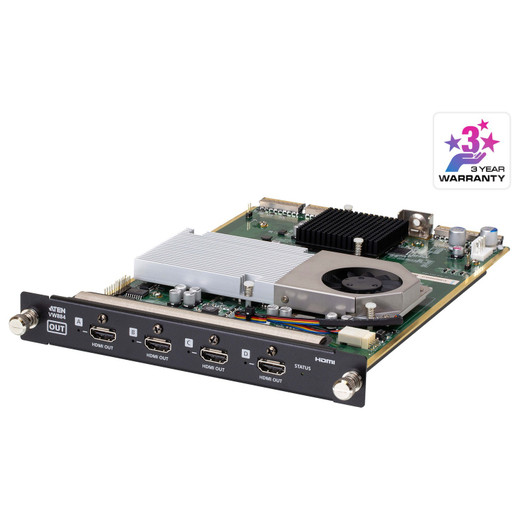

ATEN 4-PORT 4K HDMI Output Board FOR VW Series - VW884

ATEN VW884 4-Port 4K HDMI Output Board for VW Series Video Wall Controllers

Overview

The ATEN VW884 is a 4-port HDMI output expansion board designed for installation into ATEN VW-series video wall controllers. If your deployment requires additional HDMI outputs — whether expanding a lobby display array, a control room video wall, or a digital signage grid — the VW884 slots into the VW chassis to add four discrete HDMI outputs without requiring a separate controller unit. Each port supports up to 4096x2160 or 3840x2160 at 60Hz with full 4:4:4 chroma, meaning no color subsampling artifacts on high-contrast content like maps, dashboards, or fine text overlays. The board also includes a selectable scaler, with output presets down to 1280x720 at refresh rates from 24 through 60Hz — useful when a portion of your display wall runs lower-resolution panels and you need to avoid overscan or signal negotiation failures. Cable runs of up to 5.0m are supported per output, which covers most rack-to-display spans in control room and operations center installs. Firmware v1.2.114 (released 2026-04-15) is the current release for the VW884.

Compatibility

The VW884 is an output board for the ATEN VW Series modular video wall controller platform. Verify slot availability and board compatibility against your specific VW chassis model before ordering — not all VW chassis accept every board type, and output board slot count varies by unit. Pair with ATEN VW-series video wall accessories and input boards to complete your matrix configuration. Consult the video wall system planning guide if you are sizing a new installation or adding capacity to an existing controller.

Installation Notes

Operating humidity must stay within 0–80% RH non-condensing — standard for enclosed rack environments but worth confirming in any industrial or outdoor-adjacent enclosure. The board ships in carton lots of 4 units; if your deployment requires multiple output boards, ordering in full carton quantities avoids partial-carton handling. Firmware upgrades are distributed as a zip archive (vw884-v1.2.114.zip) and should be applied per the VW-series controller update procedure before commissioning outputs.
