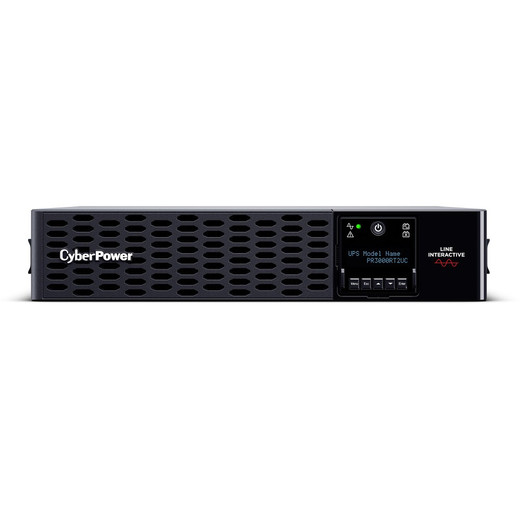

CyberPower PR3000RT2UC 3000VA Rack Uninterruptible Power Supply

Overview

The CyberPower PR3000RT2UC is a 3000VA/3000W line-interactive UPS designed for mid-scale surveillance, network, and server infrastructure that demands reliable battery backup without the cost and complexity of a generator. This 2U rack-mount unit delivers sine wave output—meaning connected equipment sees clean power, not approximated stepped waveforms—which matters when you're protecting multichannel NVRs, PoE switches, and access control panels that are sensitive to power distortion. The PR3000RT2UC includes eight NEMA 5-20R outlets (standard 20-amp receptacles) plus one NEMA L5-30R (30-amp dedicated outlet), giving you flexibility for both standard and higher-draw loads.

Key Features

• 3000VA/3000W capacity: Handles simultaneous loads from multiple NVRs, PoE switches, and access control equipment without brownout or shutdown—meaningful when infrastructure failure costs hours of downtime and forensic evidence gaps.
• Line-interactive topology with automatic voltage regulation (AVR): Corrects minor input voltage sags and surges (±5% output accuracy) without draining battery, extending runtime during fluctuating grid conditions common in industrial and commercial sites.
• Sine wave output: Critical for precision equipment. Switched-mode power supplies in modern surveillance recorders and network gear can overheat or malfunction on stepped/simulated waveforms; true sine wave eliminates that risk.
• Sealed lead-acid battery (4x 12V/9Ah): 36Ah total capacity; delivers 1.5 minutes at full 3000W load or 5.5 minutes at half load—enough breathing room to shut down gracefully, switch to a generator, or bridge a brief outage. Recharges to 90% in 3 hours after power returns, so you're ready for the next event quickly.
• 2430 Joules surge protection: Protects against lightning and utility switching transients—important when your switch or NVR is the weak link. This is baseline protection; it won't replace a dedicated surge panel, but it covers the UPS itself and reduces cascade failures.
• Rotatable LCD panel with real-time metrics: See load percentage, estimated remaining runtime, battery health, and input/output voltage without opening the cabinet. Useful for quick health checks during rounds or during a power event.
• Toolless battery access: When batteries need replacement (typically 3–5 years depending on environment and duty), you swap packs without tools—reducing downtime and letting field technicians handle swaps without special training.
• Multiple management interfaces: USB, serial, SNMP, relay, and EPO (emergency power-off) connectivity let you integrate with PowerPanel Business monitoring software, SNMP traps to your NOC, or simple relay closures for generator start logic. No vendor lock-in on integration.
• GreenPower UPS Bypass mode: During normal operation, can switch to bypass mode to reduce heat generation and extend UPS lifespan—useful in cooled server rooms where 24/7 UPS duty cycle would add unnecessary HVAC load.
• Fast transfer time (6ms typical, 13ms maximum): Switchover from grid to battery is imperceptible to most surveillance and network equipment; modern NVRs, switches, and access panels tolerate brief transients without dropped connections or log gaps.
• Rack or tower convertible mount: Ships ready for 2U rack installation, but can be converted to tower (floor-standing) if you don't have rack space—flexibility for retrofit installations or mobile command posts.

Integration & Compatibility

The PR3000RT2UC is vendor-agnostic—it supplies clean AC power to any surveillance recorder, PoE switch, or access control system that accepts 100–120 VAC input. PowerPanel Business software (included) runs on Windows or Linux and integrates with most monitoring platforms via SNMP or syslog. The NEMA L5-30R outlet accommodates high-draw equipment (such as a larger generator charger or redundant NVR); the eight 5-20R outlets handle standard network gear. Total connected equipment guarantee of $400,000 means if the UPS fails to protect connected gear, CyberPower covers the equipment loss—rare but worth noting.

Operating temperature range is 32–104°F (0–40°C), suitable for air-conditioned server rooms and most indoor surveillance command centers; outside this range, battery chemistry and converter efficiency degrade. Standard certifications (UL1778, CSA C22.2 No 107.3, FCC Class A, RoHS, ENERGY STAR) confirm the unit meets North American electrical and EMC requirements and is legal for commercial deployment.

What's in the Box

CyberPower PR3000RT2UC UPS unit, 10-foot NEMA L5-30P input power cord, USB cable, serial cable, installation bracket kit (for 2U rack rails), and PowerPanel Business software license.

Frequently Asked Questions

Q: What's the warranty on the PR3000RT2UC?

A: 3-year limited manufacturer warranty covering parts and labor on battery, converter, and control circuitry. Batteries degrade over time; after year 3, replacement batteries are available and relatively inexpensive compared to the UPS frame.

Q: Can the PR3000RT2UC power an entire NVR system—recorder plus switches plus access control—simultaneously?

A: Yes, if combined load stays under 3000W. A typical 16-channel 4K NVR draws 300–500W; a 48-port PoE switch with cameras draws another 300–600W depending on camera count and power draw. At that combined load, you'd have several minutes to shut down gracefully or switch to generator backup. Calculate your specific load and check against the 3000W rating.

Q: How often do I need to replace the batteries?

A: Sealed lead-acid batteries typically last 3–5 years in controlled environments (air-conditioned rooms). Heat, frequent discharge cycles, and overcharging shorten life. CyberPower's battery equalization feature helps extend lifespan by keeping cells balanced. Check battery voltage with PowerPanel software or the LCD panel annually; when available runtime drops below half, plan a replacement.

Q: Will the PR3000RT2UC work with a generator for automatic switchover?

A: The UPS has a relay output that can trigger a generator start signal when battery reaches a certain threshold. You'll need a compatible generator controller and wiring; this is not plug-and-play but is feasible with integrator planning. SNMP alerts can also notify your NOC to manually start a generator if preferred.

Q: Is the PR3000RT2UC NDAA Section 889 compliant?

A: CyberPower is a US-based manufacturer. The PR3000RT2UC is manufactured and sourced in compliance with NDAA requirements for federal contracting. Verify current certification status with CyberPower or your procurement team for the latest NDAA compliance documentation.

Q: What's the difference between the PR3000RT2UC and a smaller 1500VA UPS?

A: The PR3000RT2UC doubles capacity—3000VA vs 1500VA—allowing you to support larger simultaneous loads (more cameras, more PoE ports, redundant systems) and longer runtime at half load (5.5 min vs ~2.5 min). For single-NVR setups, 1500VA may suffice; for multi-building or high-availability sites, 3000VA is the standard choice.

James Everett

I've deployed the PR3000RT2UC in warehouse and retail command centers running multi-building surveillance networks, and the sine wave output combined with 6ms transfer time has eliminated the glitchy NVR reboots we used to see with cheaper UPS units. That 1.5-minute full-load runtime at 3000W seems short until you realize most outages last seconds—the battery buys you graceful shutdown and SNMP alerting, not 30-minute runtime. The key spec here is the sealed lead-acid battery: 4x 12V/9Ah gives you predictable, field-replaceable power, and the 3-hour recharge to 90% means you recover fast after a grid event.

Technical Highlights:

• 3000VA/3000W capacity with AVR: Handles 300–500W per NVR plus 300–600W per PoE switch without brownout; AVR keeps output stable during voltage sags (±5% tolerance), which is critical for access control and surveillance gear that drops offline on dirty power.
• Sealed lead-acid batteries (4x 12V/9Ah) with equalization: 36Ah total; delivers 5.5 minutes at half load—enough time to trigger a generator start relay or shut down an NVR safely. Equalization keeps cells matched, preventing one cell from failing early and dragging down the whole pack.
• 2430 Joules surge protection plus line-interactive design: Protects against utility transients and lightning strikes; doesn't drain battery during minor sags, so you reserve charge for actual outages. A straightforward protection scheme that integrators trust.
• Fast 6ms typical switchover time: Modern NVRs and PoE switches tolerate this without dropped connections. You won't see gaps in surveillance logs or access control timeouts.

Deployment Considerations:

• Battery lifespan is 3–5 years in air-conditioned spaces; if your command center runs hot or the UPS cycles frequently (poor utility power), budget for sooner replacement. Heat kills lead-acid batteries faster than anything else.
• The 1.5-minute full-load runtime is tight—don't rely on the UPS alone to bridge extended outages. Plan for generator integration or redundant power paths. The relay output makes this feasible, but wiring and generator logic are integrator responsibility.
• NEMA L5-30R outlet requires 30-amp branch circuit service; make sure your electrical design accommodates a dedicated 30-amp supply, or you'll limit that outlet to the remaining circuit capacity.

The PR3000RT2UC is the right choice for multi-building surveillance networks and retail/warehouse command centers where you need clean sine wave power, predictable battery replacement, and SNMP integration—not for 24/7 off-grid runtime or data centers demanding redundant UPS clusters. If your infrastructure can tolerate a 5-minute gap before a generator spins up, this unit earns its rack space.
