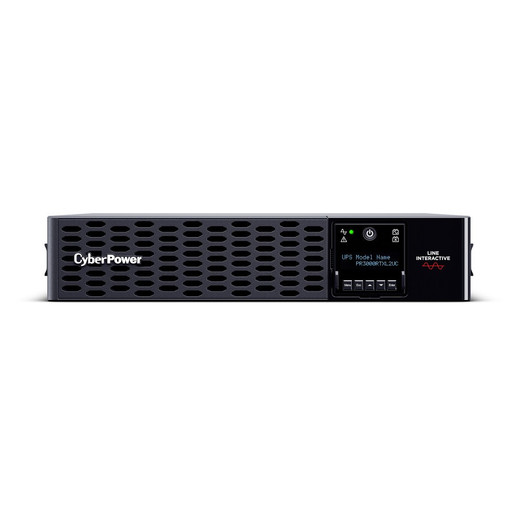

CyberPower PR3000RTXL2UC 3000VA/3000W 2U Rack Line-Interactive Sine Wave UPS
Overview
The CyberPower PR3000RTXL2UC is a 3000VA/3000W line-interactive rack UPS designed for server rooms, network closets, and security infrastructure racks where a true sine wave output and cloud-based management are non-negotiable. At 2U, it fits standard 19-inch enclosures without consuming valuable rack space, and its nine-outlet layout — eight NEMA 5-20R receptacles plus one L5-30R twist-lock — gives you the flexibility to feed a mix of standard ITE equipment and higher-draw devices from a single unit. For integrators building out Power & UPS infrastructure around IP cameras, NVRs, access control panels, and network switches, the PR3000RTXL2UC delivers the protection depth those always-on systems require.
Key Features
- True Sine Wave Output: Line-interactive UPS topologies that produce simulated (stepped approximation) waveforms can cause instability or premature wear in active PFC power supplies — the kind found in most modern servers, NVRs, and managed switches. The PR3000RTXL2UC outputs a pure sine wave on battery, so your network video recorders and servers ride through outages without waveform-induced stress.
- 3000VA / 3000W at Unity Power Factor: A power factor of 1.0 means the VA and watt ratings are identical — there is no derating gap. A 3000VA UPS with a 0.9 power factor delivers only 2700W to your load. Here, you get the full 3000W, which matters when provisioning protection for high-density PoE switch stacks or GPU-based analytics servers drawing close to nameplate.
- Wide Input Voltage Window (75–149V AC): The unit accepts input as low as 75V and as high as 149V before switching to battery. That 74-volt span means utility sags and brownouts common in older buildings or during peak demand won't unnecessarily cycle your batteries — the inverter corrects in place, extending battery life. Input frequency acceptance spans 47–63 Hz, covering both 50 Hz and 60 Hz utility environments.
- 13ms Transfer Time: When the input crosses outside the 75–149V window, the PR3000RTXL2UC switches to battery in 13 milliseconds. That is well within the ride-through tolerance of virtually all ITE equipment (typically 20ms+), so connected devices see no interruption.
- 2430J Surge Energy Rating with EMI/RFI Filtering: The 2430-joule surge suppressor absorbs transient spikes that slip past building-level surge protection. Combined with active EMI/RFI noise filtering, this matters most in environments with variable-speed motor loads or HVAC equipment sharing the electrical panel — noise that would otherwise appear as jitter or instability on sensitive network gear.
- Cloud Management: The integrated cloud connectivity allows remote monitoring and management of the UPS status, load levels, battery health, and event logs without requiring a local NMS or a dedicated network management card in the same rack. For multi-site security integrators managing distributed deployments, this is operationally significant — a site power event is visible centrally before a technician has to respond on-site.
- Nine-Outlet Configuration (8x NEMA 5-20R + 1x L5-30R): The eight 5-20R outlets handle standard 15A and 20A ITE loads. The single L5-30R twist-lock provides a secured high-current feed suited for a primary server or high-draw appliance where accidental disconnection is unacceptable. With a 15A maximum output current rating, plan your outlet loading accordingly — don't assume all nine outlets can be loaded simultaneously to nameplate.
- 57.5 dB Noise Level: At 57.5 dB(A), this unit is audible in a quiet office environment but acceptable in a dedicated server room or IDF closet. If the UPS is destined for an open-plan workspace or a quiet reception area, factor this in — it is not a silent unit under load.
- 192.5 BTU/h Heat Dissipation: Plan for approximately 193 BTU/h added to your rack's thermal load when the unit is under normal operation. For tightly loaded rack enclosures or rooms without dedicated CRAC units, this is a real number to include in your cooling calculations.
Integration & Compatibility
The PR3000RTXL2UC fits standard 19-inch rack enclosures at 2U height. The L5-30R input connection is a common feed point from PDUs and sub-panels in structured cabling environments. Cloud management integrates with CyberPower's PowerPanel platform for centralized UPS monitoring across multiple sites. For PoE switch stacks, NVR arrays, and access control server infrastructure, the unit's output voltage is regulated to 120V AC at 50/60 Hz — compatible with all standard North American ITE equipment. Graceful shutdown integration is available via the USB and serial interfaces typical of this UPS family, enabling connected servers and NVRs to execute clean shutdowns before battery depletion during extended outages. Pair this UPS with a quality rack enclosure and structured power distribution for a complete protected infrastructure stack.
Frequently Asked Questions
Q: Does the PR3000RTXL2UC produce a true sine wave on battery, or a simulated sine wave?
A: It produces a true sine wave output on battery. This is important for active PFC power supplies found in modern servers, NVRs, and managed switches — simulated waveforms can cause these supplies to behave erratically or shut down during a transfer event.
Q: What is the input voltage range the PR3000RTXL2UC will accept before switching to battery?
A: The unit operates on utility input from 75V to 149V AC without switching to battery, correcting voltage through its line-interactive AVR circuitry. Only when input falls outside that window does it transfer to battery in approximately 13 milliseconds.
Q: What outlets does the PR3000RTXL2UC provide and what loads can they support?
A: The unit provides eight NEMA 5-20R receptacles and one NEMA L5-30R twist-lock outlet. The 5-20R outlets accept standard 15A and 20A plugs. The L5-30R provides a secured high-current connection for larger loads. Maximum output current is 15A — plan your connected load across all outlets accordingly.
Q: What is the surge energy rating on the PR3000RTXL2UC?
A: The surge suppressor is rated at 2430 joules, with active EMI/RFI filtering included. This handles transient spikes from shared electrical panels with motor loads, HVAC equipment, or other inductive sources.
Q: How is the PR3000RTXL2UC monitored remotely?
A: The unit includes integrated cloud connectivity for remote monitoring via CyberPower's PowerPanel platform. Load status, battery health, and event logs are accessible without a dedicated local network management card.
Q: How loud is the PR3000RTXL2UC during normal operation?
A: The unit is rated at 57.5 dB(A). This is audible — appropriate for a dedicated server room or IDF closet, but noticeable in an open or quiet office environment.
When I spec a UPS for a security infrastructure rack, the first question is always waveform type — and the PR3000RTXL2UC gets that right with a true sine wave output. That 13ms transfer time combined with sine wave output means your active PFC power supplies in NVRs and managed PoE switches won't even flinch during a utility event. This is the spec that separates a UPS you can actually deploy under production load from one that creates its own incidents.
Technical Highlights:
- Unity Power Factor (PF=1.0): 3000VA equals 3000W — no derating. When you're sizing protection for a fully loaded 48-port PoE switch stack drawing 2400W plus an NVR at 400W, that gap matters and this unit closes it.
- 75–149V Input Range: A 74-volt acceptance window means the batteries stay out of the discharge cycle during brownouts — common in commercial facilities sharing panels with HVAC. Longer battery life, fewer nuisance transfers, lower maintenance overhead.
- 2430J Surge + EMI/RFI Filtering: The combination of 2430-joule surge absorption and active noise filtering is relevant in any rack co-located with VoIP gateways or video analytics appliances sensitive to power line noise. It is not just about spikes — the filtering matters daily.
Deployment Considerations:
- The L5-30R input requires a matching outlet on your PDU or sub-panel — verify your rack PDU feed before specifying. A 5-20P input cord will not work here; confirm your panel circuit is wired for L5-30.
- At 57.5 dB(A), the fan noise is real. This unit belongs in an equipment room, not in a reception desk credenza or open-plan IT alcove — factor that into site surveys.
The PR3000RTXL2UC is the right specification for a mid-density security infrastructure rack in a commercial facility: an NVR cluster, a managed PoE switch stack, an access control server, and a cloud-managed edge compute node — all under one protected, cloud-visible power circuit.
