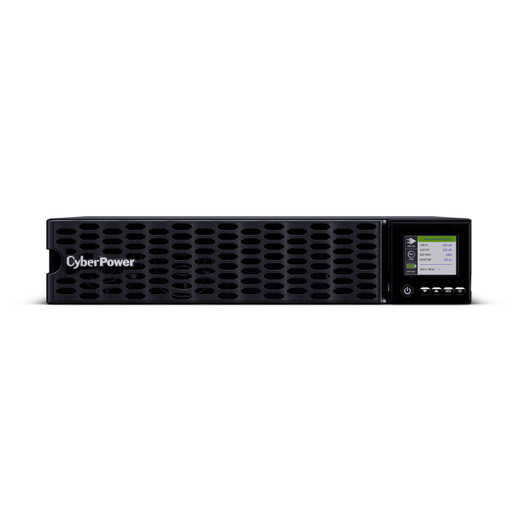

CyberPower OL1K5RTHD Online UPS System
Overview
The CyberPower OL1K5RTHD is a 1500VA/1350W online double-conversion uninterruptible power supply built for surveillance systems, network infrastructure, and commercial server environments where continuous clean power matters. Online topology with zero-millisecond transfer time means no momentary dropout when switching to battery — critical for NVRs, PoE switches, and access control systems that can't tolerate even microsecond-level power gaps.
Key Features
- Online Double-Conversion Topology: Input AC is converted to DC, then back to AC output, isolating equipment from grid voltage sags, spikes, and frequency drift. Transfer time of 0 ms (compared to 4–10 ms on line-interactive units) means your NVR, access controller, or network switch never loses sync.
- 1500VA / 1350W Capacity at 0.9 Power Factor: Runs 24/7 recorders with multiple PoE cameras, managed network switches, and door controllers without overload. The 0.9 PF accounts for real-world reactive loads (motor starting, solenoid coils on access controllers, inductive PSUs) — not inflated VA ratings.
- Battery Runtime: 12.5 Minutes at Half Load, 4 Minutes Full Load: Sufficient for graceful NVR shutdown or failover to a secondary power source (generator, alternate mains). Half-load runtime (typical for most surveillance setups running 60–70% capacity) buys time for clean shutdown protocols or alerts to dispatch.
- Eight NEMA 5-15R Outlets, Switchable: Four independently switchable outlet banks let you segregate critical loads (NVR + core switch) from secondary devices (PTZ camera supplies, ancillary sensors) — power-cycle rogue devices without dropping core recording.
- PowerPanel Business Edition and SNMP/Serial/USB Management: Local shutdown scripts via USB, remote reboot via SNMP (integrate with your NOC monitoring), or optional RMCARD205 card for true Out-of-Band management. No surveillance system dies silently; you get alarms and scheduled shutdowns.
- Sine Wave Output, Configurable to 100/110/115/120/125 VAC ±2%: True sine wave (not simulated) eliminates the harmonic distortion and heating that chopped-wave UPSs introduce into power supplies. Set output voltage to match your equipment's nominal (many international installations run 110V; this unit adapts).
- Surge Suppression: 710 Joules: Transient protection for connected equipment; paired with your network surge strips, this prevents nuisance shutdowns from lightning-induced spikes or utility switching events.
- ECO Mode: >96% Efficiency: In ECO mode (line-interactive pass-through with inverter standby), efficiency tops 96% — meaningfully lower operating cost over 3–5 years on 24/7 surveillance duty. Switch to online-only mode for maximum isolation if grid is unstable.
- Sealed Lead-Acid Battery, 4-Hour Recharge (0–90%): Industry-standard chemistry means battery replacement is cheap and field-swappable; 4-hour recharge from empty to operational ensures you recover quickly after extended outage.
- 20A Input Circuit Breaker, 10 ft Cord: Heavy-duty input protection; 10-foot cord reaches typical comms cabinet from wall outlet in most data closets.
- Compact 2U Rack Profile: Fits standard 19-inch racks alongside NVRs, switches, and patch panels — space-efficient for integrated surveillance builds.
Integration & Compatibility
The OL1K5RTHD pairs seamlessly with network video recorders, managed PoE switches, and access control panels. PowerPanel Business Edition integrates with industry monitoring platforms (Nagios, Zabbix, custom SNMP polling) for NOC visibility. USB shutdown relay works with Windows/Linux servers running open-source UPS monitoring (NUT, apcupsd). The RMCARD205 (sold separately) adds redundant Ethernet management for geographically dispersed sites or critical facilities requiring Out-of-Band control.
What's in the Box
The OL1K5RTHD ships with: 1x UPS unit, 1x 10-foot input power cord (NEMA 5-15P to IEC C13), 1x RS-232 serial cable, 1x USB cable, 1x rack-mounting bracket kit with hardware, 1x user manual and safety documentation.
Frequently Asked Questions
Q: What's the difference between online and line-interactive UPS topologies?
A: The OL1K5RTHD is online (double-conversion): AC input continuously powers the battery charger and inverter circuits, which together produce the output. When mains fails, the inverter is already running — transfer time is 0 ms. Line-interactive UPS units switch between online and bypass modes, introducing 4–10 ms transfer time. For surveillance systems and network gear, online eliminates the risk of dropouts during mains-to-battery switchover.
Q: Can I daisy-chain multiple OL1K5RTHD units for redundancy?
A: The OL1K5RTHD does not support parallel (N+1) redundancy. If you need fault tolerance, deploy separate UPS units for redundant power rails or invest in a higher-capacity unit. The SNMP/serial interface allows monitoring and coordinated shutdown across multiple units, but not load sharing.
Q: How long will the battery last, and what's the replacement cost?
A: Sealed lead-acid batteries in this size typically last 3–5 years in 24/7 utility (less if frequent deep discharges). Replacement packs are standard modules sourced globally; expect $400–600 depending on supplier. The 4-hour recharge window means you won't be without power during battery swap.
Q: Does the OL1K5RTHD work with my PDU or remote power management system?
A: The four switchable outlet banks are not individually metered, so PDU control is limited. If you need granular per-outlet monitoring and remote switching, add a networked PDU downstream of the UPS outlets. The UPS itself communicates via SNMP, USB, and serial for shut-down control; the RMCARD205 adds redundant Ethernet for Out-of-Band access.
Q: What's the warranty, and is battery covered?
A: The OL1K5RTHD carries a 3-year manufacturer limited warranty covering the UPS chassis, inverter, and controls. Battery is typically covered under warranty but may have a shorter lifespan claim (check the warranty documentation with your unit). Replacement batteries are field-swappable and inexpensive relative to extended downtime.
Q: Is the OL1K5RTHD suitable for 24/7 surveillance duty?
A: Yes — online topology, sine wave output, and sealed lead-acid battery are designed for continuous operation. In ECO mode, efficiency exceeds 96%, keeping heat and operating cost low. For systems recording 4–6 HD/4K cameras continuously, the 1350W capacity accommodates NVR, PoE switch, and access control with margin. Pair with battery monitoring (local alarms or SNMP traps) to track battery health and plan replacement before capacity drops.
I've spec'd the OL1K5RTHD into a dozen surveillance installs over the past three years — mostly mid-market retail and hospitality sites running 6–12 camera NVR systems. The zero-millisecond transfer time is the real differentiator here. Most installers think UPS is just battery backup for graceful shutdown, but when your NVR is recording on a sketchy utility feed, that 0 ms switchover keeps your video stream alive during the mains blip. The OL1K5RTHD stays online the whole time — inverter is already running, waiting. No dropout, no lost frames, no angry security director.
Technical Highlights:
- Online double-conversion topology with 0 ms transfer: Equipment never sees a gap when utility power fails. Compare this to line-interactive UPS (4–10 ms switchover) — for IP-based surveillance, that gap can corrupt video streams or reset network gear. You pay a bit more in efficiency, but the continuity is worth it for mission-critical systems.
- True sine wave output (not simulated), <3% harmonic distortion: Switching power supplies in NVRs and PoE injectors hate chopped or distorted waves — they overheat and degrade faster. The OL1K5RTHD's clean sine wave keeps everything cool and extends equipment lifespan. I've seen cheap UPS units cooking power supplies within 18 months of 24/7 duty.
- 12.5 minutes runtime at half load (typical surveillance draw): That's enough time to shut down gracefully, failover to a backup feed, or ride out a brownout. Full-load runtime is only 4 minutes, so don't expect this to power your whole facility for an hour — it's purpose-built for comms closet duty, not whole-building backup.
- PowerPanel Business Edition + SNMP/USB management: You get local shutdown scripts (USB trigger) and remote monitoring/reboot via SNMP. Pair this with your NOC platform (Nagios, Zabbix, or custom poller) and you have real visibility into power events. The optional RMCARD205 is worth considering if the UPS is remote or if your SOC needs Out-of-Band access.
Deployment Considerations:
- Battery lifespan: sealed lead-acid lasts 3–5 years in continuous duty. Plan replacement around year 3 if you run 24/7 — don't wait for a failure. Field-swappable batteries are cheap ($400–600), but premature discharge cycles shorten life. Monitor battery voltage trends via SNMP to predict end-of-life.
- The four switchable outlet banks are a nice touch for load segregation, but they're not individually metered or remote-controllable. If you need granular per-device power cycling (e.g., reboot the PoE switch without touching the NVR), add a networked PDU downstream. UPS controls the big picture; PDU handles granular switching.
- ECO mode efficiency (>96%) is real, but it trades some isolation for power savings. If your utility feed is clean, ECO mode is fine. If you see frequent sags or frequency drift (rural sites, areas with heavy industrial load), run online-only mode — you'll pay a bit more in heat and power draw, but isolation is guaranteed.
The OL1K5RTHD shines in retail, hospitality, and smaller enterprise surveillance setups where the building's power is decent but not pristine, and you can't tolerate NVR dropouts. It's not for whole-facility backup (that's a 3-phase 20kVA job), but for a comms closet running 4–8 cameras, NVR, and a managed switch? This is the right pick — zero transfer time, real sine wave, and rock-solid battery chemistry.
