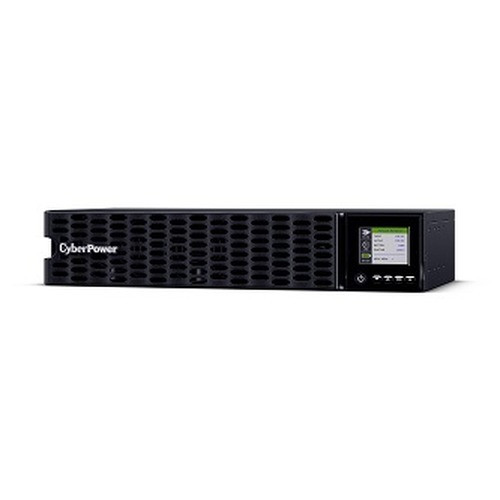

CyberPower OL750RTHD Online Double-Conversion UPS
The CyberPower OL750RTHD is a 750VA online UPS designed for surveillance systems, access control infrastructure, and small-to-medium network equipment installations where continuous power conditioning is non-negotiable. Online double-conversion topology means the battery is always in the discharge path—every volt going to your equipment passes through the inverter first, eliminating any transfer time (0 ms switchover) and protecting against utility sags, spikes, and frequency drift that would otherwise degrade recorder uptime or cause edge-storage systems to stumble mid-write.
Key Features
- Online Double-Conversion Topology: Battery permanently in-line between utility and load. Zero-millisecond transfer time means no brownout glitch, no momentary voltage drop—critical when your NVR or access control panel cannot tolerate even a microsecond of uncertainty. Most rack UPS units use line-interactive or standby designs that switch on fault; this one doesn't.
- 750VA / 750W Capacity: Sufficient for a 4–8 camera NVR setup (typically 300–500W) plus network switches and modem, with headroom for simultaneous startup surge. At full load, you get 5 minutes of battery runtime—enough for a controlled shutdown or failover to a backup internet link. At half load (375W), runtime extends to 14 minutes, giving technicians time to respond to an alert.
- Eight NEMA 5-15R Outlets: Typical commercial grounded outlets. No proprietary connectors. Plug in your recorder, your Ethernet switch, a modem, and a field-mounted camera PSU directly—no adapters required. Each outlet is independently manageable via PowerPanel® Business Edition software.
- Pure Sine Wave Output: 98–102% voltage regulation (configurable ±2%) with true sine waveform. Surveillance recorders, network gear, and label printers operate in native mode—no harmonic distortion that would stress power supplies or introduce noise into analog audio lines. Measurably quieter operation in mixed-technology environments.
- PowerPanel® Business Edition + SNMP Management: Web-based remote shutdown, outlet on/off control, battery health monitoring, and event logging from anywhere. USB and serial ports ship standard; optional RMCARD205 adds dedicated Ethernet for out-of-band management. Useful when your primary network is down and you need to verify UPS status or initiate a controlled load shedding sequence.
- Three-Year Limited Warranty: Covers battery replacement and parts. Most installations see 4–5 battery recharge cycles per power event in real-world surveillance deployments; the warranty aligns with typical battery lifecycle (3–5 years depending on local utility stability and temperature swings).
- Low Audible Noise Profile: 18.1 dBA in ECO mode (minimal load, battery idle), rising to 42.8 dBA online at full load. Wall-mounted in a server room or comms closet, the unit will not dominate ambient sound—important for facilities where technicians spend time troubleshooting or where acoustic creep matters to adjacent tenants.
- 2U Rack Form Factor: Standard 19-inch rack mount. Takes up two rack units in your equipment cabinet alongside your recorder, switch, and patch panel. Weight is 27.12 lbs; mounting hardware and rail extensions are typically bundled or widely available.
Integration & Compatibility
The OL750RTHD speaks USB (direct to Windows/Linux), serial (legacy modem or terminal servers), and SNMP (enterprise monitoring systems like Nagios, Zabbix, or PRTG). If your VMS or access control system has built-in UPS monitoring via SNMP (many commercial recorders do), you can tie this unit into your existing alerting—battery low, transfer event, or overload conditions can trigger a page or log entry without additional middleware. PowerPanel® Business Edition is available for Windows and Linux; setup is straightforward (IP address, SNMP community string, outlet naming) and doesn't require specialist training.
Frequently Asked Questions
Q: How long will the OL750RTHD power a typical 4-camera NVR system?
A: Most mid-range 4-bay NVRs draw 250–350W. At that load, the OL750RTHD provides approximately 12–18 minutes of runtime before battery depletion. This is sufficient for a controlled shutdown, network failover notification, or temporary camera stream suspension while awaiting utility restoration.
Q: What is the difference between online double-conversion and line-interactive UPS topologies?
A: Online UPS (this model) keeps the battery in the discharge path at all times with zero-millisecond transfer to battery in the event of a fault. Line-interactive units sit idle and rely on a relay transfer during utility anomalies—typically 2–10 ms of switching delay. For surveillance recorders and network equipment, online topology eliminates the risk of transient dropout affecting video streams or file-write operations.
Q: Can the OL750RTHD be monitored remotely if my primary network is down?
A: Yes. The USB and serial ports on the rear panel allow direct connection to a terminal server or modem, or installation of the optional RMCARD205 adds a dedicated Ethernet port for out-of-band (secondary network) management. This ensures you can query battery state or shut down equipment even if your surveillance network is compromised.
Q: Is the three-year warranty inclusive of battery replacement?
A: Yes. The three-year limited warranty covers the internal battery, inverter circuit, and enclosure. After three years, replacement batteries are available as field-swappable cartridges and are typically cost-effective compared to purchasing a new unit.
Q: What is the typical recharge time after a full discharge?
A: Approximately 4 hours from a fully depleted state to full charge. This is typical for a 750VA sealed lead-acid battery in a compact 2U chassis; thermal constraints and charge circuit design limit faster charging to prevent lifespan degradation.
Q: Does the OL750RTHD support daisy-chaining or redundancy configurations?
A: No. The OL750RTHD is a standalone unit. For high-availability mission-critical sites, two OL750RTHD units can be deployed on separate circuits with manual load balancing or a separate PDU/ATS (Automatic Transfer Switch) to coordinate failover. Consult a pre-sales engineer for multi-unit configurations.
The OL750RTHD is built for environments where you cannot afford a single transfer spike or voltage sag to interrupt your recording stream or access control authentication. I spec this unit regularly into surveillance backbones where the NVR or control panel sits more than a few cable runs from the main panel—especially in older commercial buildings where utility stability is unpredictable. The zero-millisecond switchover (online double-conversion architecture) combined with a true sine-wave output means your equipment sees only clean, regulated power.
Technical Highlights:
- Online Double-Conversion Topology with 0 ms Transfer Time: Unlike line-interactive units that switch on fault (2–10 ms delay), the OL750RTHD keeps the inverter between utility and load at all times. Your NVR never experiences a brownout glitch, which is the difference between a clean 24-hour event log and a corrupted file on the RAID array.
- Pure Sine Wave Output (98–102% regulation, ±2% configurable): Harmony with network equipment—no harmonic distortion creeping back into analog audio circuits or straining power-supply capacitors. In facilities with mixed analog/digital security systems, this spec matters more than you'd expect.
- SNMP + USB + Serial Management (optional RMCARD205 for dedicated Ethernet): Tie this into your existing PRTG or Nagios stack; the OL750RTHD can log battery health, transfer events, and overload conditions. Out-of-band management via the optional card means you can query UPS state even if your primary network backbone is compromised.
- 5-Minute Runtime at Full Load (14 Minutes at Half Load): Not forever, but long enough for controlled shutdown, failover notification to a cloud backup service, or temporary suspension of non-essential streams (PTZ tracking, bitrate boost) until power returns. Half-load runtime of 14 minutes is realistic for a typical 4-camera NVR with network gear.
Deployment Considerations:
- Eight NEMA 5-15R outlets is snug if you're trying to power NVR, switch, modem, and a rack-mounted camera PSU simultaneously—plan outlet allocation in advance. A short power strip or distributed PDU footprint saves frustration during initial install.
- Recharge time is 4 hours from full depletion. In environments with frequent blackouts (construction areas, aging industrial parks), consider a second unit on a separate utility feed or a larger capacity model if your site experiences more than one outage per month.
- The 27.12-pound unit fits standard 19-inch rack rails but requires two rack units of vertical space. Verify rack clearance above and below for airflow; thermal dissipation at full online load is 229 BTU/hr—not trivial in an enclosed cabinet without supplemental cooling.
Deploy the OL750RTHD when your surveillance infrastructure cannot tolerate even brief power instability—mid-market retail chains, corporate campuses with aging utility feeds, and access control systems in sensitive facilities where every transfer event triggers an audit. It is not the cheapest option, but it eliminates a class of recorder dropout and corruption issues that standby or line-interactive units cannot address.
