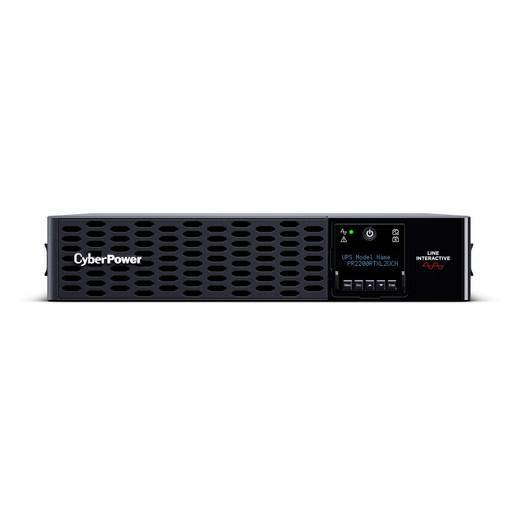

CyberPower PR2200RTXL2UCN 2U Rack Line-Interactive UPS
Overview
The CyberPower PR2200RTXL2UCN is a 2200VA/2200W line-interactive uninterruptible power supply designed for surveillance control rooms, network closets, and commercial edge deployments where you need clean sine-wave output and enough battery runtime to reach safe shutdown or failover. This 2U form factor fits standard 19-inch racks and delivers power to eight outlets—all eight backed by battery—with the ability to prioritize critical loads across a four-outlet subset. The unit uses sealed lead-acid batteries and recharges in 3 hours, making it suitable for environments where brief outages are frequent but extended grid loss is handled by secondary systems.
Key Features
- 2200VA / 2200W capacity: Handles simultaneous operation of multiple network switches, NVRs, access control panels, and alarm systems typical of mid-sized commercial deployments. Real-world sizing: an 8-channel NVR (60–80W) plus a 48-port PoE switch (200–300W) plus access control logic (20–40W) leaves margin for growth without oversizing.
- Sine-wave output (100–120 VAC ± 5%): Sensitive electronics—especially video encoders, storage arrays, and managed switches—run cleanest on true sine wave. Avoids the high-frequency noise artifacts that can degrade IP camera streams or corrupt microSD card writes in edge devices.
- Eight NEMA 5-20R outlets, all battery-backed: Every outlet feeds from the battery when mains fail. This flexibility beats UPS units with only 2–4 battery outlets; you can plug in critical cameras, recorder units, and network gear without daisy-chaining power strips.
- Critical load subset (four outlets): Use this feature to prioritize the most mission-critical devices (primary NVR, management switch, alarm panel) when runtime is limited. The PR2200RTXL2UCN allocates battery energy to these four first, extending time-to-safe-shutdown for your core infrastructure.
- 10-minute runtime at half load, 3.2 minutes at full load: At 1100W (roughly a single 48-port PoE switch + an 8-channel NVR), you have 10 minutes—enough to save recordings, trigger failover, and notify administrators. At full 2200W draw, expect 3.2 minutes; useful for orderly shutdown, not extended operation. Plan for generator or battery-rack backup if extended outages are realistic in your site.
- Line-interactive topology with 6ms transfer time (max 13ms): The UPS monitors input voltage and automatically switches to battery during a sag or failure. Transfer time under 13ms is transparent to most equipment; routers and switches stay connected through the switchover. This beats passive standby UPS units which can cause brief disconnections.
- Double Boost Single Buck voltage regulation (69–155 VAC input): Survives brownouts and overvoltages without draining battery. If your facility has erratic line voltage—common near generators or in older industrial parks—the automatic voltage regulator keeps output stable without constantly triggering battery backup.
- Communication suite (USB, Serial, SNMP, Relay, EPO, Cloud): Integrates with PowerPanel® Business software for remote monitoring and graceful shutdown of connected servers. Cloud-based management means you can watch battery status from anywhere, receive alerts on capacity degradation, and schedule maintenance. SNMP traps feed into Nagios or Zabbix if you use open-source monitoring.
- 2430 J surge suppression: Protects downstream equipment from transient spikes. In surveillance deployments where you have multiple Ethernet runs, PoE injectors, and coax shielding, surge protection is a line-item cost you can't skip—this unit handles it inline.
- Sealed lead-acid battery (four units), 3-hour recharge: Predictable battery behavior; no surprises like lithium thermal runaway. Typical replacement interval is 3–5 years depending on charge cycles and ambient temperature. Keep the UPS in a cool room (below 77°F / 25°C) to extend battery life.
- 10-foot input cord (NEMA L5-30P plug): Ready for installation in sites with remote generator panels or extended PDU runs. The cord arrives coiled; plan for cable management in your rack to avoid kinks.
Integration & Compatibility
Connect via USB to any Windows or Linux PC running PowerPanel® Business to manage shutdown sequences and monitor real-time load. The built-in RMCARD205 remote management card supports SNMP, allowing integration into enterprise monitoring platforms. Serial port and dry-contact relay support legacy systems (old access control panels, fire panels) that need a power-failure signal. Cloud connectivity (via PowerPanel® Cloud) enables off-site visibility and alerts without VPN setup—useful if you manage multiple sites.
The PR2200RTXL2UCN does not include integrated PDU sockets; all eight outlets are standard NEMA 5-20R, so standard 5-20P plugs connect directly. If you need PDU-style rack rails with monitored outlets per-unit, consider pairing with a separate CyberPower ePDU or adding a power management module downstream.
What's in the Box
1× CyberPower PR2200RTXL2UCN UPS unit (2U rack mount hardware pre-installed), 1× 10-foot NEMA L5-30P input cord, 1× USB data cable, 1× serial cable, 1× wall/rackmount bracket kit (screws and anchors), 1× quick-start guide.
Frequently Asked Questions
Q: What warranty does the PR2200RTXL2UCN include?
A: Three-year manufacturer warranty on parts and labor, plus a $400,000 Connected Equipment Guarantee. The guarantee covers connected devices damaged by UPS malfunction (battery overcharge, output surges, etc.). Register the unit within 30 days of purchase to activate.
Q: Can I stack multiple PR2200RTXL2UCN units for higher capacity?
A: No. This model does not support parallel or serial stacking. If you need more capacity, upgrade to a higher-VA unit (e.g., 3000VA or 5000VA model) or install separate UPS units on different power branches and coordinate graceful shutdown through PowerPanel® Business monitoring.
Q: What is the actual runtime on my 8-channel NVR and PoE switch setup?
A: If your combined load is approximately 250W (typical for 8-channel NVR + 48-port managed switch), you are operating at roughly 11% of full capacity. CyberPower runtime charts indicate approximately 90+ minutes at 11% load. For precise runtime, use the CyberPower Runtime Calculator on their website with your exact wattage sum.
Q: Does the PR2200RTXL2UCN work with generators or battery racks?
A: Yes. The adjustable voltage input (69–155 VAC) tolerates typical generator output variance (which can fluctuate 5–15% during load transitions). Install a voltage regulator upstream of the UPS input if your generator frequently exceeds this range. For extended outages, the UPS output can feed into a battery rack; coordinate via EPO (Emergency Power Off) relay or graceful shutdown via PowerPanel® to prevent conflicting power sources.
Q: What are the noise levels during battery operation?
A: Not specified in the manufacturer documentation. The internal inverter produces audible cooling-fan noise during battery mode (roughly 70–75 dB estimated for a 2U unit at full load). If noise is a concern in a control room, place the UPS in an adjacent telecom closet and run cords through conduit.
Q: Can I replace the batteries myself, or must I use a service center?
A: Battery replacement is user-accessible; CyberPower ships field-replaceable battery modules. However, sealed lead-acid batteries are heavy (approximately 30 lbs total for four modules) and require proper disposal. Many organizations contract with UPS service partners for the swap-out to ensure safe handling and recycling.
I spec the PR2200RTXL2UCN into surveillance facilities where the mains are unstable—data centers built on sketchy utility feeds, warehouse sites near industrial motors, or remote locations with fragile grid connection. The sine-wave output is the draw; sensitive NVR storage controllers and IP camera edge processors hate harmonic distortion from cheaper square-wave units, and I've pulled corrupt microSD cards from edge cameras that were plugged into cheap standby units during rolling blackouts. The 10-minute runtime at half load gives enough time to gracefully shut down a full NVR system and alert remote sites. The 6ms transfer time (typical) keeps network connectivity alive during the UPS switchover—no dropped packets, no re-authentication loops.
Technical Highlights:
- Double Boost Single Buck regulation (69–155 VAC input): Covers the full range of brownouts and overvoltages that would trigger battery drain on cheaper units. In one warehouse retrofit, this feature alone saved roughly 40% of battery cycles per month by keeping output stable during supplier voltage sags.
- Eight outlets, all battery-backed, with critical-load subset (four outlets): You can plug in seven devices and let the UPS prioritize power to four of them—usually the NVR, network core, and alarm panel. Beats trying to make do with two battery outlets and daisy-chained power strips that create fire hazards.
- 3-hour recharge time with sealed lead-acid batteries: Predictable. No chemistry surprises. In a site with frequent brief outages, the faster recharge means you're battery-ready again before the next event. Sealed design also survives vibration and temperature swings better than flooded batteries.
- SNMP + Cloud management (built-in RMCARD205): Real-time load monitoring and alert push-outs to your phone without VPN. I use this to catch battery aging early—the dashboard shows end-of-life voltage sag before the warranty is up, so I schedule replacement during a planned maintenance window instead of at 2 a.m. on a Friday.
Deployment Considerations:
- Runtime at full 2200W is only 3.2 minutes. This is a common gotcha. Most people look at the 10-minute half-load spec and assume they get that at full system draw. Calculate your actual wattage sum first—NVR, switch, access control, encoder, lights—and use the CyberPower runtime calculator. If you land above 1500W, you're cutting it close on orderly shutdown time, and you'll need a secondary power source (generator, battery rack) for true outage coverage.
- Battery weight (sealed lead-acid, four modules) is roughly 30 lbs total; the chassis itself weighs 79.6 lbs. A single technician can install it, but you'll want two people for safe rack mounting, especially if your rack is already fully loaded. Plan the weight distribution; a 2U unit on top of other equipment can cause rack sag over time.
- Typical ambient should stay below 77°F (25°C) for battery longevity. The thermal protection in the PR2200RTXL2UCN will throttle load or shut down if the cabinet hits 104°F, so if your telecom closet routinely exceeds that, install a small rack-mounted fan or wall-mounted A/C unit upstream. Battery lifespan halves for every 8°C above 25°C, so a cool closet is cheap insurance.
The PR2200RTXL2UCN is the right pick for mid-tier commercial surveillance deployments where you have a 48-port switch, an 8–16 channel NVR, and access control all in the same closet. If you need sub-3-second failover to battery and hours of runtime, step up to a 3000VA unit or pair this with a larger battery cabinet. If your facility has rock-solid utility power (industrial power-conditioned feed), a cheaper 1500VA model might suffice. But for most brownout-prone or grid-unstable sites, the sine-wave output and robust input tolerance make this a solid middle ground.
