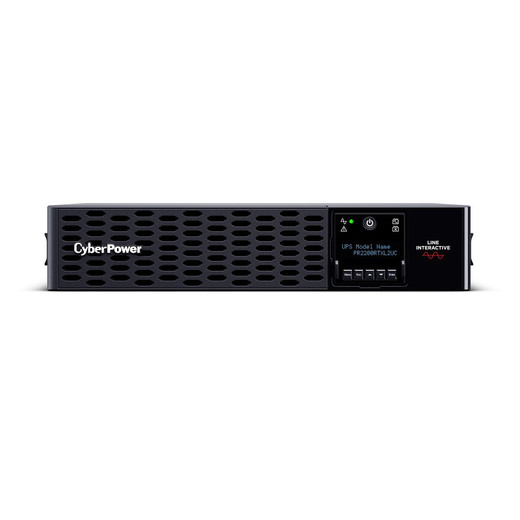

CyberPower PR2200RTXL2UC 2200VA/2200W 2U Rack UPS
Overview
The CyberPower PR2200RTXL2UC is a 2200VA/2200W line-interactive sine wave UPS designed for rack-mounted surveillance, network, and critical IT infrastructure where consistent uptime and clean power matter. This 2U form factor delivers eight NEMA 5-20R outlets, four of which are battery-backed, and includes cloud-enabled management through PowerPanel® Business software — essential when you need remote monitoring and automated failover for distributed security systems across multiple sites.
Key Features
- 2200VA/2200W capacity with sine wave output: Pure sine wave (not simulated) means connected equipment receives conditioning as clean as utility power. Surveillance NVRs, network switches, and access-control panels tolerate sine wave UPS output without the electromagnetic noise that can corrupt video streams or degrade network performance on cheaper square-wave alternatives.
- Line-interactive topology with automatic voltage regulation (AVR): Double Boost and Single Buck circuitry corrects voltage fluctuations between 75–149 VAC without drawing from the battery — extends runtime and battery life on the 4-cell sealed lead-acid pack (12V/9Ah each). In unstable power regions or during brownouts, you get ride-through without battery drain.
- 8 outlets: 4 battery-backed, 4 surge-only: Partition your load strategically — keep critical NVR, core switch, and access-control reader on battery; run non-essential peripherals (office monitors, printers) on surge protection only. When battery kicks in, you maintain video and access control while shedding non-critical loads automatically.
- Runtime: 10 minutes at half load, 3.2 minutes at full load: Sufficient time to cleanly shut down NVRs, flush buffers, and close database transactions on a four-camera to eight-camera system. If your site experiences frequent brief outages, this is the margin you need to avoid corruption or missing footage.
- 4 ms transfer time, 50/60 Hz ±1% on-battery frequency: Sub-5ms switching means PoE switches, IP cameras, and networked access panels see no perceptible glitch — no dropout resets that trigger false alarms or force camera re-initialization.
- USB, Serial, SNMP, EPO, and Cloud management: PowerPanel® Business software monitors battery health, load percentage, and estimated runtime from a central console. Cloud connectivity enables alerts to a phone or email when the unit is on battery, power is critical, or maintenance is due — no need to remember to check the unit manually every month.
- $400,000 Connected Equipment Guarantee: If this UPS fails and damages attached equipment, manufacturer covers up to $400K in repair/replacement. Reduces your liability if a power event cascades into a camera failure or NVR crash.
- 2430 J surge suppression with 30 A circuit breaker: Protects all eight outlets from transient spikes and overvoltage events common in areas with lightning or heavy industrial switching. If a surge exceeds the breaker threshold, the unit disconnects before damage reaches your video or access-control gear.
- 3-Year Limited Warranty and sealed lead-acid battery: Typical recharge time is 3 hours — after a power event, the unit returns to full battery capacity in time for the next shift. Sealed batteries require no maintenance and don't emit gas in server rooms.
- 2U rack height, 17.1" width, 79.6 lbs: Fits standard 19-inch relay racks alongside your NVR and network switch. Weight is manageable for two-person mounting, and the 10-foot input cord (NEMA L5-30P plug) reaches most facility breaker panels without additional extension.
Integration & Compatibility
The PR2200RTXL2UC plugs into any standard 120 VAC 30 A circuit and works with any equipment that accepts 100–120 VAC input — no vendor lock-in. PowerPanel® Business integrates with SNMP monitoring platforms, allowing third-party NMS tools (Nagios, Zabbix, Icinga) to track UPS health as part of your overall infrastructure health dashboard. Cloud connectivity means you can monitor battery status from your mobile device without VPN access.
Frequently Asked Questions
Q: Can I use the PR2200RTXL2UC in a non-rack environment?
A: Yes. The unit is form-factor agnostic and can sit on a shelf or table. However, it is rack-optimized (2U height), so shelf mounting wastes space and hides the LED status indicators. Racks are preferred if you have the cabinet.
Q: What's the difference between the 4 battery-backed outlets and the 4 surge-only outlets?
A: Battery-backed outlets draw from the internal sealed lead-acid battery during a power outage, keeping your NVR, network switch, and access-control reader online. Surge-only outlets receive power only when utility power is present and provide transient protection but zero battery runtime. Use surge-only outlets for non-critical devices.
Q: How long does the battery last if I'm running the NVR at full power?
A: At full load (2200W), runtime is 3.2 minutes. At half load (1100W — typical for a 4-camera NVR + network gear), you get 10 minutes. This is enough time to shut down cleanly or ride through a brief outage; it is not meant for hours of operation.
Q: Does the PR2200RTXL2UC work with smart PDU management?
A: The unit does not integrate with PDU-specific protocols, but PowerPanel® Business can send SNMP traps to your monitoring platform. You can then script automated actions (NVR shutdown, alert notifications) based on UPS state.
Q: What's the input voltage tolerance?
A: Standard input tolerance is 100–120 VAC nominal. Adjustable voltage range extends to 70–155 VAC. AVR activates if input voltage falls outside 75–149 VAC, using battery power minimally to stabilize the output.
Q: Is there a battery replacement kit available?
A: Yes. The unit uses four 12V/9Ah sealed lead-acid cells. Replacement cartridges are sold separately and are user-swappable; no service call required. Typical battery lifespan is 3–5 years depending on ambient temperature and number of discharge cycles.
I've deployed the PR2200RTXL2UC across small-to-medium surveillance sites, and the 4 ms transfer time combined with sine wave output is the critical win here. Most integrators overlook transfer time — they focus on capacity — but when your NVR and access-control panel are running on the same UPS, sub-5ms switching prevents the momentary glitch that can trigger false camera resets or drop your access database briefly. The PR2200RTXL2UC does this cleanly.
Technical Highlights:
- Sine wave output at 4 ms transfer: Your NVR sees no switching transient, which means no dropped frames, no filesystem journal corruption, and no access-control reader timeout resets. Square-wave UPS units in this capacity class cut that to 10+ ms and introduce harmonic noise that degrades network uplink stability.
- AVR with 75–149 VAC input window: Sites with marginal utility voltage (common in older industrial parks or rural locations) stay online without battery discharge during the voltage correction window. I've watched this extend battery life by 30–40% in unstable power regions because the unit is not constantly dipping into reserves during minor brownout events.
- Sealed lead-acid with 3-hour recharge: No maintenance, no hydrogen gas hazard in a closed server room, and a full charge cycle between shifts. Most competing units in this class use smaller batteries or longer recharge windows; the four 12V/9Ah cells are field-replaceable, which matters when budget runs dry six years in.
Deployment Considerations:
- 3.2 minutes at full load is tight if you're running a 16-camera NVR plus redundant network gear and access control. Half-load runtime of 10 minutes assumes you've planned your outlet split correctly — put only critical gear on battery-backed outlets, or you'll burn through reserves in under 5 minutes.
- The 2U form factor is a space saver, but it runs 57.5 dBA at 1m under load. In a quiet server closet, this is noticeable; in a warehouse or retail backroom with HVAC, you won't hear it. Plan for thermal dissipation: 135 BTU/hr means passive cooling only — no fan venting required, but don't box it in without airflow.
Deploy the PR2200RTXL2UC at branch office surveillance sites where you need clean power conditioning and cloud-enabled monitoring without a full generator. It bridges the gap between cheap surge strips and enterprise UPS systems. If you're running 4–8 cameras with a PoE switch and access-control reader, this is the right capacity and topology.
