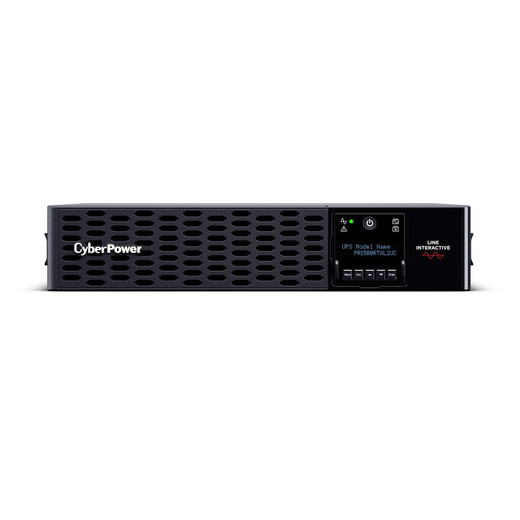

CyberPower PR1500RTXL2UC 1500VA/1500W 2U Rack Line-Interactive Sine Wave UPS
Overview
The CyberPower PR1500RTXL2UC is a 1500VA/1500W line-interactive UPS built for 2U rack deployments where you need genuine sine wave output, broad input voltage tolerance, and eight protected outlets in a single rack unit. It fits squarely in the machine room, network closet, or security head-end rack where NVRs, PoE switches, access control servers, and network gear demand clean, regulated power — not a modified sine wave that causes headaches with sensitive electronics.
The PR1500RTXL2UC pairs a full sine wave output with line-interactive topology, meaning the unit actively regulates voltage without switching to battery for every sag or surge. That keeps battery runtime reserved for actual outages rather than routine voltage fluctuations on commercial feeds.
Key Features
- True Sine Wave Output: At 1500W with a power factor of 1.0, the PR1500RTXL2UC delivers clean sine wave power even on battery. Active PFC power supplies — standard in modern NVRs, servers, and managed switches — require sine wave input to operate correctly and without risk of damage. Modified sine wave UPS units are explicitly not recommended for these loads.
- Wide Input Voltage Window (70–155V): The unit accepts input as low as 70V and as high as 155V at 47–63 Hz before switching to battery. In commercial buildings with marginal panels or older wiring, this wide window means the UPS corrects browndowns and swells on the inverter rather than burning through battery cycles — a real factor in installations where the utility feed is known to drift.
- 2430J Surge Energy Rating: With 2430 joules of surge absorption, this unit provides meaningful protection for the downstream equipment rail — not just token suppression. High-energy switching transients from HVAC compressors, elevators, or nearby industrial equipment get clamped before they reach your NVR or network hardware.
- Six-Millisecond Transfer Time: The 6ms switchover from line to battery is fast enough that virtually all commercial-grade equipment with active PFC supplies will ride through the transition without a reset. This is a key spec to verify for any load that doesn't tolerate even brief power interruptions.
- Eight NEMA 5-15R Outlets with 10A Cord: Eight protected outlets on a single 15A circuit feed is sufficient to power a mid-density rack row — a typical head-end configuration might include an NVR, a PoE switch, an access control server, and a network switch, all protected by a single UPS unit. The 10-foot cord provides reach flexibility in rack-to-PDU configurations.
- EMI/RFI Noise Filtering: Active filtering on the output reduces conducted noise on the power line. In environments with variable-speed drive motors, fluorescent ballasts, or other noise-generating equipment on the same feed, this directly benefits the signal quality on power-sensitive analog and IP security hardware.
- Cloud Monitoring: Cloud management capability allows remote monitoring of UPS status, load, and runtime estimates — useful when the head-end rack is in a remote IDF or unmanned mechanical room where a technician can't physically check the unit daily.
- 52.5 dB Noise Level: For equipment rooms that share space with light office use, the 52.5 dB operational noise level is within the range of a standard office HVAC system. Not silent, but manageable in most non-open-office deployments.
- Output Frequency: 50/60 Hz: Auto-sensing output frequency means you can deploy this unit on either 50Hz or 60Hz utility infrastructure without configuration changes — relevant for multi-site or international-adjacent deployments.
Integration and Compatibility
The PR1500RTXL2UC is designed for standard 2U 19-inch rack installations. The eight NEMA 5-15R outlets accommodate the standard North American plug formats used by most NVRs, PoE switches, and commercial security appliances. The 15A maximum input current matches a standard 20A breaker circuit with appropriate derating. For deployments with higher-wattage equipment — GPU-based analytics servers, high-density PoE switch banks — verify total connected load stays within the 1500W rated output.
The surge protection and EMI filtering stages make this a practical fit for commercial power protection in security-focused rack installations. Cloud connectivity integrates with network video recorder head-end racks where remote status monitoring reduces truck rolls for routine diagnostics. Pair with a managed PoE switch on the protected outlet rail to ensure camera feeds stay up during utility events. For broader CyberPower power protection options including higher-capacity and 3-phase models, see the full line.
Frequently Asked Questions
Q: Does the PR1500RTXL2UC output a true sine wave on battery, or a modified sine wave?
A: The PR1500RTXL2UC outputs a true sine wave on both line and battery. This is required for loads with active PFC power supplies, which includes most modern NVRs, servers, and managed network switches. Modified sine wave output can cause these supplies to run hot, malfunction, or fail — the sine wave output on this unit eliminates that risk.
Q: What input voltage range does the PR1500RTXL2UC accept before switching to battery?
A: The unit accepts input from 70V to 155V without transferring to battery. This wide range handles brownouts and overvoltages common in commercial electrical environments, allowing the line-interactive circuitry to regulate output without depleting the battery on every voltage fluctuation.
Q: How many outlets does the PR1500RTXL2UC have and what type?
A: The PR1500RTXL2UC has eight NEMA 5-15R outlets, all on the protected/surge-filtered rail. The unit ships with a 10-foot input cord. Maximum input current is 15A, so total connected load should be sized accordingly with standard derating practice for continuous loads.
Q: What is the transfer time to battery during a power failure?
A: Transfer time is 6 milliseconds. Most commercial-grade equipment with active PFC supplies will sustain this transition without interruption. If your load requires near-zero transfer time (such as certain industrial controllers), verify the hold-up time specification of each connected device's power supply against this 6ms switchover.
Q: Can the PR1500RTXL2UC be monitored remotely?
A: Yes. The PR1500RTXL2UC includes cloud monitoring capability, enabling remote visibility into UPS load, status, and runtime estimates. This is particularly useful for unmanned IDF closets, remote equipment rooms, and multi-site security deployments where physical inspection of each rack isn't practical.
Q: Is the PR1500RTXL2UC rack-mountable and what rack space does it require?
A: Yes, it is a 2U rackmount form factor designed for standard 19-inch equipment racks. It occupies two rack units of vertical space — a reasonable footprint for a 1500W UPS protecting a mid-density security or networking rack.
The spec I always look at first on a rack UPS is the input voltage window, and the PR1500RTXL2UC's 70–155V range is one of the widest in its class. I've installed this unit in commercial facilities where the utility feed regularly dips below 90V during peak load — the wide window means the line-interactive stage handles it without touching the battery. That matters because runtime on any 1500VA unit is finite, and you want that reserve for actual blackouts, not brownout correction cycles.
Technical Highlights:
- Sine Wave Output at 1.0 Power Factor: Full 1500W at unity power factor means you're not derated by a 0.8 or 0.9 PF penalty — what's rated is what's available to the connected load. Combined with true sine wave output, this is the right unit for any rack with active PFC power supplies.
- 2430J Surge Rating: Higher than many competing units in the 1500VA class. In industrial-adjacent or campus installations where switching transients are common, the extra joule headroom means the suppression components aren't being nibbled down by routine events.
- 6ms Transfer Time: Fast enough for the overwhelming majority of commercial rack equipment. The only loads that consistently struggle with 6ms are very old linear power supplies or certain motor-drive controllers — neither of which belongs in a modern security head-end anyway.
Deployment Considerations:
- Size your connected load at no more than 80% of the 1500W rating for continuous operation — 1200W practical ceiling. A dense rack with a high-channel NVR, two managed switches, and an access control server can hit that ceiling faster than expected; audit wattage before committing outlets.
- The 52.5 dB fan noise is real — this unit is not suitable for an open office or conference room equipment closet. Plan for a dedicated IDF, server room, or enclosed rack enclosure where ambient noise masks the fan.
For a security integrator building out a mid-density surveillance head-end in a commercial building — NVR, core switch, access control appliance, and a spare outlet for a laptop during service calls — the PR1500RTXL2UC covers the rack cleanly in 2U with no compromises on waveform quality or surge protection headroom.
