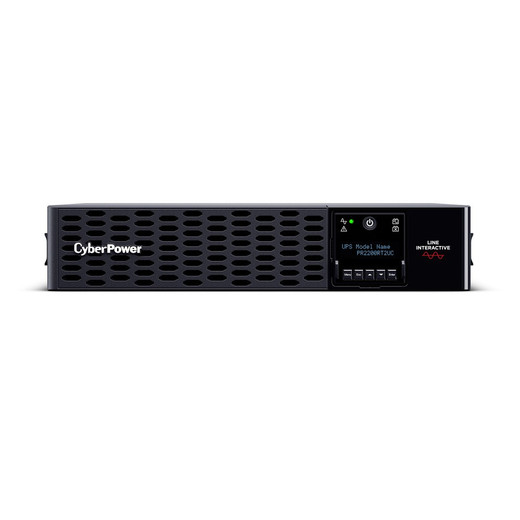

CyberPower PR2200RT2UC 2200VA/2200W 2U Rack Line-Interactive Sine Wave UPS
Overview
The CyberPower PR2200RT2UC is a 2200VA/2200W line-interactive UPS in a 2U rack form factor, purpose-built for equipment that demands clean, uninterrupted power — security servers, NVRs, PoE switch stacks, and edge compute nodes that cannot tolerate voltage fluctuations or transfer-time penalties. Unlike stepped-approximation (simulated sine wave) units, this UPS outputs a true sine wave on battery, which matters if you're running active-PFC power supplies common in modern servers and enterprise network gear. Line-interactive topology means it corrects under- and over-voltage conditions (from 75 V to 149 V input) without switching to battery — extending runtime reserves for actual outages rather than burning them on routine sag events.
Find the full CyberPower power protection lineup including matching PDUs and extended battery modules for larger deployments.
Key Features
- True Sine Wave Output: Generates a pure sine wave on battery — not a stepped approximation. Servers and network appliances with active-PFC supplies will not throttle, fault, or shut down during an outage. This is the single most important spec to verify when powering enterprise hardware.
- 2200W / Power Factor 1.0: With a unity power factor, the VA rating equals the watt rating — 2200W of actual usable load capacity. No derating calculation needed. What you see is what you get when sizing for a rack full of power protection equipment.
- Line-Interactive AVR (75–149 V): Automatic voltage regulation handles input swings from 75 V up to 149 V without touching the battery. In facilities with aging wiring or frequent sag events, this keeps runtime reserves intact for genuine outages rather than depleting battery capacity on voltage noise.
- 2430 J Surge Energy Rating: 2430 joules of surge protection with integrated EMI/RFI filtering absorbs transients before they reach connected equipment. A meaningful buffer for environments near heavy HVAC switching loads, elevators, or industrial equipment on shared circuits.
- 6 ms Transfer Time: When a true blackout does occur, the PR2200RT2UC switches to battery in 6 milliseconds — fast enough for standard PC and server power supplies to ride through without resetting. Most modern ATX supplies hold output through 16–20 ms, so 6 ms provides comfortable margin.
- 8x NEMA 5-20R Outlets on a 15A Input: Eight 5-20R receptacles accept both standard 5-15P and 5-20P plugs, giving flexibility when mixing equipment with different plug types. The 10-foot cord on a 15A circuit provides enough reach to route cleanly in a mid-depth rack without a cable management arm.
- Cloud Monitoring via PowerPanel: The included cloud connectivity enables remote monitoring of load percentage, battery health, runtime estimates, and event logs — useful for distributed site deployments where a technician isn't physically on-site to observe status LEDs. Pair this with your network switch infrastructure to ensure the management port stays live during an outage.
- 52.5 dB Noise Level: At 52.5 dB under load, this unit is louder than a whisper but quieter than a typical conversation — suitable for a server room or wiring closet without causing noise complaints in adjacent open-plan spaces. Not designed for a library or quiet office environment.
- 135 BTU/h Heat Dissipation: Thermal output of 135 BTU/h is modest for a 2200W UPS, which means it won't meaningfully impact CRAC unit sizing in a standard rack. Account for it in thermal planning but it won't be the dominant load in most deployments.
- 47–63 Hz Input Frequency Range: Accepts both 50 Hz and 60 Hz input, which matters in facilities with generator backup — generators often run slightly off-frequency during startup and load transitions. The PR2200RT2UC handles that variation without alarming or switching to battery unnecessarily.
- Audible Alarms: On-battery and low-battery alarms are audible, providing local notification even if remote monitoring is not configured — a practical fallback in facilities without a 24/7 NOC watching the dashboard.
Integration and Compatibility
The PR2200RT2UC fits a standard 19-inch rack in 2U of space. The NEMA 5-20R receptacles are a common standard across commercial and light-industrial environments, compatible with servers, NVRs, managed PoE switches, and other rack-mounted equipment using 5-15P or 5-20P plugs. Cloud monitoring integrates via CyberPower's PowerPanel platform — confirm network port availability on the UPS for management connectivity. For larger installations requiring more outlets or higher wattage, consider scaling to a higher-capacity model within the CyberPower rack UPS family.
Frequently Asked Questions
Q: Does the PR2200RT2UC produce a true sine wave on battery?
A: Yes. The PR2200RT2UC outputs a pure sine wave both from utility and on battery — it is not a simulated (stepped) sine wave unit. This is required for equipment using active-PFC power supplies, which includes most modern servers, workstations, and enterprise network appliances.
Q: What input voltage range will the PR2200RT2UC tolerate without switching to battery?
A: The line-interactive AVR handles input voltages from 75 V to 149 V without switching to battery, correcting sags and surges in real time. This wide window reduces unnecessary battery cycling in facilities with inconsistent utility power.
Q: What outlets does the PR2200RT2UC provide, and what plug types are compatible?
A: The unit provides 8 NEMA 5-20R receptacles. These accept both NEMA 5-15P (standard 3-prong) and NEMA 5-20P plugs, covering the majority of rack-mounted commercial equipment without adapters.
Q: How loud is the PR2200RT2UC during normal operation?
A: CyberPower rates noise output at 52.5 dB. This is appropriate for a dedicated server room or wiring closet but may be noticeable in a quiet open-plan office environment. Factor this into placement decisions if the rack is near a work area.
Q: What is the transfer time to battery on power failure?
A: The PR2200RT2UC transfers to battery in 6 milliseconds, which is within the hold-up time of virtually all modern ATX and server power supplies. Connected equipment should not experience resets or shutdowns during the transition.
Q: Does the PR2200RT2UC support remote monitoring?
A: Yes. The unit includes cloud connectivity for remote monitoring through CyberPower's PowerPanel platform, providing visibility into load levels, battery status, runtime estimates, and event history without requiring physical access to the unit.
The spec that earns the PR2200RT2UC its place in a security infrastructure rack isn't the wattage — it's the unity power factor. At PF 1.0, the full 2200 VA is 2200 W of usable capacity with zero derating. I've seen integrators waste budget on higher-rated UPS units with PF 0.8 or 0.9 and then discover they only have 1760 W or 1980 W to work with after the math. The PR2200RT2UC eliminates that calculation entirely.
Technical Highlights:
- True Sine Wave on Battery: Active-PFC supplies — standard in every enterprise server and modern managed switch — require true sine wave. The PR2200RT2UC delivers it, so there's no compatibility risk when the power fails and the battery engages.
- 2430 J Surge Rating + EMI/RFI Filtering: 2430 joules handles most transients from industrial HVAC and elevator loads sharing a panel. The EMI/RFI filtering layer matters for analog and IP camera systems where RF noise on the power line can inject artifacts or cause link instability on PoE switch ports.
- 6 ms Transfer Time: At 6 ms, the switchover is invisible to connected equipment. Standard ATX supplies hold output for 16–20 ms; servers with larger bulk capacitors hold longer. There is no scenario in a normal installation where 6 ms transfer causes a connected device to drop.
Deployment Considerations:
- The 10-foot input cord is sized for standard rack PDU or wall-circuit reach — measure your rack depth and circuit panel distance before installation. In deep two-post relay racks, a short cord becomes a problem quickly.
- At 52.5 dB, this unit is audible. If the rack is in a room shared with staff, factor in the noise floor. In a dedicated IDF or server room it's a non-issue, but in a shared MDF cabinet in an open office it will be noticeable, particularly when the audible alarm triggers on a sag event.
This unit is the right call for a mid-density security rack: NVR, PoE switch stack, management server, and edge analytics appliance on a single 15A circuit with generator-backed panel. The 75–149 V AVR window handles generator frequency drift during load transfer without alarming — a real-world requirement that narrower-range UPS units fail at during generator commissioning tests.
