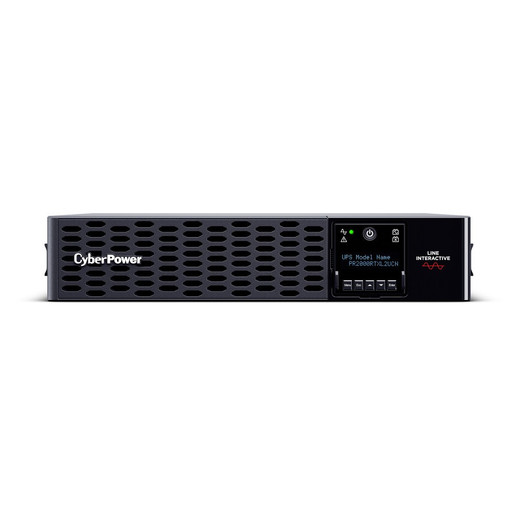

CyberPower PR2000RTXL2UCN 2000VA/2000W 2U Rack-Mount Line-Interactive Sine Wave UPS
Overview
The PR2000RTXL2UCN is a 2000VA/2000W line-interactive rack-mount UPS from CyberPower, built for security infrastructure racks, network closets, and surveillance head-end deployments where clean, regulated power is non-negotiable. At a true power factor of 1.0, the rated 2000 VA equals the full 2000 W output — no derating, no math. The unit ships with an RMCARD205 network card pre-installed, giving you cloud-based management and remote monitoring out of the box. If you're speccing a rack for NVRs, managed PoE switches, and access control servers, the PR2000RTXL2UCN gives you the runtime headroom and management depth that a basic standby UPS cannot match.
Key Features
- Line-Interactive Topology with Pure Sine Wave Output: Unlike cheaper UPS designs that switch to simulated square wave under load, this unit delivers a true sine wave on battery — critical for VoIP gateways, network switches, and NVR storage arrays whose power supplies are tuned to sine wave input. Expect fewer nuisance shutdowns and longer load-device lifespans.
- 2000 VA / 2000 W at Power Factor 1.0: Full-wattage output with zero derating. A 2U rack loaded with a 16-channel NVR, a managed PoE switch, and a fiber converter can easily draw 600–900 W — this unit handles it with runtime to spare and clear headroom for expansion.
- 2430 J Surge Energy Rating: Commercial-grade surge suppression rated at 2430 joules filters transient spikes before they reach downstream equipment. Combined with EMI/RFI noise filtering, this reduces the risk of corrupted recordings or unexpected NVR reboots from line-quality events.
- 6 ms Transfer Time: The line-interactive design switches to battery in under 6 milliseconds — fast enough that connected servers and NVRs register no power interruption. Most ATX power supplies hold through 8–20 ms gaps, so you have margin to spare.
- Wide Input Voltage Window (75–149 V): The unit accepts input between 75 V and 149 V before committing to battery. In buildings with poor power quality, this range means the UPS corrects voltage sags and swells through AVR rather than cycling the batteries — extending battery service life in high-fluctuation environments.
- RMCARD205 Cloud Management Included: The pre-installed RMCARD205 network card enables remote monitoring, shutdown scripting, and cloud-based alert management without an additional card purchase. For distributed deployments across multiple sites, this is the difference between getting a call at 2 AM and having an automated alert with context already in your inbox.
- 8x NEMA 5-20R Outlets: Eight 20-amp twist-lock receptacles support higher-draw rack equipment without adapters. If your switch or NVR uses a standard 15A plug, a 5-20R adapter is required — plan for this in the cabling phase.
- 57.5 dB Noise Level: Running at 57.5 dB, this unit is appropriate for equipment rooms and wiring closets but may be noticeable in quiet open-plan server rooms. Confirm your enclosure provides adequate acoustic attenuation if proximity to occupied spaces is a concern.
- 2U Rack Form Factor: The 2U chassis integrates cleanly into standard 19-inch racks. Plan the rail placement before mounting — position it low in the rack to keep center of gravity stable, especially in mobile or transit-rated enclosures.
- Audible Alarm with 130 BTU/h Heat Dissipation: The audible alarm signals battery operation, overload, and fault conditions — useful in unmanned equipment rooms with remote monitoring gaps. At 130 BTU/h heat dissipation, ensure rack airflow is accounted for in thermal calculations, particularly in sealed or under-ventilated enclosures.
Integration & Compatibility
The PR2000RTXL2UCN is suited to mixed-voltage security infrastructure racks running NVRs, managed PoE switches, access control servers, and IP intercom gateways. The RMCARD205 card supports SNMP and PowerPanel Business Edition for automated graceful shutdown — integrate this with your VMS server's shutdown scripts to protect open write transactions on NVR storage before power runs out. The 47–63 Hz input frequency tolerance accommodates both 50 Hz and 60 Hz grid environments, making this unit deployable across North American and most international installations without modification. For sizing, calculate your connected load and target 40–60% UPS capacity at steady state — this leaves headroom for inrush current and maximizes battery runtime under real operating conditions.
Frequently Asked Questions
Q: What is the output waveform of the PR2000RTXL2UCN when running on battery?
A: The PR2000RTXL2UCN produces a pure sine wave output both on utility power and on battery. This is important for active PFC power supplies found in NVRs, servers, and managed switches — devices that can malfunction or shut down unexpectedly when fed a simulated or stepped sine wave from a cheaper UPS.
Q: What network management card does the PR2000RTXL2UCN include?
A: It ships with the RMCARD205 network management card already installed, enabling remote monitoring, cloud-based management, and automated shutdown scripting via SNMP or PowerPanel Business Edition — no additional card purchase needed.
Q: What outlet type does the PR2000RTXL2UCN use?
A: The unit provides 8x NEMA 5-20R (20-amp) outlets. If your equipment uses standard NEMA 5-15P plugs, you will need 5-15P to 5-20R adapters. Plan adapter procurement during the cabling phase to avoid installation delays.
Q: What is the input voltage range the PR2000RTXL2UCN can tolerate before switching to battery?
A: The unit accepts input voltage between 75 V and 149 V via automatic voltage regulation (AVR), correcting sags and swells without drawing on battery reserves. This wide window is especially valuable in older buildings or areas with poor utility power quality.
Q: How loud is the PR2000RTXL2UCN in normal operation?
A: The unit operates at 57.5 dB under normal conditions — audible in a quiet room, suitable for dedicated equipment closets and server rooms. If installed in an open office-adjacent space, confirm your rack enclosure provides adequate sound attenuation.
Q: What is the transfer time of the PR2000RTXL2UCN when switching to battery?
A: Transfer time is 6 milliseconds. Most server and NVR power supplies hold through gaps of 8–20 ms, so connected equipment will see no interruption when the UPS switches to battery during a utility power event.
The PR2000RTXL2UCN is one of the few 2U rack UPS units in this power class that ships with a cloud management card already seated — the RMCARD205 is not an add-on here, it is part of the base configuration. That matters on multi-site security deployments where you need automated shutdown scripting and remote monitoring without a second purchase order or a return trip to the rack.
Technical Highlights:
- Power Factor 1.0: The full 2000 VA equals the full 2000 W — no capacity derating. A rack running an NVR at 250 W, a 24-port PoE switch at 400 W, and ancillary gear at 150 W sits comfortably under 50% load, giving you both runtime margin and room to grow.
- 2430 J Surge Rating + EMI/RFI Filtering: The combined surge suppression and noise filtering protects sensitive NVR storage controllers and network switch ASICs from line transients. In older commercial buildings with shared electrical infrastructure, this level of filtration is worth speccing explicitly rather than treating as given.
- 75–149 V AVR Window: The automatic voltage regulation range is genuinely wide. In facilities where sags below 90 V are common — loading docks, manufacturing-adjacent spaces — the AVR corrects without depleting battery capacity, which extends battery service intervals meaningfully over a 3–5 year deployment lifecycle.
Deployment Considerations:
- The 5-20R outlet format is correct for higher-draw rack gear, but confirm your NVR and switch power cables before installation day — 5-15P to 5-20R adapters are inexpensive but easy to overlook until you are standing at the rack.
- At 57.5 dB operating noise, this unit is not silent. In a dedicated IDF or MDF closet that is the right call, but in a retail back-office or a shared server cabinet in an open space, acoustic planning is necessary.
This unit fits cleanly into a security head-end rack anchoring a multi-camera NVR deployment: sufficient wattage for a fully loaded 16–32 channel recorder plus switching infrastructure, RMCARD205 for automated graceful shutdown when runtime drops below threshold, and sine wave output that protects active PFC power supplies in enterprise NVRs from the waveform incompatibility issues that take down cheaper UPS installs.
