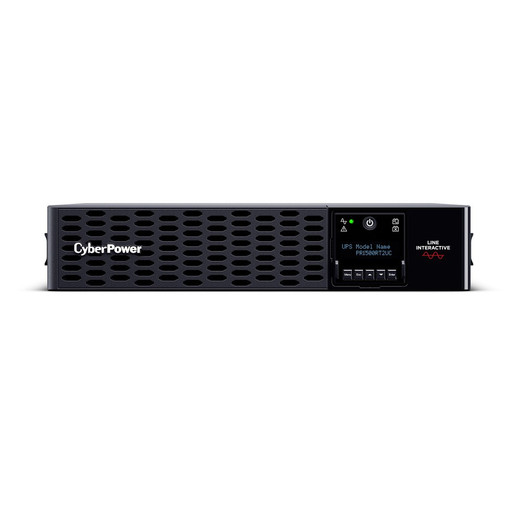

CyberPower PR1500RT2UC 1500VA/1500W 2U Rack-Mount Pure Sine Wave UPS
Overview
The CyberPower PR1500RT2UC is a 1500VA/1500W line-interactive UPS delivering pure sine wave output in a 2U rack-mount form factor — the right fit for server rooms, surveillance NVR racks, and network closets where sensitive electronics demand clean, stable power rather than the stepped approximation of a simulated sine wave unit. At full 1.0 power factor, the rated 1500W output is not derated, meaning you get the full capacity on the label when powering modern switching power supplies and active PFC loads common in today's enterprise hardware.
With a 75–149V input operating window and 6ms transfer time to battery, the PR1500RT2UC bridges the gap between minor voltage sags and full outages without dropping connected equipment — a practical necessity in facilities where utility power fluctuates before failing entirely.
Key Features
- Pure Sine Wave Output: Unlike simulated (stepped) sine wave UPS units, the PR1500RT2UC generates a true sinusoidal waveform on battery. Active PFC power supplies — found in virtually every current server, NVR, and network switch — require sine wave input to operate correctly; a stepped approximation can cause audible buzz, reduced efficiency, or outright refusal to accept battery power on some hardware.
- 1500W at Unity Power Factor: Power factor of 1.0 means the 1500VA and 1500W ratings are identical — no derating math required. Size your load against 1500W directly. This simplifies capacity planning across multi-device racks.
- 75–149V Wide Input Range: The 75V lower threshold handles utility sags that would cause lesser UPS units to switch to battery prematurely. The 149V upper limit provides protection against overvoltage events without consuming battery cycles on normal high-line fluctuations. Input frequency acceptance spans 47–63Hz, covering both 50Hz and 60Hz infrastructure.
- 6ms Transfer Time: Switchover from utility to battery in 6 milliseconds keeps connected equipment running without a detectable glitch. Most server and network hardware tolerates up to 20ms; 6ms provides headroom for even the most sensitive power supplies.
- 2430J Surge Energy Rating: Absorbs up to 2430 joules of surge energy — higher than the baseline 1000–1500J found on many rack UPS units at this capacity. Connected equipment stays protected during the transient events that precede or follow outages.
- EMI/RFI Filtering: Active noise filtering suppresses electromagnetic and radio-frequency interference on the input line. In surveillance and security environments where analog and IP signal integrity matters, clean power upstream prevents noise artifacts from propagating into cameras, recorders, and access control panels.
- 52.5 dB Noise Level: Quiet enough for office-adjacent installations. At 52.5 dB under load, the unit won't dominate ambient sound in an IT closet or small server room — relevant when the rack is near occupied workspace.
- 93.3 BTU/h Heat Dissipation: Thermal output of 93.3 BTU/h is modest for a 1500W UPS, which means HVAC and rack cooling planning stays straightforward. Factor this against your room's cooling capacity when loading a high-density rack.
- Audible Alarms: Onboard alarm system provides audible notification on battery, low battery, overload, and fault conditions — no software monitoring required to catch a critical power event in real time.
- 120V / 15A Output: Maximum 15A output current covers a fully loaded rack of standard 1U/2U appliances on standard NEMA circuits. Plan load distribution across outlets to avoid exceeding the 15A circuit protection.
Integration & Compatibility
The PR1500RT2UC's pure sine wave output makes it compatible with the full range of active PFC power supplies used in commercial surveillance recorders, managed PoE switches, access control servers, and rack-mount workstations. The 2U rack-mount chassis fits any standard 19-inch equipment rack or enclosure, occupying minimal vertical space relative to its 1500W capacity.
For power protection in surveillance deployments, pair the PR1500RT2UC with a PoE switch and NVR on the same circuit to ensure cameras and recording remain online through short outages. The line-interactive topology conditions power continuously — not just on battery — which benefits sensitive network equipment that would otherwise receive raw utility power with all its sags, spikes, and noise.
Review your UPS selection guide for rack UPS sizing considerations, including runtime calculations and battery expansion options for extended hold times beyond what the internal battery provides. For installations requiring higher capacity, consider stepping up within the CyberPower rack UPS lineup to a 2200VA or 3000VA model if projected load growth will exceed 1500W.
Frequently Asked Questions
Q: Does the PR1500RT2UC produce a true sine wave on battery, or a simulated sine wave?
A: The PR1500RT2UC outputs a true pure sine wave both on utility power and when running on battery. This is required for reliable operation with active PFC power supplies common in servers, NVRs, and managed switches.
Q: What is the input voltage operating range of the PR1500RT2UC?
A: The unit accepts input voltages from 75V to 149V without switching to battery. This wide range handles both voltage sags and moderate overvoltage conditions on utility power.
Q: How quickly does the PR1500RT2UC switch to battery during an outage?
A: Transfer time is 6 milliseconds — fast enough that connected servers, NVRs, and network equipment continue running without interruption during the switchover.
Q: What is the surge energy rating and does the PR1500RT2UC include surge protection?
A: Yes, surge protection is built in with a 2430-joule surge energy rating. This absorbs transient energy events that can damage connected equipment even when utility power is present.
Q: Is the PR1500RT2UC suitable for a standard 19-inch rack?
A: Yes. The PR1500RT2UC is a 2U rack-mount unit designed for standard 19-inch equipment racks, making it compatible with typical server room and network closet rack infrastructure.
Q: What output frequency does the PR1500RT2UC support?
A: The output frequency is 50/60 Hz, and the unit accepts input from 47 to 63 Hz, providing compatibility with both North American and international utility power standards.
The spec I always lead with on the PR1500RT2UC is the 75V lower input threshold combined with the 6ms transfer time — in practice, that combination means the unit rides through the shallow voltage sags that trigger battery switchover on lesser units, and when it does switch, connected equipment never sees the gap. For surveillance racks running 24/7 NVR recording, that matters more than raw runtime numbers.
Technical Highlights:
- Pure Sine Wave at 1.0 PF: 1500VA equals 1500W with no derating — capacity planning is direct math, not a conversion exercise. The true sine waveform keeps active PFC supplies on modern NVRs and switches stable on battery.
- 2430J Surge Rating: Higher than the 1000–1500J typical for this capacity class. Surveillance installations in older commercial buildings with dirty utility power benefit from the additional absorption headroom.
- 93.3 BTU/h Thermal Output: Conservative heat load for a 1500W unit means you can place this in a low-airflow wall-mount rack or shallow network closet without blowing your thermal budget — a common constraint in edge surveillance deployments.
Deployment Considerations:
- The 15A maximum output current means you need to plan outlet loading carefully on a fully populated 2U rack — total connected load should stay under 1500W and within the 15A circuit rating. Use a load calculator before commissioning.
- At 52.5 dB under load, the PR1500RT2UC is audible in a quiet environment. Fine for a dedicated server room or network closet; less ideal in an open office or reception area where the rack is within earshot of occupants.
This unit is a natural fit for edge surveillance closets in retail, healthcare, or campus security deployments — sites running a PoE switch, a 4–16 channel NVR, and a small managed switch on a single rack, where a true sine wave, rack-native UPS with built-in surge protection covers the entire critical load in 2U of space.
