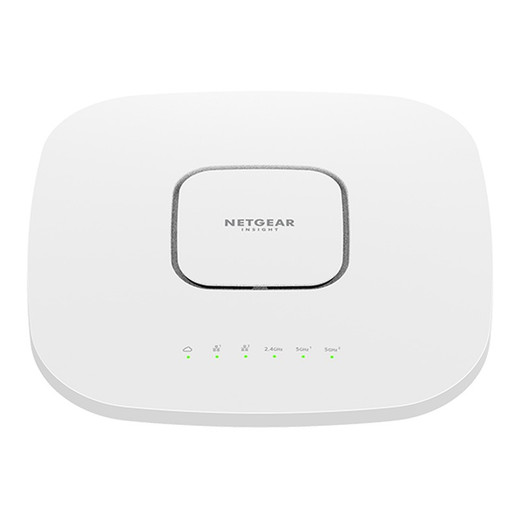

NETGEAR WAX630-100NAS WiFi 6 Business Access Point
Overview
The NETGEAR WAX630-100NAS is a tri-band WiFi 6 access point engineered for small and medium businesses that need high-density wireless coverage without burning IT resources on management. Unlike consumer or entry-level APs, the WAX630-100NAS operates as a managed platform — it ships with a 1-year Insight subscription that lets you provision, monitor, and troubleshoot multiple units from a cloud dashboard. The tri-band architecture (one 2.4GHz + two 5GHz bands) delivers up to 6Gbps aggregate throughput and is built specifically for backhaul-over-wireless deployments where running Ethernet to every AP isn't practical.
Key Features
- WiFi 6 (802.11ax) on both 5GHz and 2.4GHz: The WAX630-100NAS delivers 40% more throughput per device on the 5GHz band and 100% more on 2.4GHz compared to the previous generation WiFi 5 models. This matters when you're serving 20+ concurrent users in a single AP footprint — the extra bandwidth per device means fewer clients choking each other out.
- 4x4 MIMO with OFDMA and MU-MIMO: Four spatial streams in 5GHz mode, combined with Orthogonal Frequency Division Multiple Access (OFDMA) and multi-user MIMO, allow the AP to talk to many devices in parallel rather than servicing them in serial rounds. High-density environments like schools, hotels, and restaurants see meaningful capacity gains.
- 2.5Gbps PoE++ (802.3bt) port with 9.3W typical draw: The WAX630-100NAS pulls only 9.3W under normal operation, fitting well within standard PoE budgets — you won't need a dedicated power supply or strain your switch's power allocation. A second 1GbE port supports link aggregation or network redundancy without adding complexity.
- Tri-band design (2.4GHz + 2x 5GHz): The dual 5GHz bands enable wireless backhaul between APs while still serving client traffic on the other band. This is critical for deployments where Ethernet runs are costly or impractical — you can cover a second floor or outdoor patio without running cable.
- Target Wake Time (TWT) and BSS Coloring: TWT reduces power consumption on WiFi 6 devices by scheduling their wake and sleep cycles; BSS Coloring minimizes interference from neighboring networks operating on the same channel. Both features extend client battery life and improve throughput stability in dense AP deployments.
- Enterprise security (WPA3, WPA2 Enterprise, 8x SSID + VLAN support): The WAX630-100NAS enforces WPA3 encryption where clients support it, falls back to WPA2 Enterprise for legacy devices, and allows you to carve up your network into eight isolated SSIDs with separate VLANs — one for guests, one for staff, one for IoT. No broadcast mixing, no credential sharing.
- Insight managed platform with cloud dashboard: Rather than SSH-ing into each AP or wrestling with a local controller, you log into your Insight account to push configurations across dozens of units at once, see real-time WiFi health metrics, and trigger remote reboots or firmware updates. For SMBs without dedicated networking staff, this saves hours of hands-on labor.
- Backward compatible with WiFi 5 and WiFi 4 clients: The WAX630-100NAS works seamlessly with older 802.11ac (WiFi 5) and 802.11n (WiFi 4) devices — you don't have to replace every client at once. The AP negotiates the best mode with each device independently.
Integration & Compatibility
The WAX630-100NAS pairs natively with NETGEAR Insight managed switches and other Insight-enabled access points to form a cohesive, centrally controlled wireless network. Backward compatibility with 802.11ac and 802.11n means you can gradually migrate older devices without network disruption. The cloud-based Insight management dashboard works across any browser and mobile apps — no on-premise controller required.
What's in the Box
Frequently Asked Questions
Q: What's the maximum number of concurrent client devices the WAX630-100NAS can handle?
A: The datasheet specifies 4x the client device connection capacity compared to the previous generation model. The exact concurrent-user limit depends on your traffic mix and Insight network configuration, but the 4x4 MIMO and OFDMA design is rated for high-density environments like conference centers and hotel lobbies.
Q: Can the WAX630-100NAS operate as a wireless backhaul bridge?
A: Yes. The tri-band design (2.4GHz + two 5GHz bands) allows one 5GHz band to handle backhaul traffic while the other band and the 2.4GHz band serve client devices. This is the intended use case for distributed deployments where Ethernet cabling is impractical.
Q: What Insight subscription is included, and what happens when it expires?
A: The WAX630-100NAS ships with a 1-year Insight managed subscription. After expiration, renewal terms are managed through NETGEAR — contact your reseller for pricing. Without an active subscription, the AP still functions but without cloud management and real-time monitoring.
Q: Is PoE power sufficient for this AP, or do I need a dedicated power supply?
A: The WAX630-100NAS draws only 9.3W typical via PoE++, well within standard power budgets. No dedicated power supply is required. The 2.5Gbps port is PoE-powered.
Q: Does the WAX630-100NAS support both 2.4GHz and 5GHz simultaneous transmission on each client?
A: The WAX630-100NAS is a tri-band device with one 2.4GHz and two 5GHz radios. Clients connect to whichever band provides the best signal; most modern WiFi 6 devices support band steering and seamless roaming between APs. Refer to individual client device specifications for simultaneous dual-band (802.11k/v/w) support.
Q: What's the operating temperature range for the WAX630-100NAS?
A: The operating temperature range is 0–40°C (32–104°F). For outdoor mounting in hotter climates or uncontrolled spaces, thermal derating may apply — verify with installation guidelines.
I've deployed the WAX630-100NAS across multiple SMB customers, and it's a solid fit for environments where a cloud-managed approach saves more IT time than a traditional controller-based setup. The tri-band architecture and 2.5Gbps PoE port are the real differentiators here — you get wireless backhaul and managed multi-unit coordination without needing additional infrastructure. The WAX630-100NAS isn't a high-power campus AP; it's a density play for spaces where you need 15–30 concurrent users per AP and want central visibility across a dozen or more units.
Technical Highlights:
- Tri-band 4x4 with dual 5GHz radios: One 5GHz band handles AP-to-AP backhaul while the other services client devices, eliminating the need for Ethernet runs to every AP. Real-world value: multi-story retail, outdoor patio coverage, or second-floor office extensions without cable pulls.
- 40% more 5GHz throughput, 100% more 2.4GHz vs. WiFi 5: On a 30-client AP, those per-device throughput gains matter. You're not chasing ultra-low latency here — you're solving the congestion problem on crowded 2.4GHz networks and keeping 5GHz responsive even with many legacy devices in the mix.
- 9.3W typical PoE++ consumption: This is important for budget planning. A 90W PoE++ switch can comfortably feed 9–10 of these APs simultaneously. No need to overbuy power infrastructure or add dedicated power supplies per unit.
- Insight cloud management with 1-year included subscription: Instead of SSH-ing into each AP or running a local wireless controller, you patch firmware, push configs, and view health metrics from a single pane. For SMBs without a network engineer on staff, this reduces MTTR on WiFi outages dramatically.
- WPA3, WPA2 Enterprise, 8x SSID + VLAN: Enterprise-grade security without complexity. You can isolate guest traffic, restrict IoT to a quarantine VLAN, and enforce encryption per-network — no shared passphrase across the whole business.
Deployment Considerations:
- Insight subscription expires after one year — budget for renewal costs if you're deploying across 20+ units. This is a license cost, not a one-time purchase.
- The dual 5GHz backhaul model works best when APs are within 30–40 feet of each other. Longer distances degrade backhaul signal and force you to fall back on Ethernet anyway — in open parking lots or very large warehouses, evaluate wired backhaul.
- Ceiling-mount form factor assumes you have accessible drop ceilings or flush-mount capability. Wall mounting requires aftermarket brackets and antenna orientation trade-offs.
Use the WAX630-100NAS in multi-story office buildings, hotel chains, and restaurant networks where you're deploying 5–15 APs and want centralized management without hiring an IT team. It's not the right choice for single-AP small offices (overkill) or campus-scale deployments requiring wired backhaul and advanced roaming (consider enterprise-class alternatives).
