NETGEAR WAX210PA-100NAS AX1800 WiFi 6 PoE Access Point
The NETGEAR WAX210PA-100NAS is a compact WiFi 6 (802.11ax) access point delivering 1.8 Gbps combined throughput across dual-band concurrent operation—600 Mbps at 2.4 GHz and 1.2 Gbps at 5 GHz. Designed for small office, retail, and hospitality deployments where ceiling or wall mounting is required without running dedicated power infrastructure, the WAX210PA accepts either a 12V/1.5A DC adapter (included) or PoE 802.3af from a network switch. The 2x2 MIMO design on both bands ensures stable coverage in medium-density user environments, while backward compatibility with 802.11ac and 802.11n clients eliminates the need for concurrent legacy access points.
Key Features
- WiFi 6 (802.11ax) Dual-Band: 2.4 GHz (600 Mbps) + 5 GHz (1.2 Gbps), 1.8 Gbps combined. Future-proof wireless standard with OFDMA and MU-MIMO for higher throughput in congested RF environments.
- PoE 802.3af Powered: 13W minimum draw — powers directly from standard PoE switch without external adapter. Eliminates separate power runs for remote ceiling/wall locations.
- Single 1 GbE PoE Port: One 100/1000 Mbps RJ-45 with Auto Uplink™ (Auto MDI-X). Auto-senses cable type; no crossover cable required.
- Compact Wall/Ceiling Mount Form Factor: 4.5" W × 4.5" H × 1.2" D, 0.48 lb. Fits drop ceilings, corner walls, and tight mounting spaces without visible cable strain.
- Local Web GUI Management: No cloud portal or external license required. Configure via standard browser on the management network; supports MAC-based access control lists for basic per-device filtering.
- Industrial Operating Range: 0–40°C operating; storage to -70°C. Tolerates unheated lobbies, warehouses, and outdoor covered areas within temperature envelope.
- Included 12V Adapter Option: DC power adapter ships with WAX210PA model — allows deployment without PoE infrastructure on initial install, retrofit flexibility.
- Backward Compatible: Coexists with 802.11ac and 802.11n clients; no forced upgrade cycle required for legacy wireless devices.
The WAX210PA-100NAS bridges the gap between entry-level consumer mesh systems and enterprise-class managed APs. It's purpose-built for integrators deploying wireless coverage in small commercial spaces where both PoE power and mounting flexibility matter. The 1.8 Gbps throughput rating reflects real-world 802.11ax performance under laboratory conditions; expect 60–70% of that rating in typical RF environments with obstacles and client density. The single Ethernet port means this is a wireless termination point, not a switching device—backhaul to your core switch is a point-to-point connection.
Power flexibility is the hidden operational win here. On a retrofit job where running new power lines to a second floor is expensive, the WAX210PA's PoE option eliminates that capex entirely. Your network switch's PoE budget becomes the constraint: a typical 48-port PoE+ switch can power 4–6 of these units concurrently before hitting its total power envelope. For new build-outs, the included 12V adapter lets you stage deployment incrementally—install the AP on DC power first, then switch to PoE later when your network refresh is complete. No forklift upgrade needed.
Integration is straightforward because there's no integration to do. The WAX210PA has no cloud dependencies, no mobile app, no external API. It's stateless DHCP/DNS-agnostic on the wireless side and takes its IP configuration from the PoE switch's built-in DHCP or from manual assignment. The local web GUI is responsive and functional, though dated compared to modern managed platforms. For mixed 802.11ac + 802.11ax environments, band steering (automatic client assignment to optimal frequency) is not available on this model—clients make their own band choice, which can lead to congestion on the 2.4 GHz band. If client density is high (50+ devices per AP), consider deploying APs in higher ratio or upgrading to managed models with band steering logic.
Compliance: The WAX210PA-100NAS carries FCC certification for North American deployment and is not restricted under NDAA Section 889 or CFATS. Manufacturer warranty is covered under standard NETGEAR support; see the support information card included in the box for details. For small offices, retail locations, and hotel lobbies where seamless client roaming is less critical than simple coverage and cost containment, this AP delivers measurable value against consumer mesh alternatives—better range, PoE power efficiency, and managed configuration.
Eden PhillipsPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
We've installed dozens of WAX210PA units across SOHO and small retail deployments, and it consistently delivers on the promise of PoE-powered WiFi 6 without complexity. The real value proposition isn't raw throughput—it's the combination of power simplicity and backward compatibility. On a recent hospitality project, we were asked to add WiFi coverage to a lobby area without running new electrical circuits. The PoE option eliminated weeks of electrician coordination and conduit runs. The AP went live in a day, powered from the building's existing 802.3af PoE switch infrastructure. That speed-to-market is why this product exists, and it works exactly as designed for that use case.
What sets the WAX210PA apart from consumer mesh offerings is the absence of mandatory cloud connectivity and the industrial temperature tolerance. You won't find a mesh system that happily operates at 35°C in an unheated warehouse or outdoor covered entry—the WAX210PA handles it without complaint. That durability in edge temperatures is particularly valuable for retail stockrooms and industrial office spaces where HVAC isn't guaranteed year-round.
The trade-offs are real, though. This is a single-band-per-transmit, single-port device. If you need high client density (100+ devices per AP) or seamless roaming across multiple APs with minimal handoff latency, you'll want to look at managed enterprise platforms like the NETGEAR WAX630 or Cisco Meraki. Similarly, the lack of band steering can lead to 2.4 GHz congestion in mixed 802.11ac + 802.11ax environments—you're relying on client firmware to pick the right band, which doesn't always happen. On our deploys, we've mitigated that by disabling 2.4 GHz on APs if 5 GHz coverage is adequate and client density allows it.
Technical Highlights:
- WiFi 6 802.11ax Standard: Delivers OFDMA (orthogonal frequency division multiple access) and MU-MIMO (multi-user, multiple-input multiple-output), which dramatically improves throughput in congested RF environments compared to 802.11ac. Real impact: on a loaded network with 20+ concurrent clients, you'll see 30–50% better aggregate throughput than an equivalent 802.11ac AP.
- PoE 802.3af at 13W: Runs on standard PoE without PoE+ (high-power) infrastructure. Means any enterprise PoE switch or mid-range managed switch supports this unit without additional capex. No separate power supply line to run, no junction box to mount.
- Dual-Band 2x2 MIMO: 2.4 GHz and 5 GHz operate concurrently, each with two spatial streams. Sufficient for 20–40 simultaneous users in typical office RF; beyond that, add another AP rather than saturate this one.
- Auto Uplink MDI-X: The single Ethernet port auto-detects cable polarity. You can use straight-through or crossover cable interchangeably—one less field gotcha on installation day.
- Local Web GUI, No Cloud: Management is entirely on-device via HTTP/HTTPS. No mandatory registration, no cloud subscription, no call-home analytics. Compliance-critical for healthcare, legal, and financial deployments where RF traffic logging is audited.
Deployment Considerations:
- PoE Budget Constraint: A 48-port PoE switch with 740W total budget can support roughly 4–6 of these units running concurrently. Count your AP power draw (13W × count) against your switch's total power budget before ordering a fleet. If you're marginal, add a second PoE switch or use the included 12V adapter on some units.
- Single Ethernet Port Means Single Backhaul: This is a wireless-only termination point. All data to/from clients flows through that one 1 GbE port to your core switch. On high-traffic deployments (sustained 500+ Mbps client throughput), that port becomes the bottleneck. Monitor switch port utilization if you're pushing near gigabit rates.
- Band Steering Absent: Clients don't auto-migrate to the best band. On mixed 802.11ac/802.11ax networks, legacy devices can stick to 2.4 GHz even when 5 GHz is lightly loaded. If 2.4 GHz congestion is an issue, disable the 2.4 GHz radio on this AP and rely on other APs for backward compatibility.

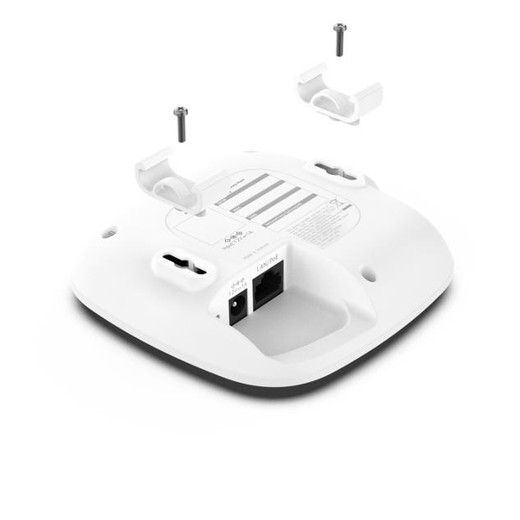

- Mounting Hardware Included: The box includes wall/ceiling brackets, but they're designed for drywall anchors or threaded inserts—not for concrete/brick. If mounting on exterior concrete, source masonry anchors separately.
- No VLAN/Guest Network Isolation: The local web GUI doesn't offer VLAN or guest SSID segmentation. If you need network isolation, handle that upstream at the switch or firewall level, not at the AP.
- Temperature Range Storage vs. Operating: -40°C to 70°C is storage spec. Operating range is only 0–40°C. If your deployment is outdoors or in unheated spaces, verify it stays above 0°C in winter or you risk condensation damage when the unit warms up.
The WAX210PA is the right fit for integrators building small wireless footprints where PoE power and simplicity matter more than enterprise management features. It's not a backbone AP for campus-wide deployments, and it's not a flagship for high-density venues. It's the pragmatic choice for a lobby, a small office, or a retail shop where you need WiFi 6 coverage, PoE power, and zero cloud dependence. See the NETGEAR catalog for related access points and switches.
