2N F9114-B 4-Channel Barebone Main Unit 2nd Gen - 01991-031

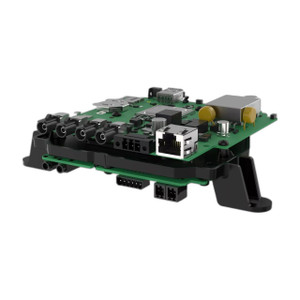

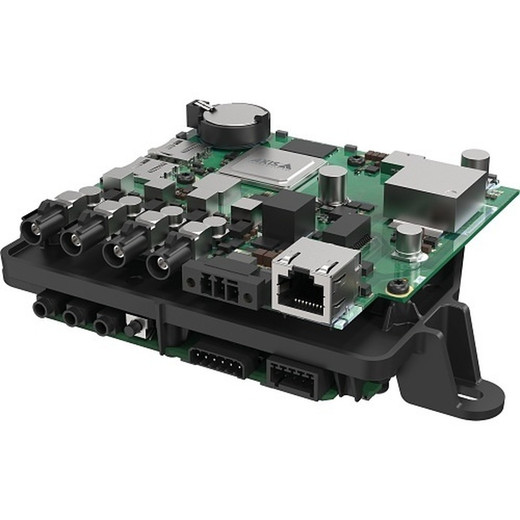

2N F9114-B 4-Channel Barebone Main Unit 2nd Gen

The 2N F9114-B is a compact, four-channel barebone main unit designed for integrators and system builders who need a flexible foundation for custom video surveillance deployments. Compatible with second-generation Axis sensors and SMA-FAKRA connectors, this unit delivers professional-grade video processing and I/O management in a space-efficient form factor. Ideal for ATMs, ticket machines, emergency vehicles, and other specialized installations requiring embedded surveillance capabilities.

Key Features

• Four Independent Channels: Process four simultaneous 1080p video streams at 30 fps per channel, with support for up to 60 fps maximum frame rate
• Forensic WDR Technology: Captures clear, usable detail in high-contrast lighting conditions, ensuring forensically valuable footage in challenging environments
• Two-Way Audio: Integrated audio support with detection capabilities enables interactive communication and event-triggered audio recording
• Comprehensive I/O Connectivity: Four alarm input/output ports, serial connectors, and digital I/O for seamless integration with third-party systems and sensors
• Advanced Video Compression: H.264 compression minimizes bandwidth and storage requirements without sacrificing image quality
• AXIS Camera Application Platform: Built-in support for third-party applications extends functionality beyond standard video surveillance
• Enterprise Security: IEEE 802.1X authentication, HTTPS encryption, and Axis Edge Vault technology protect against unauthorized access and cyber threats
• Wide Operating Range: Operates reliably in temperatures from -40°C to 60°C, supporting deployment in extreme environments

Technical Specifications

• Power Delivery: PoE Class 4 via wired connection; 10-48V DC input support; average power consumption 11.0W
• Video Output: Maximum 1920x1080 resolution, H.264 compression, 30 fps standard / 60 fps maximum
• Connectivity: Compatible with second-generation Axis SMA-FAKRA sensors and cables; serial and digital I/O for extended integration
• Storage & Local Processing: Supports local storage options and onboard processing via AXIS Camera Application Platform

Applications

The F9114-B is engineered for specialized surveillance environments where space, power, and processing efficiency are critical. Common deployments include mobile surveillance in emergency vehicles, self-service kiosk monitoring (ATMs, ticketing), and custom embedded vision systems requiring compact, multi-channel video processing.

James Everett

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

The F9114-B represents Axis' modular approach to embedded surveillance, allowing integrators to build tailored solutions without overprovisioning. Its four-channel architecture with H.264 compression and Forensic WDR makes it suitable for mission-critical applications where video forensics and clarity in variable lighting are non-negotiable. The PoE Class 4 power budget (11W average) is conservative for a four-channel processor, enabling deployment on standard enterprise PoE infrastructure.

Support for AXIS Camera Application Platform and comprehensive I/O options (4 alarm I/O, serial, digital) ensures this unit can anchor complex, multi-sensor deployments. Security-conscious buyers will appreciate 802.1X and Edge Vault integration, reducing risk in networked surveillance architectures. This is a professional integrator's tool, not a plug-and-play unit—buyers should verify sensor and cable compatibility with second-generation Axis specifications before procurement.
