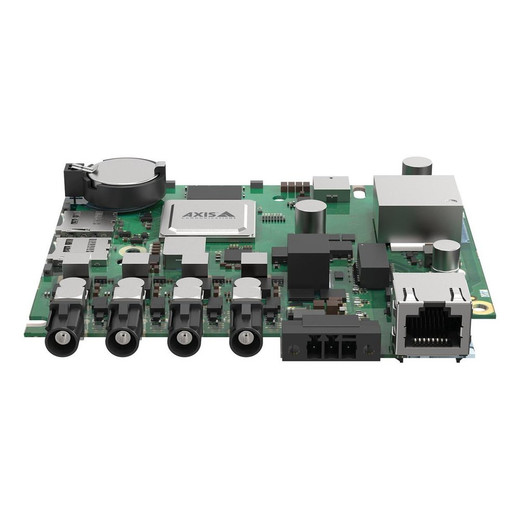

2N F9104-B 4-Channel Barebone Main Unit 2nd Gen
The 2N F9104-B is a modular video surveillance main unit engineered for integrators and OEMs developing custom surveillance solutions. This barebone platform supports four independent video channels, each delivering 1080p resolution at 30 fps, with optional burst recording at up to 60 fps. Compatible exclusively with second-generation Axis sensors and SMA-FAKRA cables, it provides a scalable foundation for specialized deployments in vehicles, ATMs, kiosks, and other integrated systems.
Key Features
- Four Video Channels: Simultaneous 1080p streaming at 30 fps per channel; supports up to 60 fps with appropriate sensor configuration
- Forensic WDR: Advanced Wide Dynamic Range technology maintains image clarity in mixed lighting conditions—ideal for scenes with both bright and dark areas
- H.264 Video Compression: Industry-standard codec reduces file sizes while preserving critical forensic detail
- Axis Zipstream Technology: Intelligent bandwidth and storage optimization without quality loss
- PoE Class 4 Power: Draws 9.0W average; operates from 10–48V DC input for flexible integration
- Extended Operating Range: Functions reliably from -40°C to +60°C
- Enterprise Security: IEEE 802.1X authentication, HTTPS encryption, and Axis Edge Vault device identity protection
- Axis Camera Application Platform: Native support for third-party applications and custom integrations
Technical Specifications
- Resolution: 2MP (1920×1080)
- Frame Rate: 30 fps standard; up to 60 fps maximum
- Compression: H.264
- Connectivity: Wired; requires second-generation Axis SMA-FAKRA cables
- Serial Connectors: Yes (for device integration)
- Local Storage Support: Integrated
- Power Consumption: 9.0W average
- Temperature Range: -40°C to +60°C
Ideal Applications
The F9104-B is purpose-built for OEMs integrating video surveillance into specialized products: emergency response vehicles, mobile command centers, automated teller machines, self-service kiosks, and transportation terminals. Its modular barebone design and robust environmental specifications make it suitable for both controlled indoor settings and mobile outdoor environments.
The F9104-B distinguishes itself through deliberate architectural constraints that favor deep system integration over standalone deployment. Its PoE Class 4 power budget—among the lowest in professional surveillance—reflects optimization for embedded applications where power budgets are critical. The Forensic WDR implementation targets security scenarios requiring detail recovery in high-contrast environments, while Zipstream's bandwidth reduction directly addresses mobile and bandwidth-constrained deployments.
Integrators should note that this is a barebone platform: sensor compatibility is strictly limited to second-generation Axis modules, and cable architecture uses proprietary SMA-FAKRA connectors rather than standard RJ45. This specificity ensures reliable performance in certified OEM products but requires careful component selection during design phase. The extended temperature operating range (-40°C to +60°C) supports both harsh mobile environments and climate-controlled indoor installations.
Security architecture includes enterprise-grade components—IEEE 802.1X network authentication, HTTPS encryption, and Axis Edge Vault—positioning this unit for deployments requiring compliance with institutional security standards. The platform's native support for the 2N Camera Application Platform enables custom analytics and third-party integrations without proprietary middleware.
