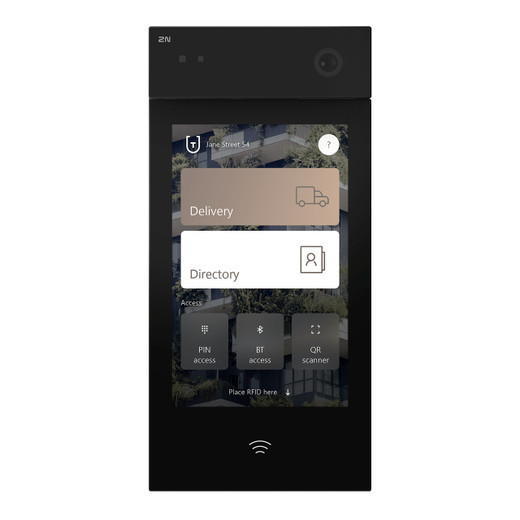

2N 02407-001 IP Style Main Unit Intercom
The 2N 02407-001 is a hardened network-based intercom main unit designed for enterprise access control and visitor communication in multi-tenant facilities, office campuses, and secured entry points. Unlike traditional analog intercoms, this unit operates on IP/PoE architecture, eliminating separate power runs and enabling centralized management across distributed locations. The 02407-001 serves as the core hub of the 2N IP Style platform, supporting modular expansion for door entry modules, credential readers, and multi-call station configurations.
Key Features
- IP65 Weatherproofing: Dust-tight and water-resistant design means you can mount this unit outdoors or in semi-exposed loading docks without additional protective enclosures. Rain and airborne dust won't compromise audio clarity or network connectivity — a real advantage over unrated indoor-only units that require weatherproof cabinets.
- Two-Way Audio Communication: Built-in microphone and speaker support clear visitor-to-operator dialogue with adjustable volume and tone controls. This tuning matters for variable acoustic environments — a loud warehouse floor sounds nothing like a quiet office lobby, and the ability to shape audio prevents operator fatigue and missed visitor requests.
- PoE (802.3af) Power Integration: Draws power and data from a single Ethernet run via standard 802.3af, reducing installation labor compared to systems requiring separate 12VDC supplies and analog audio wiring. This matters in large facilities where every avoided wire run cuts material cost and future maintenance overhead. Fits seamlessly into modern IT infrastructure audits and simplifies future relocation or expansion without additional electrical work.
- SIP-Compatible Calling: Native IP telephony support means the 02407-001 can route calls to desk phones, mobile apps, or VoIP systems without gateway hardware. Critical for organizations that already run SIP infrastructure — you avoid proprietary call routing appliances and associated support overhead. Direct integration with your existing phone system eliminates the need for dedicated call bridging.
- Modular Platform Architecture: The main unit connects to compatible door entry modules, RFID/card readers, electromagnetic lock relays, and buzzer outputs. This modularity lets you scale from a single entrance to multi-building deployments without replacing the core controller — a cost advantage over monolithic systems that force forklift upgrades as your facility grows.
- ONVIF Compatibility: Standards-based access control system integration enables the 02407-001 to communicate with third-party video management platforms and access control software. This hedge against vendor lock-in is critical in enterprises managing mixed-vendor camera fleets and access control ecosystems. You can add or swap VMS components without redeploying the intercom infrastructure.
Integration & Compatibility
The 2N 02407-001 integrates with wider network video management ecosystems through ONVIF-compliant VMS systems and SIP-compatible phone systems. Before deployment, verify that your existing door entry modules, credential readers, and access control software are certified compatible with the 2N IP Style platform — mixing untested third-party modules can introduce integration delays and workarounds that negate the platform's modularity benefit.
Network infrastructure requirements are minimal: a standard PoE-enabled switch with IEEE 802.3af support handles power and data from a single Ethernet run. For facilities with distributed intercoms across multiple buildings, confirm your VMS can handle concurrent SIP sessions and that your network has sufficient bandwidth for two-way audio streams alongside video recording. A PoE switch planning guide can help size your infrastructure correctly.
Why Choose the 2N 02407-001
This unit positions itself at the intersection of IP-native architecture and true modular expansion. The IP65 rating eliminates the need for external weatherproofing enclosures, saving both capital and installation time — a meaningful difference when deploying at loading docks or outdoor security checkpoints. PoE powering removes dependency on distributed 12VDC supplies, a real operational simplification in large facilities. The SIP compatibility means your intercom calls route through existing telephony infrastructure rather than requiring dedicated hardware bridges. Modular compatibility allows you to start small (single entrance) and scale without swapping the core unit, protecting your initial investment as facility layouts or access requirements change.
When to Choose a Different Model
If your facility requires fully enclosed weatherproofing beyond IP65 (e.g., high-pressure wash environments), consider variants within the 2N IP Style family that offer higher environmental ratings or surface-mounted enclosures. If your site lacks PoE infrastructure and cannot easily add a PoE switch, a 12VDC-powered variant may reduce upfront network costs. If you require integrated video display at the entry point, the 02407-001 is an audio-only main unit — pair it with a 2N video entry device or standalone display module for visual verification.
Frequently Asked Questions
Q: Does the 2N 02407-001 require a dedicated access control server?
A: No. The 02407-001 can operate as a standalone intercom with direct SIP calling to desk phones or mobile apps. ONVIF integration with a VMS is optional and depends on whether you want centralized event logging and multi-site call routing.
Q: Can I use the 02407-001 outdoors in rain?
A: Yes. The IP65 rating means dust-tight and water-resistant, so direct rain exposure is acceptable. However, avoid direct high-pressure spray or submersion — those require IP67 or higher.
Q: What's the power budget for the 2N 02407-001?
A: It draws power via 802.3af PoE, which provides up to 15.4W at the source. The 02407-001 operates well within this envelope, so it won't require PoE+ infrastructure on your switch.
Q: Is the 02407-001 compatible with third-party door entry modules?
A: The platform supports compatible 2N modules and ONVIF-compliant devices. Before mixing brands, verify integration certification with the third-party vendor and 2N technical support — undocumented combinations can cause call routing or access control delays.
Q: Can I integrate the 02407-001 with my existing Milestone or Axis VMS?
A: Yes, via ONVIF. Confirm your VMS version supports ONVIF intercom profiles and SIP session management. Most modern VMS platforms do, but older installations may require software updates.
Jerry TildsenPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The 2N 02407-001 is a straightforward choice if your facility already has PoE infrastructure and SIP-based telephony. The IP65 rating eliminates weatherproofing headaches at outdoor checkpoints, and the modular architecture means you can build out access control gradually without ripping and replacing the core unit. That said, there are real constraints to understand before purchase.
Technical Highlights:
- IP65 + PoE 802.3af: Single Ethernet run handles both power and data — no separate 12VDC supply lines, no external enclosures needed. In a 50-door multi-building campus, that's dozens of avoided wire runs and a meaningful reduction in installation labor and future maintenance touch points.
- SIP Native: Calls route directly to your existing VoIP dial plan — no proprietary call bridge appliances. If you run Avaya, Cisco, or open-source SIP infrastructure, this integrates cleanly. If you're on legacy TDM or analog systems, you'll need a SIP gateway anyway, so the 02407-001 doesn't simplify that scenario.
- ONVIF Compliance: Standardized integration with Milestone, Axis, Hanwha, and most modern VMS platforms. You're not locked into a single vendor's ecosystem, which is critical in enterprises managing mixed-camera fleets and access control from different vendors.
Deployment Considerations:
- SIP Dependency: This unit assumes you have a working SIP infrastructure. If your facility runs only analog phones or isolated proprietary access control systems, you'll need to build that infrastructure first — the 02407-001 doesn't bridge that gap.
- Modular Compatibility Vetting: The platform is modular, but only with 2N modules or ONVIF-certified third-party devices. Mixing untested door readers or lock controllers can introduce integration delays and call-routing workarounds. Before purchase, confirm every accessory module is on the compatibility list.
- Network Bandwidth and SIP Load: Two-way audio plus concurrent SIP sessions across multiple door stations can consume noticeable bandwidth in high-traffic facilities. In a 100-door logistics hub with many simultaneous visitor calls, plan for adequate network provisioning and VMS session limits — don't just plug it in and hope.
The 02407-001 makes sense for organizations with modern IP infrastructure, SIP telephony, and a willingness to commit to the 2N IP Style modular ecosystem. It shines in campus environments and multi-building facilities where you scale access points gradually and want to centralize visitor management. Skip it if your site is analog-only or if you're evaluating competing open-standard intercom platforms that don't require module lock-in.
