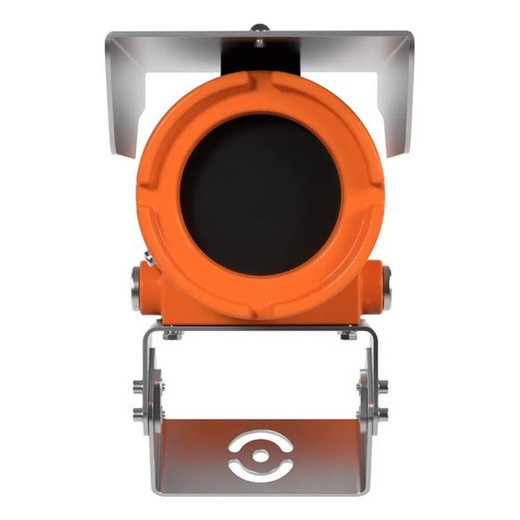

Hanwha TNO-X6323EPT1-Z 2MP Explosion-Proof Zoom Camera

Hanwha TNO-X6323EPT1-Z 2MP Explosion-Proof Zoom Camera

The Hanwha TNO-X6323EPT1-Z is a certified explosion-proof IP camera engineered for hazardous industrial environments including oil & gas, chemical processing, mining, and maritime operations. With FM (Factory Mutual) and ATEX/IECEX certifications covering Class I, II, and III Division 1 areas, this camera provides reliable surveillance compliance in flammable gas and explosive dust atmospheres while maintaining 32x optical zoom capability and advanced video analytics.

Key Features

• 2 MP resolution at 1920 x 1080 at 60 fps
• 32x optical zoom with 4.44–142.6 mm motorized lens
• FM cFMus approved: Class I II III Division 1, Groups B, C, D, E, F, G
• ATEX/IECEX certified: II 2 G Ex db IIB+H2 (gas) and II 2 D Ex tb IIIC (dust)
• IP66 rated powder-coated aluminum housing for corrosion and ingress protection
• Operating temperature range: -50°C to +55°C (-58°F to +131°F)
• PoE+ (802.3at) powered with no wiper requirement
• H.265, H.264, and MJPEG codec support
• Wide Dynamic Range (WDR) 120 dB for high-contrast environments
• Day & Night mode with ICR (Infrared Cut filter Removal)
• Digital Image Stabilization (DIS) with built-in gyro sensor
• Multiple streaming with WiseStreamII bandwidth optimization
• SD memory card slot supporting up to 256 GB
• AI-based object detection: people, faces, vehicles, license plates

Technical Specifications

• Form Factor: Explosion-Protected
• Resolution: 2 MP (1920 x 1080)
• Lens: 4.44–142.6 mm motorized zoom
• Power: PoE+ (802.3at)
• IP Rating: IP66
• Certifications: FM cFMus, ATEX/IECEX
• Durability: Outdoor-rated with extreme temperature tolerance
• Video Codecs: H.265, H.264, MJPEG

Ideal Applications

This explosion-proof zoom camera is purpose-built for mission-critical surveillance in regulated hazardous areas where standard cameras cannot operate. The combination of 32x optical zoom, low-light capability, and certified safety compliance makes it essential for perimeter monitoring, asset protection, and incident investigation in oil platforms, petrochemical plants, grain facilities, pharmaceutical manufacturing, and classified marine environments.

James Everett

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

The TNO-X6323EPT1-Z represents Hanwha's commitment to industrial-grade surveillance in the most demanding environments. Its dual certification (FM and ATEX/IECEX) eliminates compliance uncertainty across North American and European hazardous area regulations. The 32x optical zoom enables effective monitoring across large industrial footprints without image degradation from digital zoom, while WDR 120 dB ensures visibility during extreme lighting transitions common in outdoor refineries and mining operations.

PoE+ delivery via standard networking infrastructure reduces installation complexity in already-constrained hazardous area installations. The integrated AI analytics and DIS stabilization add modern operational intelligence to legacy-heavy industrial sites, supporting both reactive incident response and proactive threat detection in zones where equipment replacement is costly and downtime is measured in lost revenue per minute.
