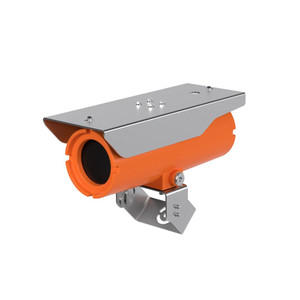

Hanwha TNO-X6320E1WT1-Z 2MP Explosion-Proof Bullet Camera

Hanwha TNO-X6320E1WT1-Z 2MP Explosion-Proof Bullet Zoom Outdoor IP Camera

The Hanwha TNO-X6320E1WT1-Z is a specialized 2MP explosion-proof bullet camera engineered for the most demanding hazardous environments. Built to withstand explosive atmospheres found in oil and gas facilities, chemical plants, refineries, and other critical industrial zones, this camera combines INMETRO, cLCus, and CSA certifications with advanced imaging capabilities to deliver reliable surveillance where safety is paramount.

Key Features

• 32x optical + 16x digital zoom with motorized focus and iris control
• Explosion-proof design certified to INMETRO Ex d IIC T4, cLCus C1/D1, and CSA standards
• 2MP (2.4MP) 1/2.8" CMOS sensor with 60fps frame rate
• Exceptional low-light performance: 0.05 Lux color, 0.005 Lux B/W with IR night vision
• IP66 weatherproof rating with integral silicone wiper blades
• Electro-polished 316L stainless steel housing for extreme durability
• Advanced video analytics with motion detection and intelligent features
• Triple codec streaming (H.265, H.264, MJPEG) with WiseStream II optimization

Technical Highlights

Imaging & Optics: The 4.44-142.6mm variable focal length lens delivers a horizontal field of view from 62.8° (wide) to 2.23° (telephoto), enabling detailed monitoring across expansive outdoor areas. The motorized 32x optical zoom combined with 16x digital zoom provides exceptional flexibility for both wide-area surveillance and targeted monitoring of specific zones.

Low-Light Performance: With color imaging at 0.05 Lux and monochrome at 0.005 Lux, the camera excels in minimal lighting conditions. Advanced features including WDR (150dB dynamic range), auto iris, auto gain control, and defog technology ensure clear imagery regardless of challenging environmental conditions.

Environmental Resilience: Operating across a temperature range of -40°C to +60°C (T1) or -60°C to +60°C (T2 option), the camera withstands extreme climates. The toughened glass window, integral wiper system with UV and ozone-resistant silicone blades, and stainless steel 316L construction with A4 stainless fixings provide comprehensive corrosion and weather protection.

Hazardous Area Compliance: Full certification under INMETRO, cLCus Class I Division 1 (Groups B, C, D) and Class II Division 1 (Groups E, F, G) standards ensures this camera meets the strictest international safety requirements for explosive atmospheres. The electro-polished construction eliminates potential ignition sources.

Networking & Integration: ONVIF Profile S/G/T compliance, dual streaming capabilities, and comprehensive protocol support (TCP/IP, RTSP, HTTPS/SSL, SNMP, DHCP) enable seamless integration into enterprise security systems.

Operational Specifications

The camera operates on 24 VAC input with maximum power consumption of 37W. Three M20 cable entries support flexible installation in confined spaces. At up to 15kg, secure mounting is essential. IP66 rating and optional IP67 capability ensure protection against dust, water jets, and harsh industrial environments.

Applications

Ideal for oil and gas operations, petrochemical facilities, mines, grain handling facilities, spray paint operations, and any ATEX-regulated environment requiring certified surveillance. The combination of high-resolution zoom imaging and hazardous-area compliance makes this camera essential for safety-critical monitoring where equipment failure poses serious risks.

James Everett

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

The TNO-X6320E1WT1-Z represents a rare intersection of industrial-grade safety certification and advanced optical capability. Unlike general-purpose outdoor cameras, every component—from the electro-polished stainless steel body to the eliminated sharp edges—is engineered to prevent ignition sources. The 32x optical zoom delivers meaningful magnification for detail extraction in hazardous zones where camera repositioning may be impractical or unsafe.

The triple codec approach with WiseStream II optimization balances bandwidth constraints common in industrial networks with resolution preservation. For facility managers in regulated explosive atmospheres, this camera's certifications are non-negotiable; compliance failure carries both legal and safety liability. The low-light sensor performance and defog technology address real-world challenges in foggy, dusty, or low-visibility industrial environments.

Budget accordingly: explosion-proof cameras command premium pricing due to design complexity and certification costs, but they are mandatory, not optional, for ATEX-regulated spaces.
