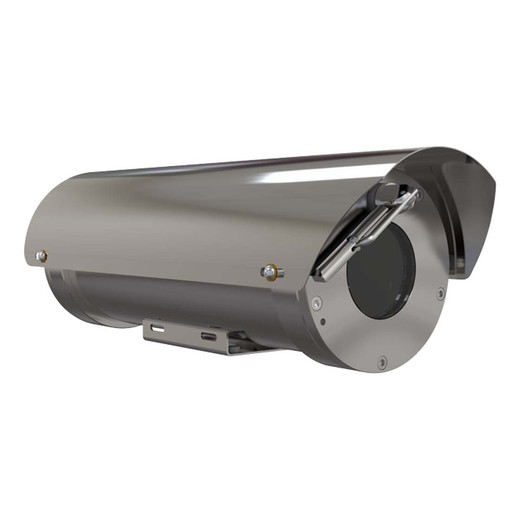

Hanwha TNO-X6320E1WT1-C 2MP Explosion Proof Bullet Camera

Hanwha TNO-X6320E1WT1-C 2MP Explosion Proof Varifocal Outdoor Bullet Zoom IP Camera

The Hanwha TNO-X6320E1WT1-C is a purpose-built 2MP explosion-proof surveillance camera designed for deployment in hazardous industrial environments where conventional security systems cannot operate safely. This robust bullet camera combines certified explosive atmosphere protection with advanced imaging technology, making it essential for oil refineries, chemical plants, gas pipelines, and other Class I Division 1 locations.

Key Features

• Explosion-proof housing certified to INMETRO Ex d IIC T4/T5, CSA Class I Division 1 Groups B, C, D, and cLC standards
• 32x optical and 16x digital zoom varifocal lens (4.44–142.6mm) with 62.8° to 2.23° horizontal field of view
• 2MP 1/2.8" CMOS sensor with 2.4MP capability for crisp, detailed imagery
• Exceptional low-light performance: 0.05 Lux color / 0.005 Lux B&W at 1/30sec with F1.6 iris
• Integrated IR night vision for 24/7 surveillance in complete darkness
• IP66 weatherproof rating with stainless steel 316L construction for harsh outdoor environments
• Electro-polished 316L stainless steel housing and A4 stainless steel fixings resist corrosion
• Integrated silicone wiper blades resistant to ozone, UV, ice, snow, extreme heat and cold
• Extended temperature range: -40°C to +60°C (T1) or -60°C to +60°C (T2)

Technical Highlights

Video Processing & Streaming: Triple codec support (H.265, H.264, MJPEG) with WiseStream II intelligent bitrate management, multiple simultaneous streams, and both VBR/CBR modes for flexible bandwidth optimization.

Advanced Analytics & Intelligence: Intelligent video analytics, motion detection, day/night ICR switching, 150dB WDR for extreme lighting conditions, HLC (Highlight Compensation), auto-focus, auto-iris, AGC, SSDR (Smart Scene Dynamic Range), SSNR III noise reduction, BLC (Backlight Compensation), gyro-assisted DIS (Digital Image Stabilization), and defog processing.

Connectivity & Protocol Support: ONVIF Profile S/G/T compliant with comprehensive standards including TCP/IP, UDP/IP, RTP, RTSP, HTTPS/SSL-TLS encryption, DHCP, FTP, SMTP, DNS, DDNS, SNMPv1/v2c/v3, and UPnP for seamless network integration.

Power & Installation: PoE-powered at 24 VAC with maximum 37W consumption. Three M20 cable entries on rear housing flange accommodate hazardous-area conduit installations. Toughened glass camera window provides optical clarity while maintaining safety integrity.

Industrial Applications

Ideal for monitoring explosive atmospheres in oil and gas production facilities, refineries, chemical processing plants, mining operations, grain storage facilities, and other Class I/II Division 1 locations requiring certified hazardous-area surveillance with professional-grade image quality and reliability.

James Everett

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

The TNO-X6320E1WT1-C represents the convergence of industrial safety certification and surveillance performance. Its dual certification pathway (INMETRO and CSA cLC) ensures compliance across North American and international hazardous-location standards. The 32x zoom capability addresses a critical need in explosive atmospheres—the ability to maintain safe monitoring distances while capturing actionable detail.

The extensive temperature rating (especially the optional -60°C variant) and corrosion-resistant 316L stainless construction deliver longevity in harsh petrochemical environments where regular camera replacement would be operationally disruptive. Low-light sensitivity (0.005 Lux B&W) and integrated defog/DIS processing ensure surveillance continuity during dawn/dusk operations and poor visibility conditions common in industrial zones. H.265 codec support with WiseStream II optimization provides storage and bandwidth efficiency—critical in remote or bandwidth-constrained hazardous locations.

For operators requiring certified, zoom-capable surveillance in Class I Division 1 environments, this camera eliminates the typical trade-off between safety certification and imaging sophistication.
