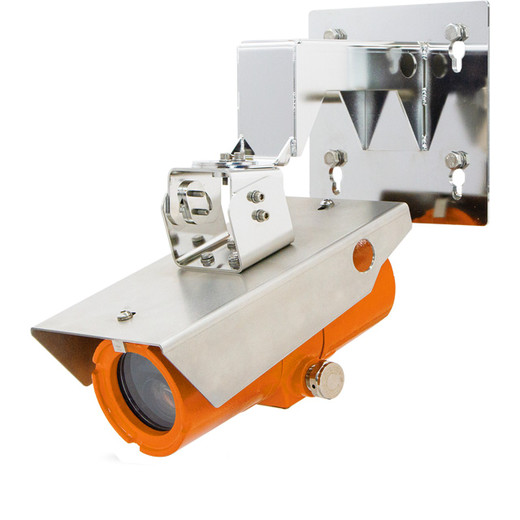

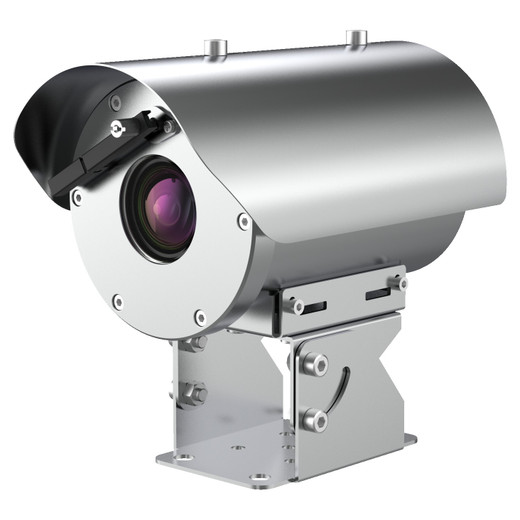

Hanwha TNO-X6322EPT1-Z 2MP Explosion Proof Bullet Camera

Hanwha TNO-X6322EPT1-Z 2MP Explosion Proof Varifocal Outdoor Zoom Bullet IP Camera

The Hanwha TNO-X6322EPT1-Z is a specialized 2MP explosion-proof IP bullet camera engineered for the most hazardous industrial environments. Combining high-resolution imaging with certified explosion-proof construction, this camera delivers reliable surveillance in oil refineries, chemical plants, gas facilities, and other regulated spaces where standard cameras cannot operate. Its varifocal zoom lens and advanced imaging technologies provide operators with the flexibility and clarity needed for critical security monitoring.

Key Features

• 2MP (1944 x 1212) 1/2.8" CMOS sensor with progressive scan
• 32x optical varifocal zoom lens (4.44–142.6mm) with DC auto iris
• Explosion-proof housing rated for hazardous area deployment
• IP66 weather-resistant, powder-coated aluminum construction
• Day/night capability with auto ICR and IR night vision
• Advanced WDR (150dB) and digital noise reduction (2D+3D)
• PoE powered with optional 12-24V DC heater for extreme temperatures
• Comprehensive video analytics: motion detection, loitering, intrusion, face detection, virtual line crossing, audio detection, and defocus detection
• Multiple video codec support: H.265, H.264, MJPEG with Smart Codec optimization
• Up to 60fps at all resolutions with dual streaming capability (10 profiles maximum)
• Bi-directional audio with G.711 and G.726 compression
• SD/SDHC/SDXC edge storage (up to 256GB) with NAS and FTP support
• Digital PTZ with 24x zoom and preset/group control
• RS-485 remote control supporting Pelco-P/D, Samsung, and multiple protocols
• ONVIF profile S/G and Wisenet Open Platform compatible

Technical Highlights

The TNO-X6322EPT1-Z excels in low-light performance with color sensitivity at 0.05 Lux (F1.6) and black & white at 0.005 Lux, ensuring visibility around the clock. Its 32x optical zoom combined with 24x digital PTZ provides extensive coverage without additional cameras. The 150dB wide dynamic range with HLC (highlight compensation) and SSDR contrast enhancement deliver balanced exposure even in mixed lighting. Advanced defog and lens distortion correction (LDC) technologies maintain image clarity in challenging conditions.

Security features include 802.1X authentication, HTTPS/SSL encryption, IP filtering, and user access logging. The camera supports up to 20 simultaneous users over unicast streaming and includes intelligent motion detection with 8 polygonal zones and 32 privacy masking areas. Event-triggered recording and alarm management enable automated responses to tampering, motion, or video analytics triggers.

Environmental Durability

Built for extreme conditions, the TNO-X6322EPT1-Z operates from -40°C to +60°C (with heater) or -10°C to +55°C (PoE only). Its IP66 rating and RAL2000 yellow-orange powder-coated aluminum housing provide corrosion and impact resistance. Optional integrated heating ensures operation in freezing environments.

Applications

• Oil and gas refineries and storage facilities
• Chemical manufacturing and processing plants
• Petrochemical complexes
• Hazardous material storage areas
• Explosive atmosphere monitoring (Zone 1/2 classified areas)
• Industrial perimeter and facility surveillance

James Everett

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

The TNO-X6322EPT1-Z addresses a critical gap in industrial security: reliable surveillance in hazardous environments. Explosion-proof certification is essential—not optional—for facilities handling flammable materials, and this camera delivers that assurance without sacrificing imaging quality. The 32x varifocal zoom reduces blind spots and minimizes deployment complexity, particularly valuable in sprawling industrial complexes.

Its 150dB WDR handles the dynamic lighting common in outdoor industrial settings, from sun-exposed perimeter areas to shadowed storage zones. The integration of advanced analytics (virtual line crossing, loitering detection, directional tracking) provides proactive threat response rather than passive recording. Edge storage and multi-profile streaming enhance reliability in environments where centralized NVR systems may be impractical.

For compliance-driven sectors requiring both safety certification and forensic-quality video, the TNO-X6322EPT1-Z is a justified investment.
