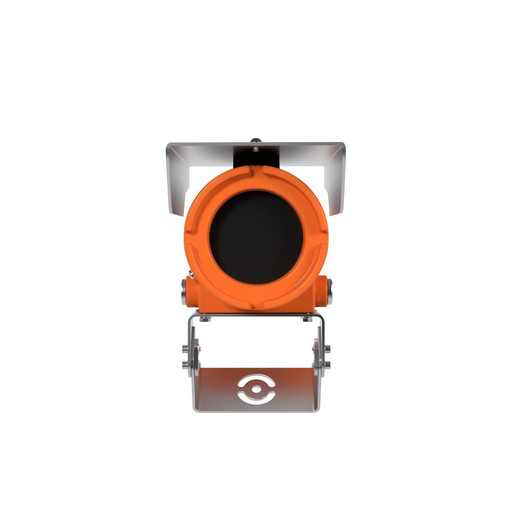

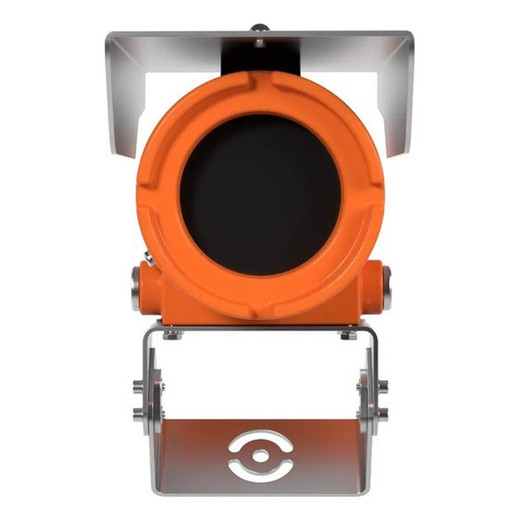

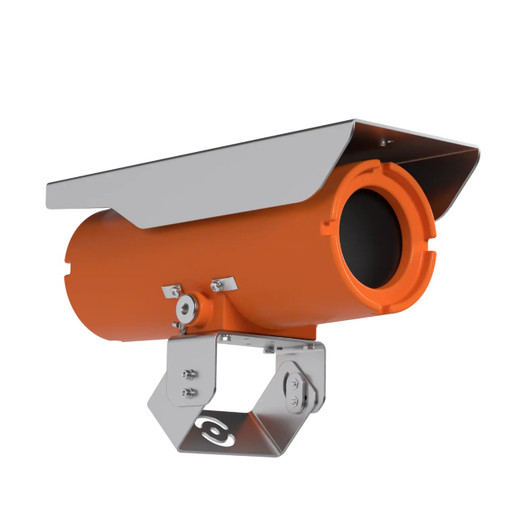

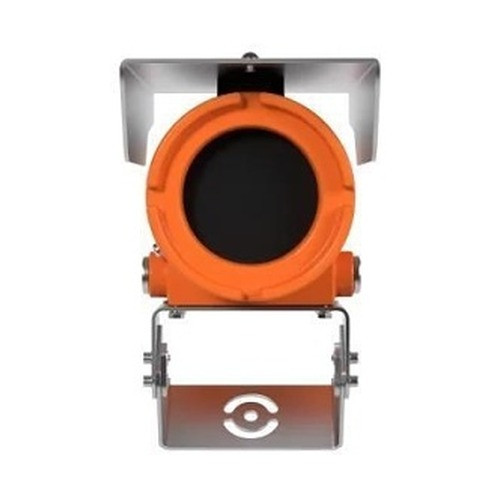

Hanwha TNO-X6073EPT1-Z 2MP Explosion-Proof Camera
The Hanwha TNO-X6073EPT1-Z is a 2MP explosion-proof fixed camera engineered for hazardous environments where standard surveillance equipment poses ignition risks. Built with FM, ATEX, and IECEX certifications, this camera delivers reliable surveillance in classified zones including petrochemical facilities, oil and gas operations, refineries, and chemical processing plants. The rugged powder-coated aluminum Type 4x housing protects the advanced imaging sensor across extreme temperature ranges from -50°C to +55°C, while PoE+ powering eliminates the need for separate electrical infrastructure in explosive atmospheres.
Key Features
- 2MP 1920×1080 resolution at 60 fps using XNB-6000 sensor
- 2.8–9mm auto-iris P-iris varifocal lens with intelligent focus control
- FM approved: Class I II III Division 1 Groups B, C, D, E, F, G
- ATEX and IECEX certified: Zone 1/21 IIB+H2
- IP66 rated for dust and water ingress protection
- PoE+ (802.3at) powered—no auxiliary power required
- Wide operating temperature: -50°C to +55°C
Video & Compression Capabilities
The TNO-X6073EPT1-Z supports H.265, H.264, and MJPEG codecs with multiple simultaneous streams and Hanwha's WiseStreamII bandwidth optimization. Day/night imaging with ICR technology and 150dB WDR ensures clear visibility across challenging lighting conditions. Built-in digital image stabilization with gyro sensor compensation maintains steady video in outdoor environments subject to vibration or movement.
Storage & Reliability
Dual SD memory card slots (up to 2×256GB each) provide local recording and failsafe backup independent of network connectivity. The sealed housing design and Type 4x construction deliver hazardous-zone compliance without compromising optical or thermal performance.
Applications
- Oil and gas production, exploration, and refining
- Petrochemical manufacturing and processing
- Chemical storage and handling facilities
- Grain elevators and agricultural processing
- Mining and mineral extraction operations
- Wastewater treatment and biogas facilities
- Hazardous material warehousing and logistics
James EverettPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The TNO-X6073EPT1-Z addresses a critical gap in industrial surveillance where regulatory compliance and safety are non-negotiable. Multi-standard certification (FM, ATEX, IECEX) simplifies deployment across jurisdictions without redundant equipment. The PoE+ integration is particularly valuable in hazardous zones—it eliminates the complex electrical infrastructure, isolation transformers, and conduit runs that would otherwise be required to meet explosive atmosphere codes.
The 2MP/60fps sensor paired with varifocal optics and 150dB WDR provides sufficient detail capture for personnel identification and equipment monitoring in outdoor industrial settings. Dual SD card redundancy ensures investigative footage survives network outages or power disruptions common in remote production environments. For facilities managing Class I Division 1 or ATEX Zone 1 areas, this camera represents a compliance-first design that does not sacrifice image quality or operational flexibility.
