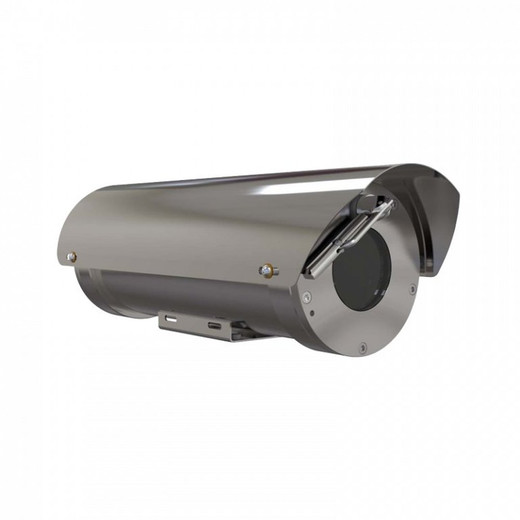

Hanwha TNO-X6320E2F2T1-Z Explosion Proof Zoom Camera

Hanwha TNO-X6320E2F2T1-Z Explosion Proof Zoom Camera

The Hanwha TNO-X6320E2F2T1-Z is a high-performance explosion-protected IP camera engineered for hazardous environments requiring cLCus C1/D1 certification. Built on the robust XNZ-6320 platform and powered by 110VAC, this camera delivers professional-grade surveillance with advanced optical zoom and intelligent analytics in areas where standard cameras cannot operate.

Key Features

• 1080p video at 60fps with 32x optical zoom and continuous autofocus
• Explosion-proof housing with cLCus C1/D1 certification for hazardous area compliance
• IP66/IP67/IP68 ratings for complete dust and water immersion protection
• 125dB Wide Dynamic Range (WDR) for superior image clarity in challenging lighting
• Single-mode fiber connectivity with no wiper mechanism for reliable performance
• Dual micro SD/SDHC/SDXC memory slots for local backup and continuous recording
• Intelligent video analytics and built-in intelligent wiper control
• Extended operating temperature range: -40°C to +60°C (-40°F to +140°F)
• Multiple simultaneous streaming protocols for flexible integration

Technical Specifications

This explosion-protected camera is purpose-built for demanding outdoor and hazardous environments. The XNZ-6320 base platform provides enterprise-grade imaging with the 32x optical zoom enabling detailed surveillance across large areas. The single-mode fiber interface eliminates electrical hazards while maintaining full bandwidth for real-time streaming and analytics processing. Dual memory card slots enable redundant recording and extended storage without external infrastructure.

The IP66/IP67/IP68 environmental sealing ensures operation in severe weather, washdown conditions, and temporary immersion scenarios. Operating reliably across extreme temperatures from -40°C to +60°C, this camera maintains performance in arctic and tropical environments. The 125dB WDR sensor captures detail in both bright sunlight and deep shadows simultaneously, critical for outdoor hazardous area monitoring where dynamic lighting cannot be controlled.

Applications

Ideal for oil and gas facilities, chemical plants, mining operations, pharmaceutical manufacturing, grain elevators, and other Class I and Division 1 hazardous locations. The combination of optical zoom, fiber connectivity, and explosion-proof construction makes it suitable for perimeter monitoring, equipment surveillance, and process documentation in areas where fire or explosion risk prohibits standard electrical equipment.

James Everett

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

The TNO-X6320E2F2T1-Z represents Hanwha's specialized approach to hazardous-area surveillance. The "-Z" designation confirms cLCus C1/D1 certification, meaning this camera meets stringent North American standards for explosive atmospheres containing flammable gases or vapors in normal operating conditions. The single-mode fiber interface is not merely a convenience feature—it's a critical safety requirement, as it prevents electrical ignition sources in hazardous zones.

The 32x optical zoom paired with 1080p resolution allows operators to identify details from safe distances without compromising image quality through digital enhancement. The 125dB WDR specification is particularly relevant for outdoor hazardous areas where glare from metal structures or reflective surfaces can overwhelm standard sensors. Dual SD card recording provides operational continuity even if one storage device fails, essential in safety-critical applications where video loss could create compliance or incident investigation gaps.
