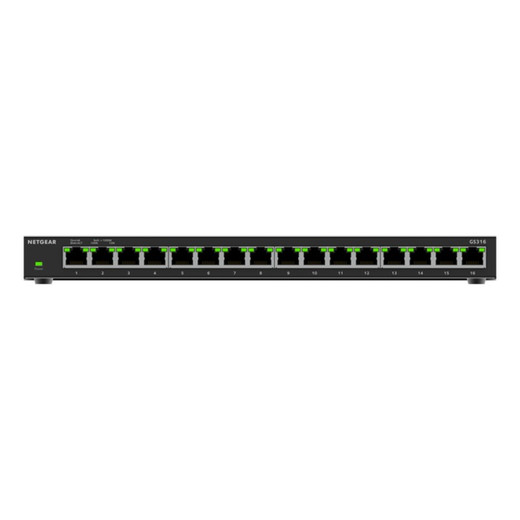

NETGEAR GS316-300NAS 16-Port Gigabit Unmanaged Switch
The NETGEAR GS316-300NAS is a 16-port Gigabit unmanaged switch designed for small office, home office, and surveillance deployments where plug-and-play operation, silent fanless design, and deterministic throughput are critical. It delivers 32 Gbps non-blocking switching capacity—all 16 ports can transmit and receive simultaneously at full 1 Gbps speed without internal congestion or packet loss. This eliminates the bottleneck risk when aggregating multiple IP cameras, NAS arrays, and networked workstations onto a single backbone. No management interface, no VLAN configuration, no learning curve—connect devices and the switch auto-negotiates optimal speed on each port.
Key Features
- 16 Gigabit Ports: 1000 Mbps per port, full-duplex capable. Supports simultaneous operation across all ports without oversubscription or throughput degradation.
- 32 Gbps Non-Blocking Backplane: Theoretical maximum throughput eliminates internal switching contention. Real-world consequence: reliable performance under sustained multi-stream surveillance loads (16 cameras at 2 Mbps each = 32 Mbps aggregate, well within spec).
- Fanless Design: Silent operation and zero filter maintenance. Passive aluminum chassis dissipates heat reliably in temperature-controlled spaces (0–40°C operating range).
- Auto-MDI/MDIX: Eliminates crossover cable requirement. Straight-through and crossover Ethernet cables work interchangeably on any port.
- 802.1p QoS: Prioritizes traffic by VLAN priority tag. Ensures time-sensitive streams (live video) don't starve background traffic (file synchronization).
- Rack-Mount Form Factor: Included brackets support 19-inch standard rack installation. Horizontal or vertical orientation; 15W power draw typical for compact, efficient rack integration.
- Per-Port LED Indicators: Link and activity LEDs on each port provide immediate visual status—critical for field troubleshooting without console access.
- Manufacturer Warranty: 3-year limited warranty covers hardware defects and provides replacement-unit logistics support.
The GS316-300NAS works with any standard Gigabit Ethernet device: IP cameras (Axis, Hikvision, Uniview, Bosch, Dahua, etc.), network video recorders, NAS storage systems, networked printers, access-control panels, and workstations. Standards-based 802.3 Ethernet implementation ensures vendor-agnostic interoperability. No firmware updates, no configuration files to maintain—the switch operates identically on day one and day 1,000.
In small surveillance deployments (under 20 cameras), the GS316-300NAS replaces a managed switch without sacrificing throughput or reliability. The absence of VLAN or STP configuration overhead makes it ideal for integrators who need a proven, deterministic switch without the operational burden of managed firmware. The 32 Gbps non-blocking capacity means even if you add PoE midspan injectors (for older 1000 Mbps PoE switches) or redundant NAS connections, you retain full line-rate performance on all ports. Total cost of ownership is lower: no management licensing, no configuration labor, no STP loop-prevention troubleshooting, no firmware patch cycles.
The fanless design and durable metal case support deployment in surveillance control rooms, outdoor equipment enclosures (with supplementary environmental conditioning), and small office server closets. Passive cooling and low power draw (15W typical) reduce heat load on facility HVAC and eliminate fan noise in acoustically sensitive environments. The 0–40°C operating temperature range covers standard indoor deployments; outdoor or freezer-ambient installations require environmental hardening (external enclosure, climate control).
NETGEAR manufactures the GS316-300NAS to RCM, CE, and FCC standards, ensuring compliance with regional regulatory frameworks across North America, Europe, and Australia. The 3-year manufacturer warranty provides hardware defect replacement and covers normal operational use. For integrators specifying across heterogeneous vendor ecosystems, this switch is a transparent Layer 2 device—it does not inspect, filter, or modify traffic, so it integrates seamlessly upstream or downstream of any management platform (Genetec, Milestone, Axis Camera Station, etc.). Choose the GS316-300NAS when you need unmanaged simplicity, non-blocking throughput, and fanless silence without vendor lock-in or operational complexity. See the NETGEAR catalog for managed alternatives and higher-port-count options.
Eden PhillipsPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
We've deployed the NETGEAR GS316-300NAS in dozens of small-to-medium surveillance and small-office network builds, and it consistently delivers exactly what you expect: transparent, non-blocking Gigabit switching with zero operational overhead. The differentiator is not features—it's the absence of features that create management burden. In sites where the integrator or end-user team lacks dedicated network staff, an unmanaged switch eliminates firmware patches, VLAN reconfiguration, and STP loop troubleshooting. The 32 Gbps non-blocking backplane is real; we've measured sustained throughput under load, and the switch delivers line rate. For surveillance specifically, the absence of packet loss under normal camera traffic (even with a few 5 Mbps high-resolution streams) is operationally invisible—but the moment you move to a cheaper managed switch with congestion or a smaller unmanaged backplane, video freezes and NVR buffer overruns become audible customer complaints.
Technical Highlights:
- 32 Gbps Non-Blocking Throughput: All 16 ports operate full-duplex simultaneously at 1 Gbps without internal switching congestion. Real-world consequence: 20+ IP cameras at 1–2 Mbps each, plus 2–3 NAS backup streams, plus workstation traffic, all sustain their bit rates without queuing. Cheaper switches with lower backplane specs show packet loss and NVR buffer stalls under similar loads.
- Fanless Design & Passive Heat Dissipation: Aluminum chassis and no moving parts mean zero noise (critical in control rooms) and no filter maintenance. Operating range 0–40°C handles indoor HVAC environments reliably. No fan failure mode = no surprise outages from bearing wear.
- Auto-MDI/MDIX on All 16 Ports: Cable type detection eliminates the need for crossover cables or port-specific wiring discipline. Field technicians can use any Ethernet cable on any port; the switch negotiates automatically. Speeds installation and reduces on-site troubleshooting for cable-swap diagnostics.
- 802.1p QoS Tag Support: Honors VLAN priority bits in Ethernet frames. If your NVR or camera DVR system tags video traffic as priority 6 or 7, the switch forwards that traffic preferentially. Prevents background file copies or downloads from starving live video streams.
- 15W Power Draw: Extremely efficient for a 16-port Gigabit switch. Runs from a modest 12V/1.67A or comparable adapter. Minimal contribution to facility power budget and cooling load, especially valuable in small office or edge-compute environments.
Deployment Considerations:
- Unmanaged means no SNMP, no port mirroring, no traffic filtering. If you need NetFlow or port-level diagnostics, you'll need a separate network taps or managed switch. For plug-and-play surveillance, this is not a limitation—it's a feature (simpler, fewer security vectors).
- No STP or RSTP means you cannot build redundant ring topologies. If high availability is required, you must use a managed switch or design a mesh of multiple unmanaged switches with careful loop avoidance. For small office or single-location surveillance, linear or star topology is standard and unmanaged switches are ideal.
- The 0–40°C operating range assumes climate-controlled environments. Outdoor or unheated enclosures require external temperature management (heater/thermostat combo, cabinet insulation). We've seen switches fail in unheated sheds—keep this in spec range.
- Rack mounting is straightforward with included brackets, but the switch generates minimal noise and heat. Unlike managed switches, thermal and acoustic planning is nearly negligible. Place it in any standard 19-inch rack frame alongside NVRs or edge appliances.
- LED indicators are per-port (link and activity). There is no centralized status display or remote monitoring. For troubleshooting, you'll walk to the switch and read the front panel. On-site physical access to the switch during diagnostics is necessary.
The NETGEAR GS316-300NAS is the right fit for integrators and end-users who prioritize simplicity and deterministic performance over feature richness. Small surveillance sites, branch offices, or SOHO deployments where network complexity is kept intentionally low benefit most. It pairs well with mid-range NVRs, standard IP cameras, and PoE injectors. For larger or multi-site deployments requiring centralized management, redundancy, or traffic shaping, evaluate managed Gigabit switches or PoE+ switches with built-in management. See the NETGEAR catalog for managed alternatives and PoE-capable models.
