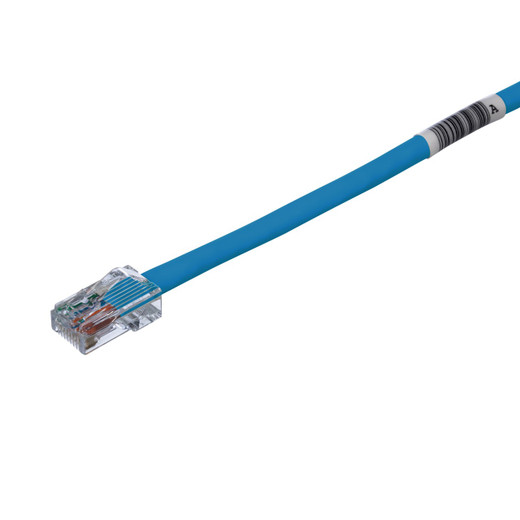

Panduit UTPCH15BUY 15ft Cat5e UTP Patch Cord

Overview

The Panduit UTPCH15BUY is a 15-foot (4.57m) blue Cat5e Unshielded Twisted Pair (UTP) patch cord designed for reliable data transmission in commercial and industrial environments. Constructed with 24 AWG stranded copper and featuring integral pair managers and patented tangle-free latches, this cord streamlines network installations and maintenance. Its CM flammability rating ensures compliance for in-wall or riser applications. The integrated RapidID barcode simplifies port mapping and asset management when used with compatible software.

Compatibility

This patch cord supports Ethernet standards including 10BASE-T, 100BASE-T (Fast Ethernet), and 1000BASE-T (Gigabit Ethernet). It is also compatible with 155 Mb/s and 622 Mb/s ATM, Token Ring 4/16, and voice/data systems, including Voice over Internet Protocol (VoIP). The cable is wired for compatibility with both T568A and T568B schemes. It is designed to support IEEE 802.3af (PoE), 802.3at (PoE+), and 802.3bt (PoE++ up to Type 4) applications, ensuring power delivery without degradation for connected devices.

Installation Notes

The cable meets ANSI/TIA-568.2-D Category 5e and ISO 11801 Class D standards. Its CM (Communications Multipurpose) flammability rating is suitable for use in building risers or plenum spaces where permitted by code. The tangle-free latch design prevents snagging during installation and simplifies disconnection. Each cord is 100% performance tested for wire map, Near-End Crosstalk (NEXT), and return loss.
