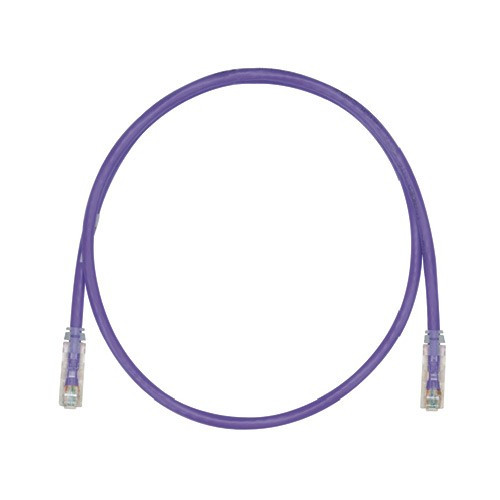

Panduit UTPSP15VLY TX6 PLUS Cat 6 UTP Patch Cord, 15-Foot, Violet

The Panduit UTPSP15VLY delivers TX6 PLUS performance in a 15-foot Cat 6 UTP patch cord engineered for high-density structured cabling deployments. Built with 24 AWG stranded copper and factory-terminated RJ45 modular plugs, this violet patch cord addresses the realities of modern network installs: tight spaces, frequent moves/adds/changes, and the need for reliable 10GBASE-T and PoE++ power delivery. The patented tangle-free latch prevents snags during pulls through cable managers and ensures fast, frustration-free release when reconfiguring ports. RapidID barcode integration enables automated port mapping and documentation using Panduit's RapidID software, cutting commissioning time on large switch deployments. Violet color-coding supports structured TIA-606-C administration standards for voice, security VLANs, or cross-connect identification in mixed-infrastructure environments.

Key Features

• TX6 PLUS Performance: Exceeds ANSI/TIA-568.2-D and ISO 11801 Class E component requirements across 1-250 MHz, supporting 10GBASE-T Ethernet over specified distances and legacy protocols down to 10BASE-T.
• Tangle-Free Latch: Patented latch design prevents cable snags in high-density patch panels and ensures single-handed release without damaging the boot or strain relief.
• RapidID Enabled: Pre-installed barcodes integrate with RapidID port mapping software for automated documentation, reducing human error during commissioning and post-install audits.
• PoE++ Rated: Tested to 2,500 insertion cycles under IEEE 802.3af/at/bt Type 3 and Type 4 power loads, suitable for high-wattage PoE camera and access point installations.
• 24 AWG Stranded Construction: Stranded conductors provide flexibility for repeated flexing in movable equipment connections, patch panel dressing, and tight-radius routing behind racks.
• Slender Strain Relief Boot: Low-profile boot design permits closer port spacing in congestion-prone areas like top-of-rack switches and high-port-count aggregation panels.
• 100% Factory Tested: Every cord verified for wire map, NEXT, and return loss before shipment, eliminating field failures from manufacturing defects.

The UTPSP15VLY uses a centered de-embedded plug design with an integral pair manager to maintain geometry through the termination, preserving signal integrity at frequencies critical to 10GBASE-T (500 MHz effective for advanced encoding). The unshielded twisted pair (U/UTP) construction suits environments without external EMI concerns, simplifying grounding requirements compared to shielded alternatives. CM flammability rating meets general plenum and riser substitution rules under NEC Article 800, though verify AHJ acceptance for specific air-handling space applications. The violet jacket is constructed from durable thermoplastic that resists abrasion during pulls and maintains color consistency for long-term administration compliance.

In high-density ToR switch deployments, the tangle-free latch and slender boot reduce the effort required to add or remove connections in fully populated 48-port scenarios. The 15-foot length bridges typical rack-to-adjacent-rack distances or in-rack switch-to-patch-panel runs without excessive service loops that consume cable management capacity. RapidID barcode integration streamlines large-scale projects: scan the cord barcode and target port, and the software auto-populates your as-built documentation and port schedule. This workflow cuts hours off commissioning for 500+ port data center builds or multi-building campus rollouts. The cord supports 155 Mb/s through 1.2 Gb/s ATM, Token Ring 4/16, analog and digital video, and VoIP applications, making it suitable for converged infrastructure carrying surveillance, access control, and voice traffic over a unified Cat 6 backbone.

Compliance with ANSI/TIA-1096-A modular plug performance specifications and IEC 60603-7 interface standards ensures interoperability with standards-compliant jacks from any manufacturer. UL 1863 listing and RoHS material compliance meet procurement requirements for government, healthcare, and enterprise projects with strict environmental and safety mandates. The TX6 PLUS platform is widely deployed in mission-critical networks where downtime from a failed patch cord translates to lost revenue or safety risks—the combination of factory testing, robust strain relief, and proven connector geometry provides the reliability integrators need when uptime is non-negotiable.
