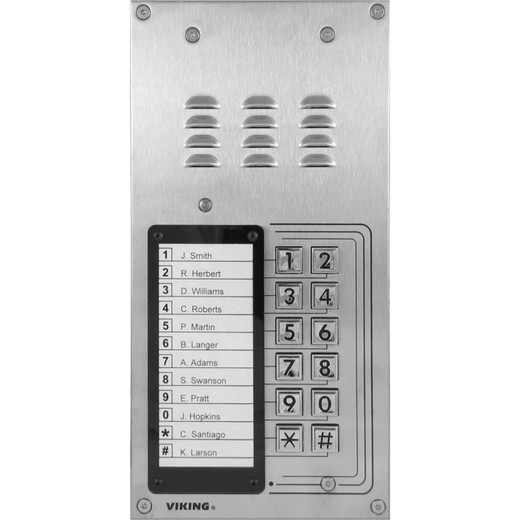

Viking Electronics K-1200 12-Button Apartment Entry Phone with Built-In Door Strike Relay

Overview

The Viking Electronics K-1200 is a flush- or surface-mount apartment entry phone engineered for multi-tenant residential and light commercial access control deployments. It provides two-way, handsfree telephone communication across 12 individually programmable resident buttons, and integrates a built-in door strike relay so you can release an electric lock directly from the unit — no separate relay module required. If you're wiring a 12-unit apartment building and need a single device that handles both resident call-up and door release, the K-1200 (often searched as K 1200) is the straightforward answer.

The faceplate is 14-gauge louvered 316 stainless steel with permanent laser-etched graphics — the same alloy specification used in marine hardware, which means it resists corrosion in coastal or high-humidity environments where lesser materials pit and stain within a season. The IP66 rating confirms the enclosure blocks sustained water jets and dust ingress, making it serviceable in covered outdoor vestibules without additional weatherproofing. Operating temperature range spans -35°C to 66°C (-31°F to 151°F), covering outdoor installations across virtually every North American climate zone, including northern exposure in Minnesota winters.

Mounting flexibility is a practical differentiator here. The K-1200 installs flush or surface-mount; when surface mounting is preferred, the optional VE-5x10 surface mount box provides a clean, finished enclosure rather than a raw conduit stub-out. This matters on brick or concrete facades where flush routing is expensive or structurally impractical.

Key Features

• 12 Resident Call Buttons: Each button is individually assigned to a tenant's phone line — supports up to 22 speed-dial digits per button for direct PSTN or PBX extension routing without an external dial controller. For a 12-unit building, this covers every unit in a single device.
• Built-In 5A Door Strike Relay: Rated 5A at 30VDC or 250VAC, the onboard relay handles the majority of electric strike and magnetic lock loads without an external relay board. This eliminates a wiring home-run and a panel-mount relay, keeping your hardware count and enclosure space lean.
• Auxiliary Camera Relay: A second relay rated 0.5A at 125VAC / 1.0A at 30VDC provides a switched output for an optional door camera — useful when the property manager wants visual verification before buzzing someone in, integrated cleanly at the entry point.
• Wide Power Input Range (12–24V AC/DC): Accepts both AC and DC supply across a 12–24V band. In practice, this means you can power from a standard 16V AC doorbell transformer already on-site, a 12V DC access control power supply, or a 24V DC panel — without a dedicated transformer purchase or voltage conversion.
• IP66 Ingress Protection: Blocks dust entirely and resists sustained water jets from any direction. Suitable for covered exterior vestibule installation without a secondary waterproof housing. Skip this rating only if the unit will face unobstructed rainfall or full submersion — those require IP67 or higher.
• 316 Stainless Steel Faceplate (14-Gauge Louvered): Grade 316 SS is notably more corrosion-resistant than the more common 304 alloy, particularly against chloride environments (coastal, pool, chemical-adjacent). Laser-etched graphics won't peel, fade, or rub off over a decade of tenant use the way adhesive or painted labels do.
• Heavy-Duty Metal Keypad: Metal actuators instead of plastic membrane keys resist vandalism, weather cycling, and the physical abuse a multi-tenant entry sees daily. Relevant on any property where tenant turnover is high or the location is semi-public.
• Mylar Speaker Element: Mylar diaphragm construction provides consistent audio quality across the operating temperature range without the brittleness that affects some speaker materials at sub-zero temperatures — relevant when the unit sits at -35°C during a hard winter freeze.
• Broad Operating Temperature (-35°C to 66°C): The low end covers unheated outdoor vestibules and northern climate exterior installs; the high end handles sun-baked southern exposures where a metal enclosure in direct sun can exceed 50°C ambient. Most competing units are rated only to -20°C.
• Alternate Number Programming (22 Digits): Each button can also store a 22-digit alternate number — typically a cell phone — so residents who forward calls receive the door buzzer on their mobile without any changes to the entry phone wiring or programming.

Integration & Compatibility

The K-1200 connects to standard POTS telephone lines or analog PBX extensions — it does not require VoIP infrastructure. For SIP/VoIP deployments, Viking offers the K-1200-IP variant, which adds a SIP stack while retaining the same mechanical form factor, stainless construction, and relay specifications. If your property is transitioning from analog to hosted PBX, you can install the K-1200 now and swap to the K-1200-IP later without changing the rough-in or faceplate opening.

The built-in door strike relay pairs directly with most standard electric strikes and fail-secure magnetic locks rated within the 5A/30VDC or 5A/250VAC envelope. For higher-current locks or access control panel integration, a relay expander or external power transfer relay is needed — the onboard relay is not rated for high-current mag-lock solenoids above 5A. Verify your lock's inrush current before wiring direct.

When surface mounting is required, pair the K-1200 with the Viking VE-5x10 surface mount box for a finished installation. For larger apartment entry system builds or multi-door deployments, review Viking's broader entry phone line to match door count and tenant capacity to the right panel size. See the access control planning guide for relay wiring, lock selection, and power supply sizing guidance applicable to this class of device.

Frequently Asked Questions

Q: Can the K-1200 connect to a VoIP or SIP phone system?

A: The standard K-1200 is designed for analog POTS lines and analog PBX extensions. For SIP/VoIP environments, Viking makes the K-1200-IP, which shares the same enclosure and relay hardware but adds a SIP stack for hosted and on-premise IP PBX systems.

Q: What door strikes and locks can the built-in relay drive directly?

A: The onboard door strike relay is rated 5A at 30VDC or 250VAC. Most standard electric strikes and low-current magnetic locks fall within this range. For high-inrush mag-locks or locks exceeding the 5A rating, use an external power transfer relay and verify the lock manufacturer's inrush specification before wiring direct.

Q: Is the K-1200 rated for outdoor installation?

A: Yes. The K-1200 carries an IP66 ingress protection rating, blocking dust entirely and resisting sustained water jets from any direction. Combined with its -35°C to 66°C operating temperature range, it is suitable for covered outdoor vestibule mounting across virtually all North American climate zones. It is not rated for submersion.

Q: What are the mounting options for the K-1200?

A: The K-1200 installs flush mount (into a standard wall cutout) or surface mount using the optional Viking VE-5x10 surface mount box. Surface mounting is the practical choice on masonry or concrete facades where cutting a flush opening is costly or structurally impractical.

Q: How many residents can the K-1200 serve, and can residents use a cell phone?

A: The K-1200 has 12 buttons, one per resident or unit. Each button stores up to 22 speed-dial digits for the primary number and an additional 22-digit alternate number — typically a mobile number — so residents can receive entry calls forwarded to their cell phone without any changes to the entry phone wiring.

Q: What power supply does the K-1200 require?

A: The K-1200 accepts 12 to 24 volts AC or DC. This covers a standard 16V AC doorbell transformer, a 12V DC access control power supply, or a 24V DC panel supply — no dedicated transformer purchase required in most cases.

Eden Phillips

The detail I always flag on the K-1200 is the door strike relay rating: 5A at 30VDC or 250VAC built right into the unit. That spec matters because most analog entry phone installs still use a separate relay board wired back to a power supply, adding a failure point and a home-run cable. Viking's decision to embed this directly means a tighter wiring package and one fewer component to troubleshoot at 2 AM when a tenant is locked out.

Technical Highlights:

• 316 SS Faceplate (14-Gauge Louvered): Grade 316 alloy resists chloride corrosion — meaningful on coastal properties or any building where road salt spray reaches the entry. Laser-etched graphics won't degrade even after a decade of weather exposure and tenant contact.
• -35°C to 66°C Operating Range: The low-end spec covers northern exterior installs that most 4-button residential intercoms won't survive. The high end handles sun-loaded metal enclosures in southern climates — a specification range you rarely see at this price tier in analog entry equipment.
• Dual Relay Configuration: Primary door strike at 5A and a secondary camera relay at 0.5A/125VAC — 1.0A/30VDC. The second relay gives you a discrete switched output for a door-position camera, integrated at the entry without running a separate control circuit back to a panel.

Deployment Considerations:

• Power input is 12–24V AC/DC — confirm your existing transformer's VA rating before wiring. At 12V, you need adequate VA headroom to handle the relay coil plus the phone circuitry simultaneously, especially on long wire runs where voltage drop can push the supply below the 12V threshold under load.
• The onboard relay is rated 5A continuous — watch inrush current on magnetic locks. Many fail-secure mag-locks have a brief inrush spike 2–3× the holding current at energization. Size your lock selection to stay comfortably under 5A peak, or put an external snubber/TVS diode across the lock coil to protect the relay contacts.

This unit is the right specification for a 12-unit apartment building on an analog phone system where the installer needs a single weatherproof device to handle resident call-up, door release, and optional camera switching — without an external relay panel. For buildings above 12 units or VoIP infrastructure, step up to a larger button count panel or the K-1200-IP variant accordingly.
