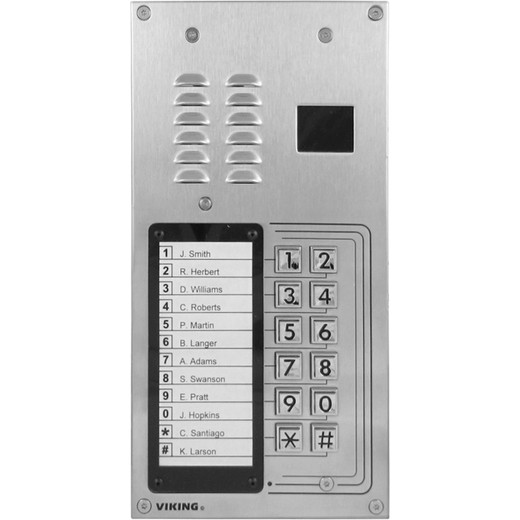

Viking K-1270-EWP 12-Button Apartment Entry Phone w/ Prox Reader EWP

Viking Electronics K-1270-EWP Apartment Entry Phone with Proximity Reader and Enhanced Weather Protection

Overview

The Viking Electronics K-1270-EWP is a 12-button apartment entry phone that consolidates three functions into a single flush-mount panel: tenant speed-dial, proximity card reader access, and a built-in door strike relay. If you're outfitting a multi-tenant residential building and want a clean, single-vendor solution that handles both call-based entry and credential-based access without a separate reader module, this is the unit to evaluate.

The faceplate is fabricated from 14 gauge louvered 316 marine-grade stainless steel with permanent laser-etched legends — the same material grade used in coastal and high-humidity industrial installations. At 5.0" x 5.0" x 2.25", the K-1270-EWP installs flush using the included plastic rough-in box, or surface-mounts using an optional VE-Series surface mount box for retrofit applications where cutting into the wall isn't practical. The Enhanced Weather Protection (EWP) designation means the design is built to handle direct exposure without a separate enclosure.

Power input spans 12 to 24 Volts AC/DC, which gives you flexibility to feed it from a standard door access power supply without a dedicated transformer. If you're adding an optional video camera to the entry point, that subsystem requires 6 to 22 Volts DC — plan your power circuit accordingly.

Explore the full Viking Electronics intercom and entry phone line to see companion models and accessories, or browse the broader access control category for readers, controllers, and door hardware that integrate with this panel.

Key Features

• 12 Speed-Dial Buttons: Each button maps to a tenant or unit — no keypad dialing, no misdialed codes. In a 12-unit building this covers every tenant directly; larger deployments can use directory-style programming to assign multiple units per button.
• Built-In Door Strike Relay: The relay is integrated into the panel itself, eliminating the need for a separate relay module at the door frame. Fewer field components means a cleaner wire run and one less failure point in the access path.
• Proximity Card Reader: Residents with proximity credentials can bypass the call sequence entirely and release the door directly. This is the right setup when you want both attended entry (tenant answers, buzzes in a guest) and unattended credential access on the same hardware.
• 14 Gauge 316 Stainless Steel Faceplate: Marine-grade 316 alloy resists chloride corrosion — relevant at coastal properties, pool entrances, and any covered-outdoor vestibule where 304-grade panels show surface rust within a season. The louvered design aids heat dissipation. Laser-etched legends won't fade or peel the way adhesive labels do after a few years of UV and moisture exposure.
• 12–24V AC/DC Power Input: A wide input range means you can tap an existing door access power supply running anywhere in that window rather than sourcing a specific transformer. This simplifies the retrofit case considerably.
• Enhanced Weather Protection (EWP): The EWP variant is designed for direct outdoor exposure. This is what separates the K-1270-EWP from the base K-1270 — if the panel will see rain, condensation, or sustained humidity without a protective canopy, specify the EWP model.
• Flush or Surface Mount: The included plastic rough-in box supports new-construction flush installs. For surface mount on existing masonry or metal stud walls where you can't cut a clean rough-in, pair with the optional VE-Series surface mount box. Both paths keep the 5.0" x 5.0" footprint consistent.
• Optional Video Camera Support: The panel can accommodate a video camera subsystem (6–22V DC required) for visual confirmation at entry — useful when the building manager or tenants want to see who's at the door before buzzing them in.

Integration and Compatibility

The K-1270-EWP is designed for the Viking Electronics entry and intercom ecosystem. The built-in door strike relay integrates directly with standard electric strikes and electromagnetic locks wired to the panel. The proximity reader accepts standard proximity credentials — verify credential format compatibility with your existing card stock before deployment if you're standardizing across multiple entry points with a different reader brand already on site.

For surface-mount installations, the optional VE-5x10 or other Viking VE-Series surface mount accessories are the correct companions — don't attempt to field-fabricate a back box, as the weatherproofing integrity of the EWP designation depends on the designed enclosure fit. If your project also includes a door access power supply, the 12–24V AC/DC input range means most standard 12V or 24V supplies will drive this unit without an additional transformer.

If you need a VoIP-based entry phone with the same proximity reader and EWP features, the K-1270-IP-EWP is the SIP-based sibling model in the same family — useful when the building's entry system needs to ring to mobile devices or a hosted PBX rather than a dedicated phone line. For guidance on sizing and planning a multi-tenant entry system, see the intercom and entry system selection guide.

Frequently Asked Questions

Q: What is the difference between the K-1270-EWP and the base K-1270 model?

A: The K-1270-EWP adds Enhanced Weather Protection (EWP) for direct outdoor exposure — rain, condensation, and sustained humidity. The base K-1270 is the standard variant; use the EWP model whenever the panel is installed in an unprotected outdoor location or a high-humidity environment. Both share the same 12-button layout, proximity reader, and built-in door strike relay.

Q: What power supply does the K-1270-EWP require?

A: The K-1270-EWP operates on 12 to 24 Volts AC or DC. If you're adding an optional video camera to the entry point, that subsystem requires a separate 6 to 22 Volt DC supply. Most standard door access power supplies in the 12V or 24V range will work with the panel directly.

Q: Can the K-1270-EWP be surface-mounted?

A: Yes. It installs flush using the included plastic rough-in box for new construction, or surface-mounts using an optional VE-Series surface mount box (such as the VE-5x10) for retrofit applications. The panel dimensions are 5.0" x 5.0" x 2.25".

Q: What type of proximity credentials does the built-in reader support?

A: The evidence confirms a built-in proximity card reader is included. Viking's documentation does not specify the exact credential format (e.g., 125kHz HID, 13.56MHz MIFARE) in the available source data — contact Viking Electronics or a pre-sales specialist to confirm compatibility with your existing card stock before ordering.

Q: What is the warranty on the K-1270-EWP?

A: The K-1270-EWP carries a Two Year Limited manufacturer warranty.

Q: Does the K-1270-EWP support a video camera?

A: Yes, an optional video camera can be added to the entry point. The camera subsystem requires 6 to 22 Volts DC power — note this is a separate power requirement from the panel's 12–24V AC/DC main input, so plan your power circuit with both draws in mind.

Marty Allison

The K-1270-EWP is one of those panels that earns its place in apartment entry by handling two distinct access workflows — call-based and credential-based — in a single 5" x 5" stainless footprint without requiring a satellite relay module or a separate reader enclosure. The 14 gauge 316 marine-grade stainless construction is a genuine differentiator for outdoor vestibules in coastal or high-humidity climates where thinner-gauge 304 panels develop surface oxidation within a year or two.

Technical Highlights:

• 316 Stainless Steel Faceplate: Marine-grade alloy with laser-etched legends — no adhesive overlays that peel, no painted legends that fade. At 14 gauge, it's rigid enough to resist casual tampering without feeling like an afterthought.
• 12–24V AC/DC Power Input: A 2:1 voltage range on both AC and DC means you're not sourcing a custom transformer. Most installed door access supplies — 12V or 24V — drive this panel directly off the existing circuit.
• Built-In Door Strike Relay: Integrated into the panel rather than wired in at the door frame as a discrete component. Fewer terminations in the field means fewer failure points and a cleaner pull to the door hardware.

Deployment Considerations:

• If you're adding the optional video camera subsystem, budget a separate 6–22V DC circuit for it — the camera draw is separate from the panel's main 12–24V input and conflating them is a commissioning mistake that's easy to make on paper and frustrating to diagnose after rough-in.
• Verify your existing proximity card format against Viking's spec before ordering at scale. The K-1270-EWP includes a proximity reader, but the available documentation does not enumerate supported credential frequencies — confirm 125kHz vs. 13.56MHz compatibility with your card stock before committing to a multi-door deployment.

This panel is best suited for mid-size residential buildings — 4 to 12 units — where you want a single installed panel to handle both tenant-called entry and resident credential access, particularly in covered-outdoor or semi-exposed vestibule locations where the EWP construction justifies itself versus the base K-1270.
