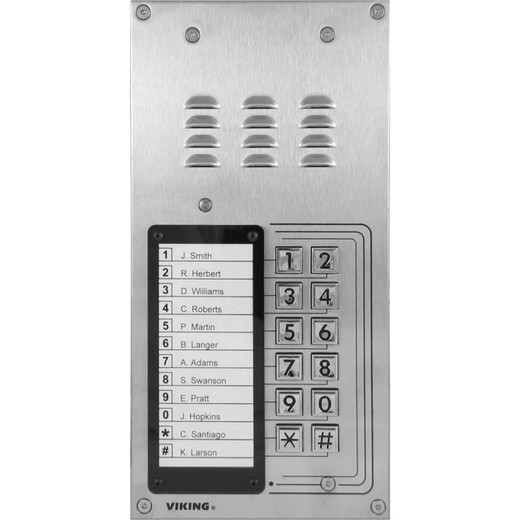

Viking K-1200-EWP 12-Button VoIP Entry Phone IP66/67 PoE Apt

Viking Electronics K-1200-EWP 12-Button VoIP Apartment Entry Phone with Enhanced Weather Protection

The Viking Electronics K-1200-EWP is a SIP-based, two-way handsfree entry phone engineered for apartment buildings and multi-tenant facilities where outdoor exposure, vandal resistance, and reliable credential management are non-negotiable. Built around a 14-gauge louvered 316 stainless steel faceplate with permanent laser-etched graphics, the K-1200-EWP (often searched as K 1200 EWP) is rated IP66 at the enclosure level and IP67 at the keypad — meaning it handles wind-driven rain, pressure washing, and brief submersion without degrading button feel or phone performance. It draws under 6.5W on standard 802.3af PoE Class 2, so you can run it off any managed edge switch without dedicating a high-wattage port.

Overview

This is a 12-button entry phone designed to call individual residences within an apartment complex. Each button maps to a tenant, the resident picks up any SIP phone or softclient, and the built-in door strike relay fires on command — all without a separate door controller. The EWP variant adds a sealed enclosure meeting IP66 humidity tolerance up to 100% (vs. 95% non-condensing on the standard model), making it the correct choice for covered-but-exposed vestibules, coastal installations, or any entry point that sees standing moisture or regular cleaning.

Key Features

• 14-Gauge 316 Stainless Steel Faceplate: 316-grade steel resists chloride corrosion — relevant in coastal or high-salt-air environments where 304-grade faceplates pit and stain within a year. Permanent laser-etched graphics won't fade or peel the way adhesive labels do on multi-year deployments.
• IP66 Enclosure / IP67 Keypad: IP66 means no ingress from powerful water jets — direct rain and hose-down cleaning won't compromise the electronics. IP67 at the keypad adds a submersion rating, so even flooding at the entry slab won't kill the buttons. Standard models are rated only to 95% non-condensing; the EWP enclosure tolerates 100% humidity.
• SIP 2.0 / RFC 3261 Compliance: Registers directly to any standards-compliant SIP PBX — Asterisk, FreePBX, 3CX, Cisco UCM, or a hosted SIP trunk. No proprietary gateway or controller required. This is the difference between a phone system integration and a rip-and-replace every time you upgrade the PBX.
• Built-In Dual SPDT Relay (2A contacts): Two independent relay contacts handle door strikes or gate controllers directly from the phone — no external relay board needed. Each contact is rated at 2 amps, sufficient for most electric strikes and magnetic locks in residential-scale deployments.
• Up to 1,000 Keyless Entry Codes + 1,000 Proximity Card Numbers: Manage up to 1,000 PIN codes and 1,000 Wiegand proximity card credentials simultaneously. That's a full mid-rise apartment building on a single device without an access control server. The 26-bit Wiegand input/output means it integrates with standard card readers and upstream access control panels.
• PoE Class 2 (802.3af, under 6.5W): Single Cat5e/Cat6 cable delivers both power and data. No 24VAC transformer, no conduit for a separate power circuit. This simplifies rough-in significantly in retrofit scenarios where pulling additional conductors is expensive.
• Audio Codecs G.711u, G.711a, G.722: G.722 provides wideband (HD) audio — conversations are noticeably cleaner than narrowband G.711, which matters when a resident is trying to identify a caller through a speakerphone in a noisy lobby. G.711 variants ensure compatibility with legacy SIP endpoints.
• Operating Temperature -40°F to 140°F: This range covers northern climates with hard winters and sun-baked southern installations. Most competing entry phones are rated to 14°F or 23°F minimum — Viking's -40°F rating is a meaningful differentiator for unheated vestibules in cold-weather markets.
• 100BASE-Tx / RJ45 with 14 Gel-Filled Butt Connectors: The gel-filled butt connectors are included specifically to weatherproof field splices — useful when terminating runs in damp junction boxes or when the cable is being extended in a wet environment. Standard keystone/punch-down terminations lack this protection.
• Flush or Surface Mount, 5" x 10" x 2.5": The 5 x 10 inch footprint fits standard rough-in boxes (4.5" x 9.12" x 2.5" rough-in dimension). Flush mount integration into CMU block or drywall entry walls is straightforward with the included rough-in box spec. Surface mount suits retrofit work where cutting into existing masonry isn't practical.
• CE, FCC Part 15, ICES-003 Class A: Regulatory compliance covers US, Canadian, and EU deployments without re-certification. Class A emissions rating is appropriate for commercial installations.

Integration and Compatibility

The K-1200-EWP registers as a standard SIP endpoint (SIP 2.0, RFC 3261) on any compliant IP PBX or hosted SIP platform. The 26-bit Wiegand input supports connecting an external card reader to the phone for two-factor scenarios — PIN plus card. The Wiegand output allows the phone to pass credential data upstream to a third-party access control panel, enabling centralized audit logging without replacing existing door controller infrastructure. The 10/100BASE-Tx network interface requires a switch port with 802.3af PoE; a PoE injector works equally well for single-unit deployments. No proprietary software, no cloud dependency, no licensing fees.

Frequently Asked Questions

Q: What is the difference between the standard K-1200-IP and the K-1200-EWP?

A: The EWP (Enhanced Weather Protection) variant adds a sealed enclosure rated to 100% humidity and IP66, versus the standard model's 95% non-condensing humidity limit. The EWP is the correct choice for any installation with direct moisture exposure, coastal salt air, or regular pressure washing.

Q: Does the K-1200-EWP require a separate power supply?

A: No. It draws under 6.5W via standard 802.3af PoE (Class 2). A single Cat5e or Cat6 cable from a PoE switch or injector handles both power and data. No separate 24VAC transformer or dedicated power circuit is needed.

Q: How many tenants and access credentials can the K-1200-EWP support?

A: Up to 1,000 keyless entry PIN codes and up to 1,000 proximity card numbers simultaneously. The 12 call buttons map to individual residences or tenant groups.

Q: What SIP platforms does the K-1200-EWP work with?

A: It complies with SIP 2.0 RFC 3261, so it registers to any standards-compliant SIP PBX or hosted SIP trunk — including Asterisk, 3CX, FreePBX, Cisco UCM, and most cloud VoIP platforms. No proprietary gateway is required.

Q: What is the operating temperature range of the K-1200-EWP?

A: -40°F to 140°F (-40°C to 60°C), which covers harsh northern winter climates and sun-exposed southern installations without additional heater kits.

Q: Can the K-1200-EWP integrate with an external card reader or access control panel?

A: Yes. It supports 26-bit Wiegand input for connecting an external proximity card reader and 26-bit Wiegand output for passing credential data to an upstream access control panel. The built-in dual SPDT relay contacts (2A each) can directly control electric strikes or magnetic locks.

Jerry Tildsen

The K-1200-EWP is one of the few apartment entry phones I'd specify without hesitation for exposed northern vestibules — that -40°F to 140°F operating range combined with IP66/IP67 ratings means you're not going back to service it in January because condensation killed the keypad electronics. The 316 stainless faceplate is a genuine spec difference, not a marketing distinction: chloride-rich environments (coastal, parking garages with de-icing salt) will pit a 304-grade face within two seasons.

Technical Highlights:

• Dual SPDT 2A Relay Contacts: Two independent relay outputs let you wire a door strike on one and a secondary gate or lobby latch on the other — no auxiliary relay board, no extra panel space. Both contacts are rated at 2 amps, which handles the majority of electric strikes in residential multi-tenant applications.
• 1,000 PIN + 1,000 Wiegand Credential Capacity: For a 100–200 unit building with staff, maintenance, and deliveries, this credential ceiling is rarely a constraint. The 26-bit Wiegand I/O is the practical integration point — feed it from a card reader, pass data upstream to a panel, or run it standalone. Either way, no access control server license is required.
• G.722 Wideband Audio: Most entry phone conversations fail because the resident can't hear clearly enough to make a confident access decision. G.722 HD audio at a 7kHz voice bandwidth is a real improvement over G.711 narrowband — particularly on noisy urban street entries where wind and traffic bleed in through the speaker.

Deployment Considerations:

• The EWP enclosure requires the optional VE-5x10 surface mount box for surface installations — rough-in box dimensions are 4.5" x 9.12" x 2.5", so verify wall depth before specifying flush mount in masonry construction.
• This is a SIP device, not an analog or proprietary intercom — your PBX or hosted platform must support SIP trunk registration and be able to route inbound calls to tenant extensions. If the property currently runs an analog PBX, plan for an ATA or PBX upgrade as part of the project scope.

The K-1200-EWP is the right spec for 20–150 unit apartment buildings in cold or coastal climates where a standard IP entry phone won't survive the first winter, and where the property wants SIP integration into an existing phone system rather than a standalone intercom network.
