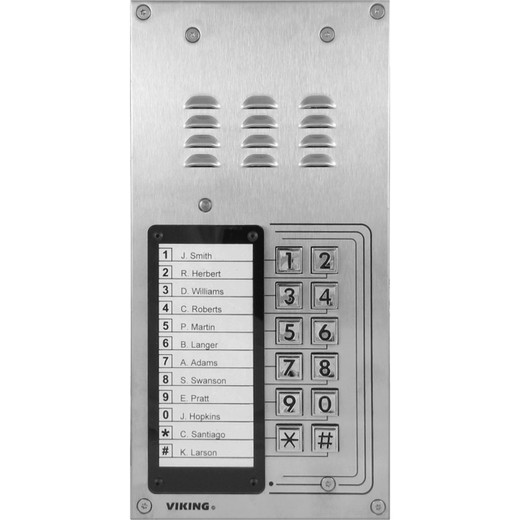

Viking VoiP Entry Phone w/ Keypad 12 # Auto Dialer and Keyless Entry - K-1200-IP

Viking Electronics K-1200-IP VoIP Entry Phone with 12-Button Auto Dialer and Keyless Entry

Overview

The Viking Electronics K-1200-IP is a SIP-based entry phone system built for apartment buildings, gated facilities, and commercial access points where a single device needs to handle call-out, door release, and credential-based entry without a separate access control panel. The K-1200-IP integrates a 12-button auto dialer, keypad entry, and Wiegand proximity card reader into one stainless steel unit — all powered over a single Cat5/6 run via PoE Class 2 (under 6.5W), which eliminates the need for local 110V power at the door. SIP 2.0 (RFC3261) compliance means it registers to any standards-based IP PBX or hosted VoIP platform without proprietary gateways. Audio codec support for G.711u, G.711a, and G.722 delivers wideband (HD) voice quality on compatible SIP infrastructure. The keypad stores up to 1,000 access codes; the Wiegand input handles 26-bit proximity cards for up to 1,000 enrolled credentials — either or both can operate simultaneously. Two SPDT relay contacts (2A each) provide dry-contact outputs to trigger door strikes, magnetic locks, or gate controllers directly. The faceplate is 14-gauge louvered 316 stainless steel with laser-etched graphics — a construction grade appropriate for vandal-exposed entry vestibules. For installations requiring full weather protection, the Viking Electronics K-1200-IP-EWP variant adds IP66 sealing and 100% humidity tolerance; the standard keypad carries an IP67 rating.

Compatibility

Registers as a standard SIP endpoint on any SIP 2.0 (RFC3261) compliant IP PBX or hosted UCaaS platform — tested compatible with Asterisk, FreePBX, and major hosted SIP trunking services. The 26-bit Wiegand input accepts credentials from any standard 26-bit proximity card reader or fob system, and the Wiegand output passes read data downstream to a separate access control panel if needed. Relay contacts interface directly with industry-standard electric door strikes and magnetic locks rated up to 2A. Network connectivity requires a PoE switch or injector supporting IEEE 802.3af — the unit draws under 6.5W (Class 2), so it will not strain budget PoE switches with conservative per-port budgets. Regulatory compliance covers CE, FCC Part 15, and ICES-003 Class A.

Installation Notes

Overall unit dimensions are 5" x 10" x 2.5" (127 mm x 254 mm x 63.5 mm); the rough-in box opening is 4.5" x 9.12" x 25" (114 mm x 232 mm x 64 mm) — verify wall depth before ordering, particularly in hollow-metal door frames where box depth is often constrained. Shipping weight is 4.2 lbs for the standard unit (4.4 lbs for the EWP variant). RJ45 termination uses a 10/100Base-T port; field connections at the entry point use 14 gel-filled butt connectors included for weatherproof wire splices. Operating temperature range is -40°F to 140°F (-40°C to 60°C), making it viable for unheated vestibules and northern climates. Standard model humidity tolerance is 5–95% non-condensing; specify the EWP variant for installations exposed to rain, wash-down, or condensation-heavy environments.
