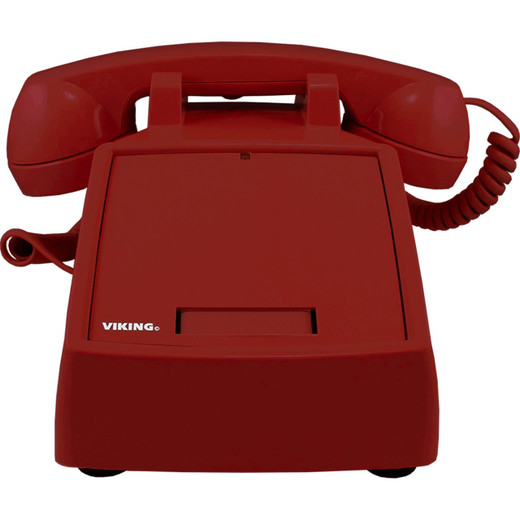

Viking Classic VoIP Desk Phone with Auto Dialer Red Color - K-1900D-IP

Viking Electronics K-1900D-IP VoIP Desk Phone with Auto Dialer

Overview

The Viking Electronics K-1900D-IP is a SIP 2.0 VoIP desk phone engineered for single-purpose emergency and utility calling — it auto-dials a pre-programmed number the moment the handset is lifted. No menu navigation, no extension lookup, no user training required. Drop it on a lobby counter, mount it in a parking structure, or set it at a guard post and every call goes exactly where it needs to go. The K-1900D-IP (often searched as K 1900D IP) draws under 4 watts over standard PoE, so a single Cat5e cable handles both power and the network connection — no outlet required at the phone location.

This is the red color variant — visually distinct from ambient office equipment, which matters in emergency or assistance contexts where the phone needs to be found quickly. For a wall-mount configuration in the same product line, see the Viking VoIP phone catalog.

Key Features

• Auto-Dial on Handset Lift: Programs a 1–20 digit destination number that dials automatically every time the handset is picked up. No keypad interaction needed — eliminates user error in high-stress or limited-literacy environments like loading docks, parking lots, or visitor entry points.
• PoE Class 1 (<4W): Draws less than 4 watts — the lowest PoE class. A standard 802.3af switch port powers it without impacting your switch's total power budget meaningfully. No wall transformer, no outlet location planning. Single RJ45 cable handles everything up to 100 meters (328 ft) from the switch.
• Wide Operating Temperature Range (-40°F to 140°F): Rated from -40°C to +60°C covers unheated parking garages, loading docks, warehouse exteriors, and outdoor kiosks in virtually any North American climate. Most SIP desk phones are rated to roughly 32°F (0°C) — this one operates where they fail.
• Hearing Aid Compatible Amplified Handset: The handset includes a thumbwheel volume control and is hearing aid compatible — relevant for ADA compliance in public-access installations and for noisy industrial environments where callers may need higher receive volume.
• Adjustable Ring Volume and Cadence: Ring behavior is field-configurable, which matters when the phone is placed in high-ambient-noise environments (warehouses, mechanical rooms) or where a quieter ring is needed to avoid disturbing adjacent spaces.
• HD Audio via G.722 Codec: Supports G.722 wideband audio alongside G.711u and G.711a. On a network that supports it, wideband audio noticeably improves intelligibility in noisy environments — the difference between a caller understanding directions clearly versus having to repeat themselves twice.
• SIP 2.0 RFC3261 Compliance: Registers natively with any standards-compliant SIP PBX or hosted SIP platform. No proprietary gateway, no brand lock-in — pairs with Cisco UCM, FreePBX, 3CX, Asterisk, or any SIP-based VoIP phone system your facility already runs.
• 100BASE-Tx Network Interface: Single RJ45 port operating at 10/100 Mbps. No passthrough port — this is a single-purpose endpoint, not a desktop daisy-chain device. Plan accordingly in locations where a PC also needs network access.
• PC-Programmable Configuration: The unit programs from any PC over the network, eliminating the need to physically access the phone for initial setup or reprogramming — practical when phones are mounted in hard-to-reach locations.

Integration & Compatibility

The K-1900D-IP integrates with any SIP 2.0 RFC3261-compliant platform over a standard 100BASE-Tx Ethernet connection. Supported audio codecs are G.711u, G.711a, and G.722 — confirm your PBX or hosted platform supports at least one of these (virtually all do). The phone draws power via IEEE 802.3af PoE; no injector is needed if your PoE switch provides 802.3af on the port. Regulatory certifications include CE, FCC Part 15, and ICES-003 Class A, covering US, Canadian, and European deployments. The unit is not a multi-line or feature phone — it is purpose-built for single-destination auto-dial applications. If your deployment requires keypad access for multi-destination dialing or intercom ring-down to multiple zones, evaluate other models in the Viking Electronics VoIP line.

Frequently Asked Questions

Q: Does the K-1900D-IP require a separate power supply?

A: No. The K-1900D-IP draws power via IEEE 802.3af Power over Ethernet (PoE Class 1, under 4W). A single RJ45 cable from a PoE-capable switch or midspan injector handles both power and network connectivity — no AC outlet is needed at the phone location.

Q: What SIP platforms is the K-1900D-IP compatible with?

A: The K-1900D-IP complies with SIP 2.0 RFC3261 and works with any standards-compliant SIP PBX or hosted SIP platform — including Cisco UCM, FreePBX, 3CX, Asterisk, and most hosted VoIP providers. There is no proprietary protocol requirement.

Q: Can the K-1900D-IP be used outdoors or in unheated spaces?

A: Yes. It is rated for -40°F to 140°F (-40°C to 60°C) operating temperature with 5–95% non-condensing humidity tolerance. This covers unheated parking structures, loading docks, and outdoor kiosks in most North American climates. Verify that the enclosure or housing provides adequate weather protection if the phone is exposed to direct precipitation.

Q: How many digits can the auto-dial number be?

A: The auto-dial destination supports 1–20 digits, which accommodates local extensions, full PSTN numbers with area codes, and international numbers depending on your dial plan.

Q: How is the K-1900D-IP programmed?

A: Programming is done from any PC over the network connection — no physical access to the phone is required after initial installation. This is particularly useful when phones are mounted in elevated or otherwise hard-to-access locations.

Q: What audio codecs does the K-1900D-IP support?

A: The phone supports G.711u, G.711a, and G.722. G.722 provides HD wideband audio when your PBX and network support it, improving call clarity in noisy environments.

Jerry Tildsen

The K-1900D-IP earns its place in emergency and utility deployments primarily because of two specs working together: the -40°F to 140°F operating range and the sub-4W PoE Class 1 draw. Most SIP desk phones can't operate below freezing — this one runs in conditions that would kill standard office VoIP endpoints, and it does it from a single Cat5e cable with no local power requirement.

Technical Highlights:

• Auto-Dial (1–20 Digit): Handset lift triggers the call immediately — no keypad, no menu. Programmable destination up to 20 digits covers extensions, DID numbers, and international formats. Eliminates user error entirely for single-destination use cases.
• PoE Class 1 (<4W, 802.3af): At under 4 watts, this phone barely registers on a switch's power budget. A 48-port 370W PoE switch can theoretically power 90+ of these — relevant for large parking or industrial deployments with many courtesy phones on a single closet switch.
• G.722 Wideband Audio: When the PBX negotiates G.722, callers get noticeably clearer audio — meaningful in high-ambient-noise environments like loading docks or mechanical rooms where word intelligibility on a call can determine whether an emergency is handled correctly.

Deployment Considerations:

• Programming over the network from any PC is convenient, but confirm your SIP platform supports auto-provisioning or plan for initial manual web-UI configuration per unit — there is no passthrough port, so co-locating a PC requires a separate switch port or a small unmanaged switch at the location.
• The phone is rated for humidity up to 95% non-condensing — outdoor kiosk or enclosure installations in humid climates are feasible, but direct precipitation exposure requires an appropriate NEMA-rated enclosure; the phone itself has no ingress protection rating listed in the evidence.

This phone is the right call — literally — for parking structure emergency stations, warehouse assistance points, and lobby courtesy phones where a red, impossible-to-miss device that dials one number instantly is exactly what the deployment requires. It is not the right device for any scenario requiring multi-line access, keypad dialing, or feature-phone functionality.
