Middle Atlantic 1000VA 120V UPS Rlnk Bank Control - UPX-RLNK-1000R-2

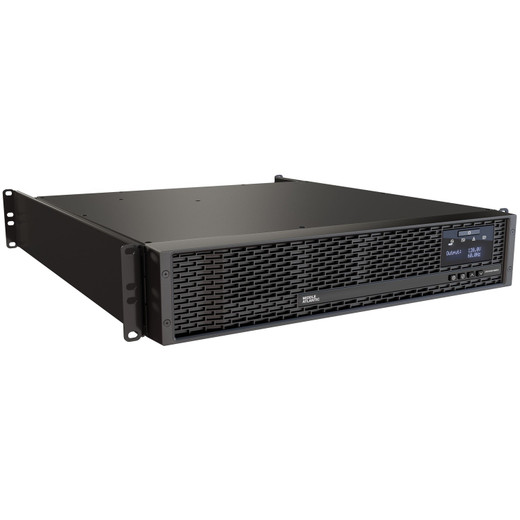

Middle Atlantic UPX-RLNK-1000R-2 1000VA Line-Interactive UPS with RackLink Bank Control

Overview

The Middle Atlantic UPX-RLNK-1000R-2 is a 1000VA / 900W line-interactive rack UPS designed for security head-end and AV equipment rooms where individual outlet control and remote network management are non-negotiable. At 2RU, it delivers battery backup, bank-level outlet switching, and a built-in network card in a single chassis — a practical alternative to stacking a basic UPS alongside a separate PDU. If you're speccing rack power for a mid-size NVR closet, surveillance head-end, or AV rack in a commercial building, this is a purpose-built Middle Atlantic solution worth evaluating alongside the broader Middle Atlantic power line.

Key Features

• 1000VA / 900W NEXSYS Capacity: 900W of real power means you can back up a multi-channel NVR, a PoE switch, and a few ancillary devices simultaneously — the VA-to-W ratio of 0.9 is above average for line-interactive units, leaving less headroom gap than budget alternatives.
• Line-Interactive Topology: Automatic Voltage Regulation (AVR) corrects browndowns and overvoltages without switching to battery. In commercial buildings where utility voltage drifts, this extends battery life and keeps connected equipment from rebooting during minor sags.
• Bank-Level Outlet Control via RackLink: The 8 NEMA 5-15R outlets are organized into switchable banks. You can remotely power-cycle individual banks — reboot a frozen NVR or IP access control panel without touching the rack. For remote or unmanned equipment rooms, this is the spec that saves a truck roll.
• Built-In Network Card Included: Unlike base UPS models that require an add-on card purchase, the UPX-RLNK-1000R-2 ships with a network management card already installed. Remote monitoring, outlet scheduling, and load reporting are available out of the box over the network.
• MOV Surge Protection: Metal oxide varistor surge suppression is integrated on all outlets — no separate surge strip needed in the rack. Keeps downstream gear protected from transient spikes without adding rack depth.
• 2RU / 19-inch Rack Form Factor: At 16 inches deep and 19 inches wide, it fits standard 19-inch equipment racks and is compatible with rack depths between 22 and 36 inches. Confirm your rack's usable depth before ordering — the unit itself is 16 inches but requires clearance for cable management behind.
• NEMA 5-15P / 5-15R Plug and Receptacles: Standard 15A residential/commercial plug and outlets. If your downstream equipment requires L5-15 or L5-20 twist-lock connections, plan for appropriate outlet adapters — the UPS does not include locking receptacles.
• 120VAC Input / 110-127VAC Output at 15A: Sized for a standard 15A branch circuit. If your rack load is approaching 15A total, plan a second circuit or a higher-capacity unit — running a UPS near its continuous ampere limit shortens battery life.
• Operating Range 32°–104°F (0°–40°C): Standard commercial equipment room range. Not rated for outdoor or unconditioned-space enclosures — this is a climate-controlled room unit.
• FCC / RoHS / CSA Compliance: Meets FCC emissions requirements and RoHS restricted substances directive. TAA compliant: No — federal procurement officers should note this is not TAA-compliant for GSA schedule or DOD use.

Integration and Compatibility

The UPX-RLNK-1000R-2 integrates into standard rack power planning for network video recorders, managed switches, and access control panels. The included network card supports remote UPS management alongside your existing network infrastructure. For complete rack power distribution planning, review a rack power planning guide to confirm load calculations before deployment. Pair with a compatible UPS battery replacement for planned maintenance cycles.

Frequently Asked Questions

Q: Is the UPX-RLNK-1000R-2 TAA compliant for federal procurement?

A: No. The UPX-RLNK-1000R-2 is not TAA compliant (Country of Origin: China). It is not suitable for GSA schedule or federal acquisitions requiring TAA compliance.

Q: Does the UPX-RLNK-1000R-2 include a network management card?

A: Yes. A network card is included — network-enabled management and RackLink bank outlet control are available out of the box with no additional card purchase required.

Q: How many outlets does the UPX-RLNK-1000R-2 have, and can they be controlled individually?

A: The unit has 8 NEMA 5-15R outlets organized into switchable banks. Control is bank-level (groups of outlets), not per individual outlet.

Q: What rack depth is required for the UPX-RLNK-1000R-2?

A: The unit body is 16 inches deep and requires a rack with mounting depth between 22 and 36 inches. Confirm usable rack depth including cable management space before ordering.

Q: What is the runtime on battery for the UPX-RLNK-1000R-2?

A: Runtime is not specified in the available manufacturer data and depends on the connected load. At or near full 900W load, runtime will be limited. Consult the manufacturer's runtime curve for your specific load to size backup time appropriately.

Q: What surge protection type does the UPX-RLNK-1000R-2 use?

A: The UPX-RLNK-1000R-2 uses MOV (Metal Oxide Varistor) surge protection on its outlets.

Eden Phillips

The spec I keep coming back to on the UPX-RLNK-1000R-2 is the bank-controlled outlet architecture combined with the included network card — at 1000VA / 900W, this unit is sized right for a single-rack surveillance head-end, and the RackLink remote bank switching means you can reboot a locked-up NVR or access controller from your desk rather than dispatching a tech. That combination in a 2RU chassis is genuinely useful in unmanned or after-hours equipment rooms.

Technical Highlights:

• 900W Real Power (0.9 Power Factor): Most 1000VA line-interactive UPS units in this class run a 0.6–0.7 power factor, delivering 600–700W actual. The UPX-RLNK-1000R-2's 0.9 factor means 900W usable — enough headroom for an NVR, a managed PoE switch, and access control hardware without running near-limit.
• Line-Interactive AVR Topology: Brownout and overvoltage correction happens without switching to battery, which matters in commercial buildings with aging electrical infrastructure. Battery cycles are preserved for actual outages, not routine voltage fluctuations.
• Network Card Included (No Upsell): A network management card is in the box — remote outlet scheduling, load monitoring, and bank switching are live on first boot. That is an $80–$150 add-on cost eliminated on day one.

Deployment Considerations:

• Rack depth compatibility: the unit is 16 inches deep but requires mounting rails at 22–36 inches. Shallow or mid-depth wall-mount enclosures under 22 inches will not fit this unit — verify before quoting.
• The NEMA 5-15P plug and 15A rating set a hard ceiling on branch circuit load. If your rack already draws 10–12A from other equipment, plan a dedicated 20A circuit and note this unit cannot use it directly without an adapter — the plug is 5-15, not 5-20.

The UPX-RLNK-1000R-2 fits cleanest in a commercial security head-end or AV rack where remote outlet control and battery backup need to coexist in a tight 2RU footprint — particularly where the integrator won't have regular on-site access and needs remote reboot capability without a separate networked PDU.
