Middle Atlantic 1000VA 120V UPS Rlnk Outlet Control. - UPX-RLNK-1000R-8

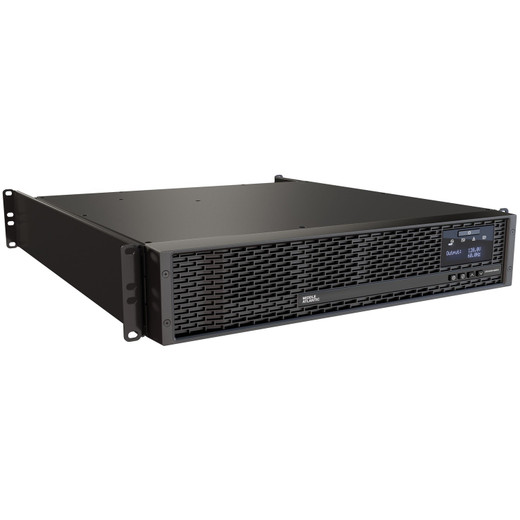

Middle Atlantic UPX-RLNK-1000R-8 1000VA Rack UPS with RackLink Outlet Control

The Middle Atlantic UPX-RLNK-1000R-8 is a 1000VA/900W line-interactive rack UPS built for AV systems integrators, security infrastructure deployments, and IT closets where per-outlet remote control matters as much as battery backup. At 2RU and 16 inches deep, it fits standard rack profiles without consuming the depth of a traditional 3RU UPS, and the included network card means you can monitor and control it from day one — no extra card purchase required.

Overview

The NEXSYS UPS platform from Middle Atlantic's power protection line takes a different approach from commodity UPS units: it ships with a RackLink network card already installed, supports individual outlet-level on/off switching across all 8 receptacles, and uses a line-interactive topology that handles the voltage sag and surge events common in commercial electrical environments without switching to battery for every minor fluctuation. The 900W real-power rating (not just the 1000VA apparent-power headline) means you can load it to 900W of actual draw and still get full runtime — a distinction that matters when calculating runtime for real security equipment loads. With individual outlet control via RackLink, you can remotely reboot a frozen NVR, sequence power-up order on startup, or shed non-critical loads during a power event, all from a browser or SNMP console.

Key Features

• 1000VA / 900W Line-Interactive Topology: Line-interactive UPS continuously regulates voltage through AVR (automatic voltage regulation) without switching to battery on every sag or surge. This extends battery life significantly compared to standby/offline UPS designs — relevant in buildings with older or noisy electrical infrastructure where brief brownouts are routine.
• 8 Individually Switched NEMA 5-15R Outlets: Each of the 8 receptacles can be toggled on or off independently via RackLink software. This means a hung NVR or IP switch can be remotely power-cycled without touching the rack — useful for unmanned equipment rooms or remote sites where a truck roll costs real money.
• RackLink Network Card Included (No Upsell): The network card is factory-installed. Network-enabled out of the box means you can configure SNMP traps, email alerts, and scheduled outlet actions on day one. Most competing platforms charge separately for this capability — here it is included in the base SKU.
• 2RU / 16-Inch Depth Footprint: At 19 inches wide × 16 inches deep × 3.46 inches tall, the UPX-RLNK-1000R-8 fits racks with a minimum mounting depth of 22 inches and a maximum of 36 inches. Confirm your rack's usable interior depth before ordering — the unit itself is 16 inches but needs clearance for cabling at both ends.
• MOV Surge Protection: Metal-oxide varistor surge protection is integrated on all outlets. In a rack power protection context, MOV is effective for transient spikes; it is not a substitute for a proper surge suppressor on high-value loads, but it handles the typical switching transients and lightning coupling events seen in commercial installations.
• 36VDC Internal Battery Bus: The internal battery operates at 36VDC, which is typical for this VA class and supports standard hot-swap battery replacement when replacement packs are available. Plan battery replacement at the manufacturer's recommended interval — runtime degrades gradually and is not always obvious until a power event exposes it.
• 15A / 120VAC Input via NEMA 5-15P: Draws from a standard 15-amp 120VAC circuit via a 6-foot cord. If your rack circuit is 20A, you can run this UPS without a step-down adapter. If you're loading close to the 15A input max, wire it to a dedicated 15A or 20A circuit to avoid nuisance tripping on the branch breaker.
• Operating Temperature 32°–104°F (0°–40°C): Rated for standard conditioned equipment room environments. Not rated for unconditioned spaces or outdoor enclosures — if your installation runs above 40°C ambient (common in outdoor security cabinets in summer), this unit is not the right fit without active cooling in the enclosure.
• FCC / CSA / RoHS Compliant: Carries FCC, CSA, and RoHS certifications. Note: TAA compliant is confirmed No for this SKU — if your project has TAA/Buy American procurement requirements, this unit does not qualify.

Integration and Compatibility

The UPX-RLNK-1000R-8 integrates with RackLink-compatible management software for outlet scheduling, power event logging, and SNMP-based monitoring. The 8 NEMA 5-15R receptacles accommodate standard security and AV equipment plugs directly. If you're deploying this alongside network video recorders or PoE switches, sequence the NVR last in the power-up chain (after the switch) to avoid NVR boot errors from missing network at startup — RackLink's outlet delay scheduling handles this without manual intervention. The included network card eliminates the need for a separate USB or serial management connection, which simplifies rack wiring in tight installs. For deployments that need higher capacity or additional outlets, rack UPS and power distribution units in the Middle Atlantic lineup offer step-up configurations in the same NEXSYS platform family.

Frequently Asked Questions

Q: What is the real-power (watt) rating of the UPX-RLNK-1000R-8, and does that differ from the VA rating?

A: Yes. The UPX-RLNK-1000R-8 is rated 1000VA apparent power and 900W real power. Load calculations should be based on the 900W figure — exceeding it will trigger overload protection even if you're under 1000VA.

Q: Does the UPX-RLNK-1000R-8 include a network card, or is it sold separately?

A: The network card is included. The unit ships network-enabled with RackLink individual outlet control active out of the box — no additional card purchase is required.

Q: Is the UPX-RLNK-1000R-8 TAA compliant for government or federally funded projects?

A: No. TAA Compliant is confirmed No for this SKU. If your project has TAA or Buy American procurement requirements, this unit does not qualify and you should specify an alternate model.

Q: What rack depth is required to mount the UPX-RLNK-1000R-8?

A: The unit body is 16 inches deep. Rack mounting depth must be between 22 inches (minimum) and 36 inches (maximum) to accommodate the chassis and mounting hardware. Measure your rack's usable interior depth before ordering.

Q: Can I individually control each outlet on the UPX-RLNK-1000R-8 remotely?

A: Yes. All 8 NEMA 5-15R outlets support individual on/off switching via the RackLink network interface. You can power-cycle, schedule, or shed individual outlets remotely without physical access to the rack.

Q: What is the operating temperature range of the UPX-RLNK-1000R-8?

A: 32°F to 104°F (0°C to 40°C). This unit is rated for conditioned equipment room environments only — it is not suitable for unconditioned or outdoor enclosures without active cooling to maintain ambient below 40°C.

Jerry Tildsen

I spec the UPX-RLNK-1000R-8 into security and AV rack builds specifically because the RackLink network card ships installed — at 1000VA/900W with 8 individually switched outlets and full network manageability on day one, it removes the usual "I need to add a management card later" conversation from the commissioning checklist. The 900W real-power ceiling is the number that drives my load calculations, not the 1000VA headline.

Technical Highlights:

• 900W Real Power at 1000VA: The 90% power factor means nearly every watt of apparent capacity is usable real power — better than the 0.6–0.7 PF common on entry-level UPS units, which can leave 30–40% of VA capacity unavailable for resistive/switching loads like NVRs and PoE switches.
• Individual Outlet Switching via RackLink: All 8 NEMA 5-15R receptacles are independently controllable over the network. For a remote security closet, this means a frozen NVR gets a remote reboot instead of a site visit — a concrete operational cost reduction on multi-site deployments.
• Line-Interactive Topology with MOV Surge: Line-interactive AVR handles the browndowns and overvoltages common in commercial buildings without burning battery cycles on minor events. MOV on every outlet adds transient protection. This combination extends both battery life and connected-equipment life versus a basic standby UPS.

Deployment Considerations:

• Rack mounting depth must be confirmed at 22–36 inches of usable interior space. The unit body is 16 inches but the total depth envelope with cable management at front and rear can exceed that — measure before you rack it.
• TAA Compliant is No for this SKU. Flag this early on any government, DoD, or E-rate project — substituting after procurement is approved is painful.

The UPX-RLNK-1000R-8 is the right call for a 4–8 device security or AV rack in a conditioned equipment room where remote outlet management and network monitoring need to be operational on day one without add-on cards or secondary management hardware.
