Middle Atlantic Nexsys 1000VA 15 Amp UPS Backup Power System Bank Outlet Control - UPX-1000R-2

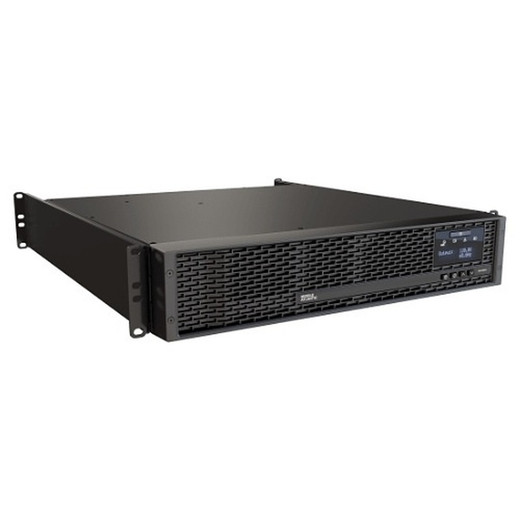

Middle Atlantic UPX-1000R-2 NEXSYS 1000VA Rack UPS with Bank Outlet Control

The Middle Atlantic UPX-1000R-2 is a 1000VA / 900W line-interactive rack UPS built for AV and security infrastructure racks where you need outlet-level control, clean power conditioning, and a 2RU footprint that doesn't eat your whole bay. Rated at 15 amps on a NEMA 5-15P plug, it fits standard 120 VAC branch circuits without requiring a dedicated 20-amp run — the right spec for most telecom closets and security head-end racks. If you're deploying Middle Atlantic power infrastructure in a multi-camera or multi-recorder system, this unit gives you the conditioned backup capacity to ride through short outages and controlled shutdown time for longer ones.

Overview

The UPX-1000R-2 (often searched as UPX 1000R 2) uses a line-interactive topology, meaning the automatic voltage regulator (AVR) corrects minor sags and surges without switching to battery — which is important for rack gear that's sensitive to repeated micro-transfers. The unit accepts 120 VAC input and outputs 110–127 VAC regulated AC, backed by MOV surge protection. It occupies 2 rack units and mounts in enclosures with a mounting depth between 22 and 36 inches (91.4 cm max), which covers the majority of Middle Atlantic and competitive 2-post and 4-post rack configurations. The 4 mounting points keep it secured under load without flex.

Key Features

• 1000VA / 900W Capacity: At 900 true watts, this unit can carry a loaded NVR, a managed PoE switch, and auxiliary gear simultaneously — enough headroom for a complete small-to-mid security head-end without chaining multiple UPS units.
• Line-Interactive Topology: AVR corrects voltage without transferring to battery on every grid fluctuation. In buildings with noisy utility power, this extends battery life significantly compared to standby-topology units that cycle the battery constantly.
• Bank Outlet Control: All 8 NEMA 5-15R receptacles are managed as a bank, allowing you to sequence power-on order or remotely cut loads without physically pulling cables — useful during maintenance windows or staged shutdowns.
• Network-Enabled (No Card Included): The unit supports network management, but the network card is not included in the base configuration. Budget for the optional card separately if remote SNMP monitoring or automated shutdown integration is required.
• MOV Surge Protection: Metal oxide varistor protection is present at the outlet bank — absorbs transient spikes before they reach connected equipment. This is baseline protection; it's not a substitute for whole-building surge suppression at the panel.
• 36 VDC Internal Battery Bus: The 36 VDC battery architecture is Middle Atlantic's NEXSYS platform spec. Replacement batteries are platform-matched, which simplifies serviceability versus sourcing generic lead-acid packs.
• 2RU / 19-inch Rackmount: Standard 19-inch width (48.3 cm) and 3.46-inch height (8.8 cm) means it drops into any standard EIA rack without adapter hardware. At 44.1 lbs (20 kg) product weight, ensure your rack's weight rating accommodates it — this is a dense unit.
• 6 ft Power Cord with NEMA 5-15P: The 6-foot (1.8 m) cord reaches most rack-adjacent wall outlets or PDU inputs without an extension. The 5-15P plug is standard 15-amp — no special receptacle required at the facility end.
• Operating Range 32°–104°F (0°–40°C): Standard commercial temperature range. Not rated for unheated outdoor enclosures or high-density hot-aisle environments running above 40°C without supplemental cooling.
• RoHS / FCC / CSA Compliant: Meets FCC, CSA, and RoHS requirements. TAA compliant: No — federal procurement officers should note this unit is manufactured in China and does not qualify for TAA-restricted contracts.

Integration and Compatibility

The UPX-1000R-2 fits within the broader rack UPS and power management category and is designed to integrate into Middle Atlantic rack enclosures, though its 19-inch standard form factor makes it compatible with any EIA-310 compliant rack. The mounting depth range of 22–36 inches accommodates both shallow AV racks and deeper IT-style enclosures. For deployments where automated NVR shutdown on power loss is required, the optional network card enables SNMP-based communication with network video recorders and VMS platforms that support UPS signaling. Pair this unit with a rack power distribution unit downstream if you need more than 8 outlets or mixed 20-amp receptacles. Review your PoE switch draw against the 900W real-watt ceiling before finalizing load calculations — PoE switches under full load can consume 150–400W depending on port count and device types.

Frequently Asked Questions

Q: What is the true watt capacity of the UPX-1000R-2?

A: The UPX-1000R-2 is rated at 900 watts (1000VA). Plan your connected load to stay at or below 900W to maintain proper runtime and avoid overload conditions.

Q: Is the UPX-1000R-2 TAA compliant for federal or government procurement?

A: No. The UPX-1000R-2 is TAA Non-Compliant and is manufactured in China. It does not qualify for contracts requiring TAA-compliant products under the Trade Agreements Act.

Q: Does the UPX-1000R-2 include a network management card?

A: No. The unit is network-enabled, meaning it has the capability to accept a network card, but the card is not included in the base UPX-1000R-2 configuration. The optional network card must be purchased separately for SNMP monitoring and remote management.

Q: What rack depth range does the UPX-1000R-2 support?

A: The UPX-1000R-2 mounts in racks with a depth between 22 inches (minimum) and 36 inches (91.4 cm maximum). Standard IT and AV rack enclosures within that range are compatible.

Q: How many outlets does the UPX-1000R-2 provide and how are they controlled?

A: The unit provides 8 NEMA 5-15R receptacles managed as a single bank. Outlet control type is bank-level — all outlets in the bank are controlled together, not individually per-outlet.

Q: What is the warranty on the UPX-1000R-2?

A: Based on available product documentation, the UPX-1000R-2 includes a manufacturer warranty. The battery carries a 2-year warranty; the full product warranty term is 3 years per manufacturer specification. Confirm current terms with your purchase documentation.

Eden Phillips

The spec I always check first on a rack UPS is real watts versus VA — and the UPX-1000R-2 hits 900W against its 1000VA rating, which is a healthy 0.9 power factor. That's not padding; it means when you stack a loaded NVR, a PoE switch drawing 200W, and a managed switch, you have room to work without immediately redlining the unit.

Technical Highlights:

• Line-Interactive AVR: Corrects voltage sags and surges without a battery transfer — in facilities with poor utility power quality, this prevents the constant battery cycling that kills standby-topology units prematurely.
• Bank Outlet Control on 8x NEMA 5-15R: All 8 receptacles controlled as a group, which lets you kill non-critical loads (monitors, auxiliary gear) while keeping NVRs and switches alive — straightforward to wire if you think through load segregation before installation.
• 36 VDC NEXSYS Battery Platform: The proprietary 36V battery bus means replacement packs are platform-specific — serviceability is predictable, but stock a spare battery if this unit is in a mission-critical head-end running 24/7.

Deployment Considerations:

• At 44.1 lbs (20 kg) product weight and a mounting depth requirement of 22–36 inches, verify your rack's weight capacity and depth before ordering — a 2RU slot doesn't help if the enclosure is only 18 inches deep or already near weight limit.
• The network card is NOT included — if your VMS or NVR platform relies on UPS SNMP signaling for graceful shutdown, budget and order the optional card at the same time as this unit, or you'll have a gap in your power-loss response plan.

The UPX-1000R-2 is the right call for a security integrator building a head-end rack with 4–8 IP cameras feeding a mid-range NVR and a PoE switch — the 900W ceiling and 8-outlet bank cover that load profile cleanly, and the line-interactive topology keeps the battery in reserve rather than burning it on routine voltage fluctuations.
